Intelligent Assembly Solutions

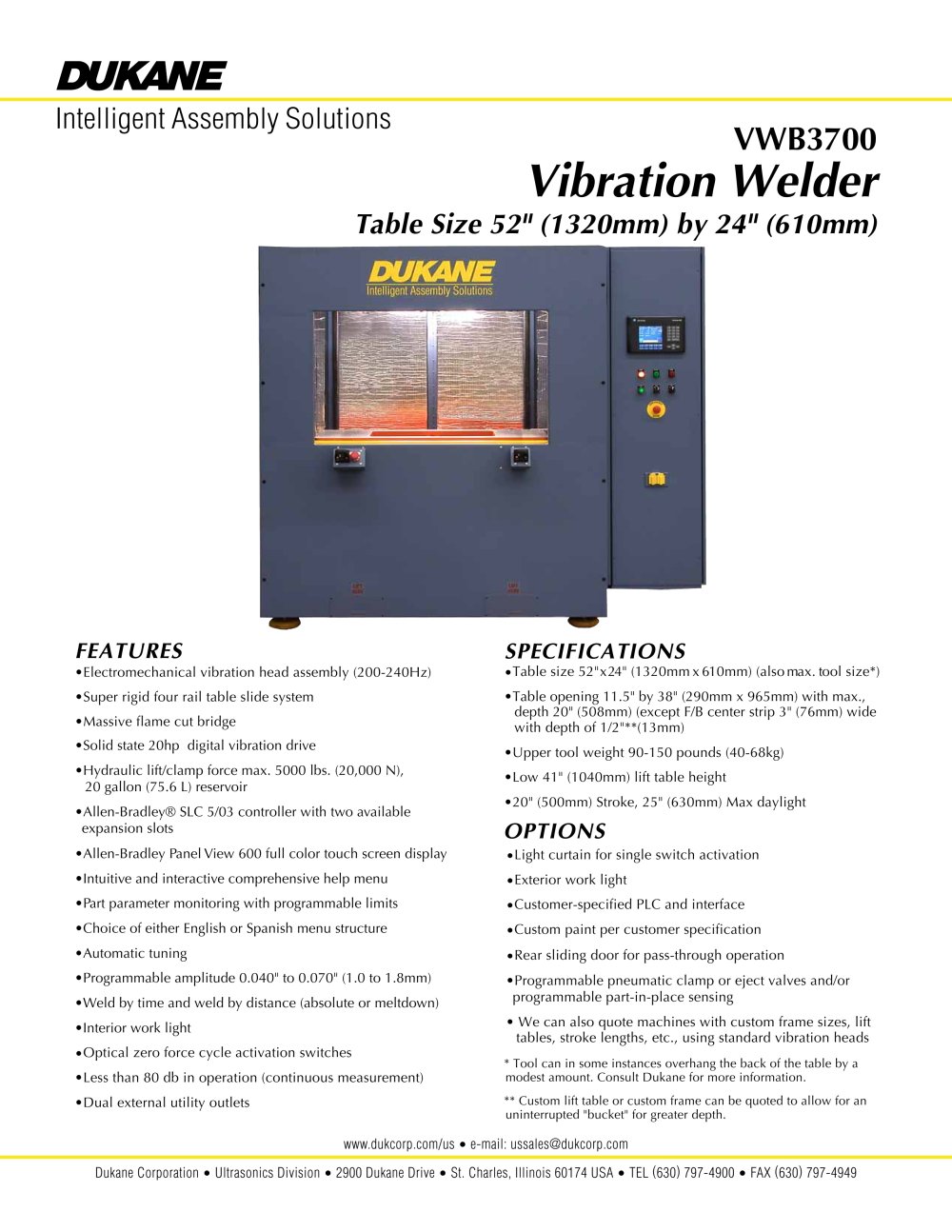

VWB3700

Model 3700 Vibration Welder - 15475 Vibration Welder

Table Size 52" (1320mm) by 24" (610mm)

FEATURES SPECIFICATIONS

• Electromechanical vibration head assembly (200-240Hz)•Super rigid four rail table slide system•Massive flame cut bridge • Table size 52" x 24" (1320mm x 610mm) (also max. tool size*) • Table opening 11.5" by 38" (290mm x 965mm) with max.,depth 20" (508mm) (except F/B center strip 3" (76mm) wide with depth of 1/2"**(13mm) • Upper tool weight 90-150 pounds (40-68kg) • Solid state 20hp digital vibration drive • Low 41" (1040mm) lift table height•20" (500mm) Stroke, 25" (630mm) Max daylight • Hydraulic lift/clamp force max. 5000 lbs. (20,000 N),20 gallon (75.6 L) reservoir • Allen-Bradley® SLC 5/03 controller with two availableexpansion slots

OPTIONS

• Allen-Bradley Panel View 600 full color touch screen display • Light curtain for single switch activation • Intuitive and interactive comprehensive help menu • Exterior work light • Part parameter monitoring with programmable limits • Customer-specified PLC and interface • Choice of either English or Spanish menu structure • Custom paint per customer specification • Automatic tuning • Rear sliding door for pass-through operation • Programmable amplitude 0.040" to 0.070" (1.0 to 1.8mm) • Programmable pneumatic clamp or eject valves and/orprogrammable part-in-place sensing • Weld by time and weld by distance (absolute or meltdown) • Interior work light•Optical zero force cycle activation switches•Less than 80 db in operation (continuous measurement)•Dual external utility outlets • We can also quote machines with custom frame sizes, lifttables, stroke lengths, etc., using standard vibration heads
* Tool can in some instances overhang the back of the table by amodest amount. Consult Dukane for more information.** Custom lift table or custom frame can be quoted to allow for anuninterrupted "bucket" for greater depth. www.dukcorp.com/us • e-mail: ussales@dukcorp.com Dukane Corporation • Ultrasonics Division • 2900 Dukane Drive • St. Charles, Illinois 60174 USA • TEL (630) 797-4900 • FAX (630) 797-4949
