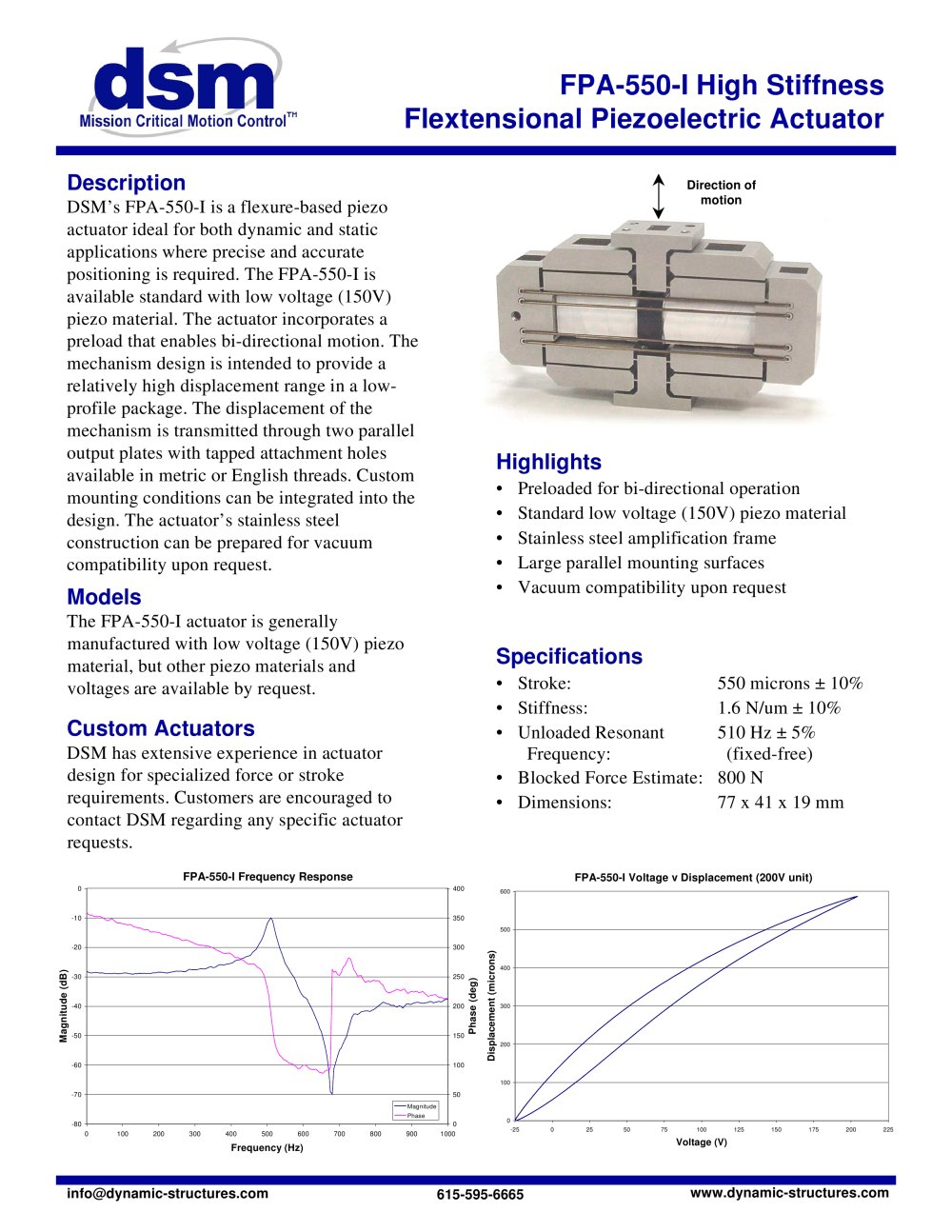

DSM's FPA-550-I is a flexure-based piezo actuator ideal for both dynamic and static applications where precise and accurate positioning is required. The FPA-550-I is available standard with low voltage (150 V) piezo material. The actuator incorporates a preload that enables bi-directional motion. The mechanism design is intended to provide a relatively high displacement range in a low-profile package. The displacement of the mechanism is transmitted through two parallel output plates with tapped attachment holes available in metric or English threads. Custom mounting conditions can be integrated into the design. The actuator's stainless steel construction can be prepared for vacuum compatibility upon request.

The FPA-550-I actuator is generally manufactured with low voltage (150V) piezo material, but other piezo materials and voltages are available by request.

DSM has extensive experience in actuator design for specialized force or stroke requirements. Customers are encouraged to contact DSM regarding any specific actuator requests.

I

• Preloaded for bi-directional operation

• Standard low voltage (150V) piezo material

• Stainless steel amplification frame

• Large parallel mounting surfaces

• Vacuum compatibility upon request

• Stroke:

• Stiffness:

• Unloaded Resonant

Frequency:

• Blocked Force Estimate:

• Dimensions:

550 microns ± 10% 1.6 N/um ± 10% 510 Hz ± 5% (fixed-free) 800 N

77 x 41 x 19 mm
