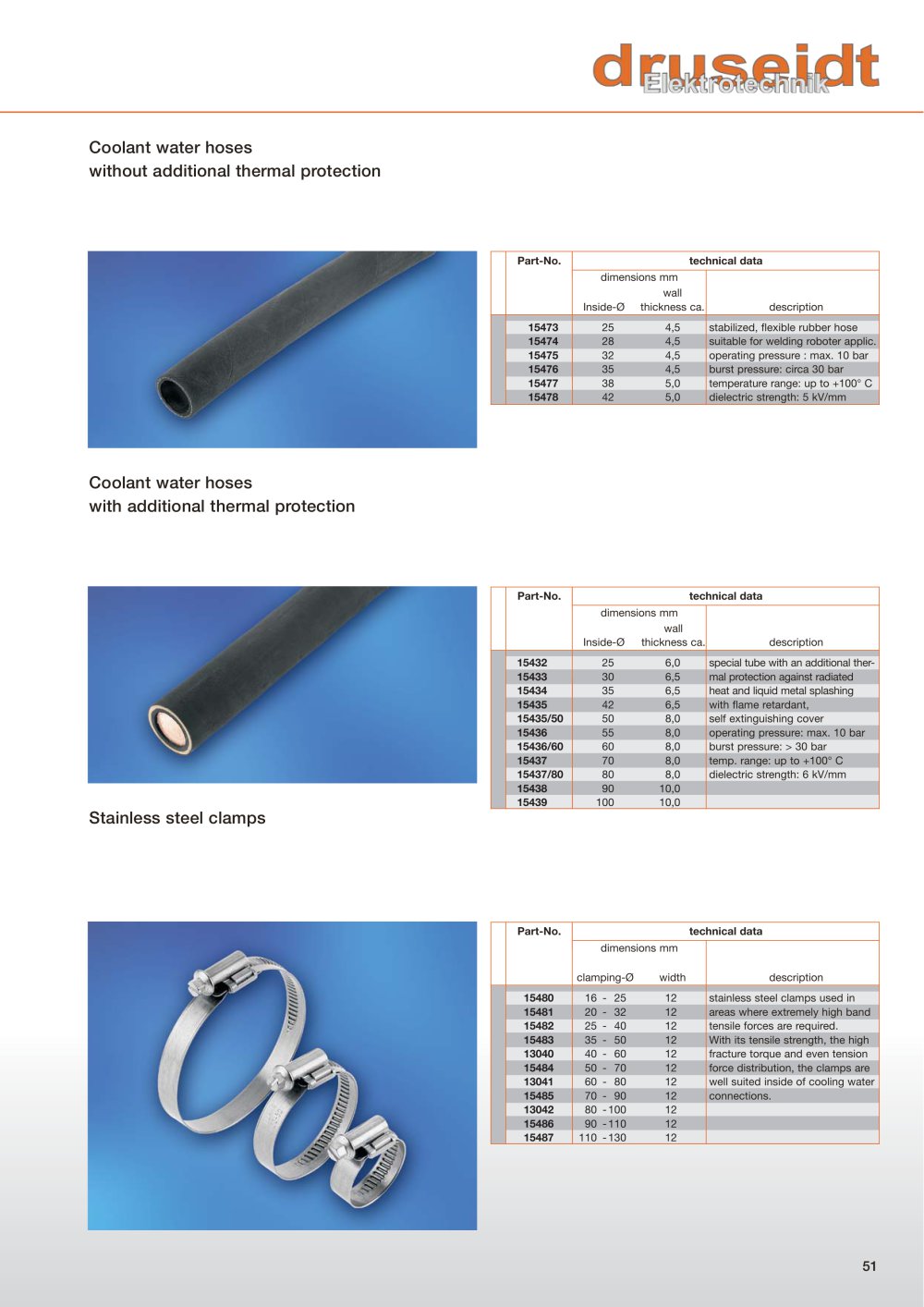

Coolant water hoses

without additional thermal protection


		Part-No.	technical data
			dimensions mm
				wall
			Inside-0	thickness ca.	description

		15473	25	4,5	stabilized, flexible rubber hose
		15474	28	4,5	suitable for welding roboter applic.
		15475	32	4,5	operating pressure : max. 10 bar
		15476	35	4,5	burst pressure: circa 30 bar
		15477	38	5,0	temperature range: up to +100° C
	_	15478	42	5,0	dielectric strength: 5 kV/mm

Coolant water hoses

with additional thermal protection


		Part-No.	technical data
			dimensions mm
				wall
			Inside-0	thickness ca.	description

		15432	25	6,0	special tube with an additional ther-
		15433	30	6,5	mal protection against radiated
		15434	35	8,0	heat and liquid metal splashing
		15435	42	8,0	with flame retardant,
		15435/50	50	8,0	self extinguishing cover
		15436	55	8,0	operating pressure: max. 10 bar
		15436/60	60	9,0	burst pressure: > 30 bar
		15437	70	9,0	temp. range: up to +100° C
		15437/80	80	10,0	dielectric strength: 6 kV/mm
		15438	90	10,0
		15439	100	10,0

Stainless steel clamps

51
