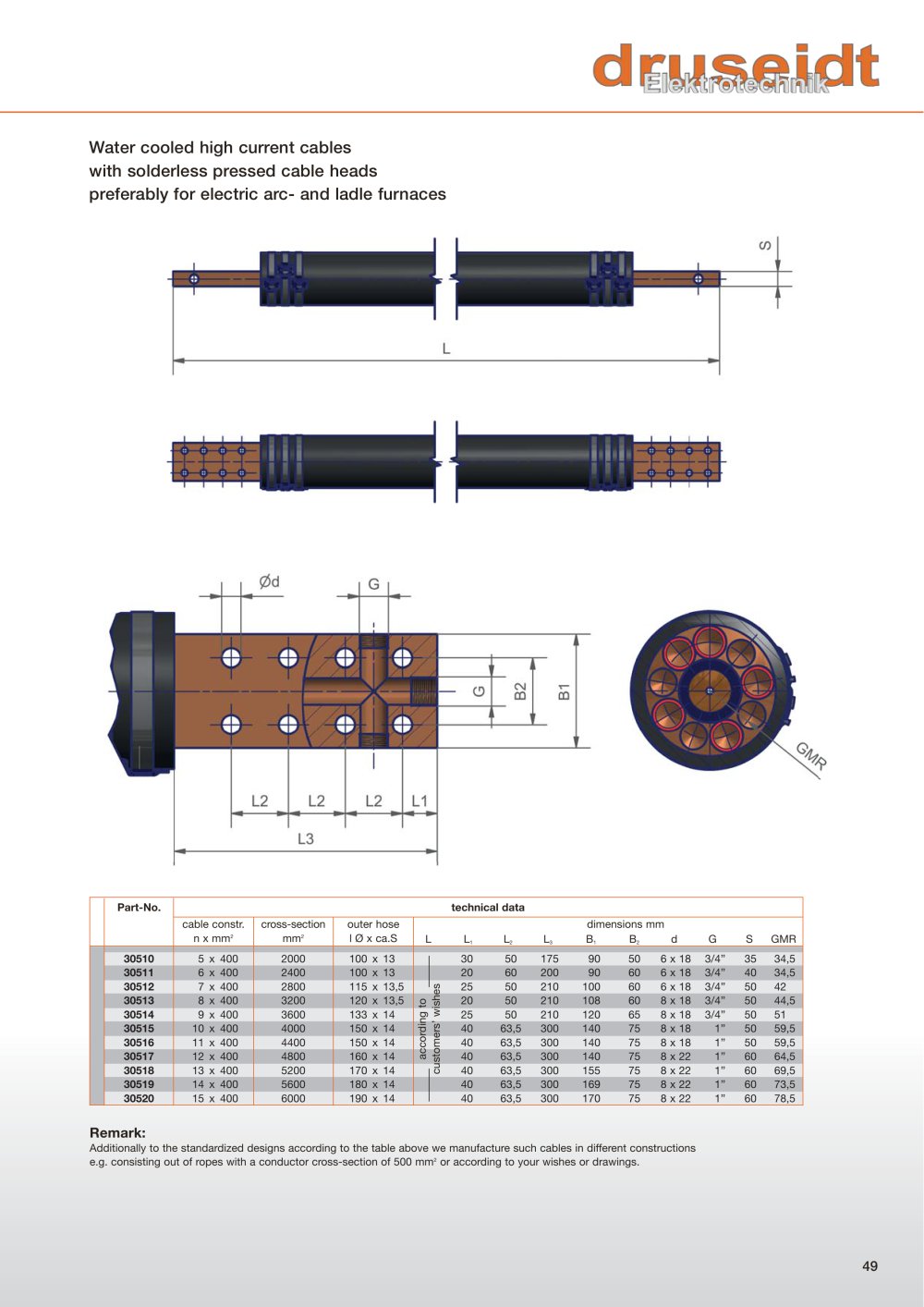

Part-No.	technical data
	cable constr.	cross-section	outer hose						dimensions mm
	n x mm²	mm²	l 0 x ca.S	L			L2		DO	DO	d	G	S	GMR

30510	5 x 400	2000	100 x 13			30	55	185	90	50	16	3/4'''	40	34,5
30511	6 x 400	2400	100 x 13			30	55	185	90	50	16	3/4'''	40	34,5
30512	7 x 400	2800	115 x 13,5		wishes	30	60	255	100	60	16		50	42
30513	8 x 400	3200	125 x 13,5	to		30	60	255	100	60	18		50	47
30514	9 x 400	3600	133 x 14	according		30	60	290	120	65	18		50	51
30515	10 x 400	4000	150 x 14		customers'	30	60	290	130	65	18		50	59,5
30516	11 x 400	4400	160 x 14			65	65	310	130	70	18		50	64,5
30517	12 x 400	4800	170 x 14			65	65	310	140	70	18		60	69,5
30518	13 x 400	5200	180 x 14			65	65	310	140	70	18		60	74,5
30519	14 x 400	5600	180 x 14			65	65	310	140	70	18		60	74,5
30520	15 x 400	6000	200 x 14			65	65	310	140	70	18		60	84,5

Remark:

Additionally to the standardized designs according to the table above we manufacture such cables in different constructions e.g. consisting out of ropes with a conductor cross-section of 500 mm² or according to your wishes or drawings.
