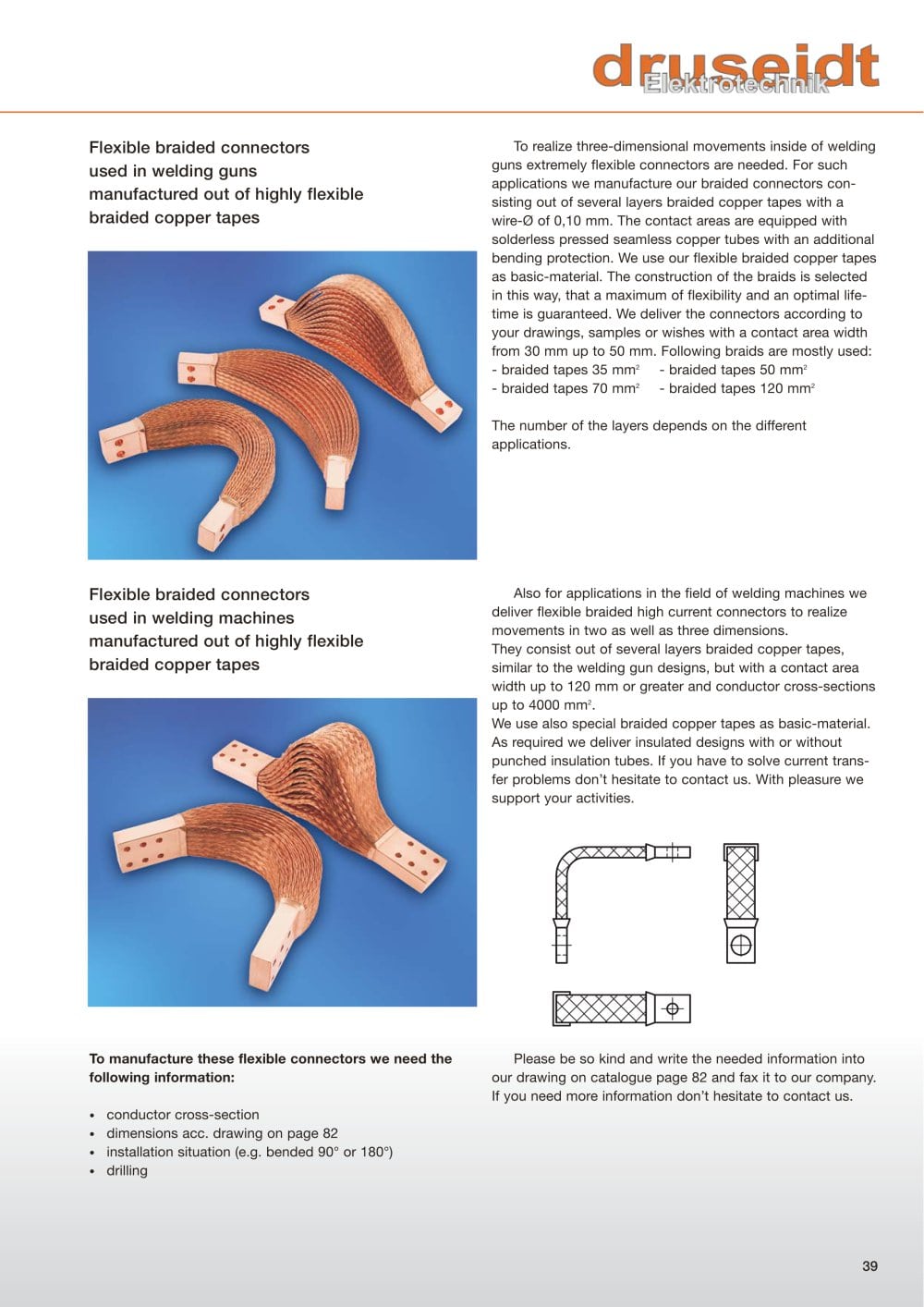

Flexible braided connectors used in welding guns manufactured out of highly flexible braided copper tapes

To realize three-dimensional movements inside of weldingguns extremely flexible connectors are needed. For such applications we manufacture our braided connectors con-sisting out of several layers braided copper tapes with a wire-Ø of 0,10 mm. The contact areas are equipped with solderless pressed seamless copper tubes with an additionalbending protection. We use our flexible braided copper tapes as basic-material. The construction of the braids is selectedin this way, that a maximum of flexibility and an optimal life-time is guaranteed. We deliver the connectors according to your drawings, samples or wishes with a contact area widthfrom 30 mm up to 50 mm. Following braids are mostly used:- braided tapes 35 mm
2 - braided tapes 50 mm
2 - braided tapes 70 mm
2 - braided tapes 120 mm
2 The number of the layers depends on the different applications.

Flexible braided connectors used in welding machines manufactured out of highly flexible braided copper tapes

Also for applications in the field of welding machines wedeliver flexible braided high current connectors to realizemovements in two as well as three dimensions. They consist out of several layers braided copper tapes,similar to the welding gun designs, but with a contact areawidth up to 120 mm or greater and conductor cross-sections up to 4000 mm
2 . We use also special braided copper tapes as basic-material.As required we deliver insulated designs with or without punched insulation tubes. If you have to solve current trans-fer problems don’t hesitate to contact us. With pleasure wesupport your activities. To manufacture these flexible connectors we need thefollowing information:
• conductor cross-section
• dimensions acc. drawing on page 82
• installation situation (e.g. bended 90° or 180°)
• drillingPlease be so kind and write the needed information intoour drawing on catalogue page 82 and fax it to our company.If you need more information don’t hesitate to contact us. 39
