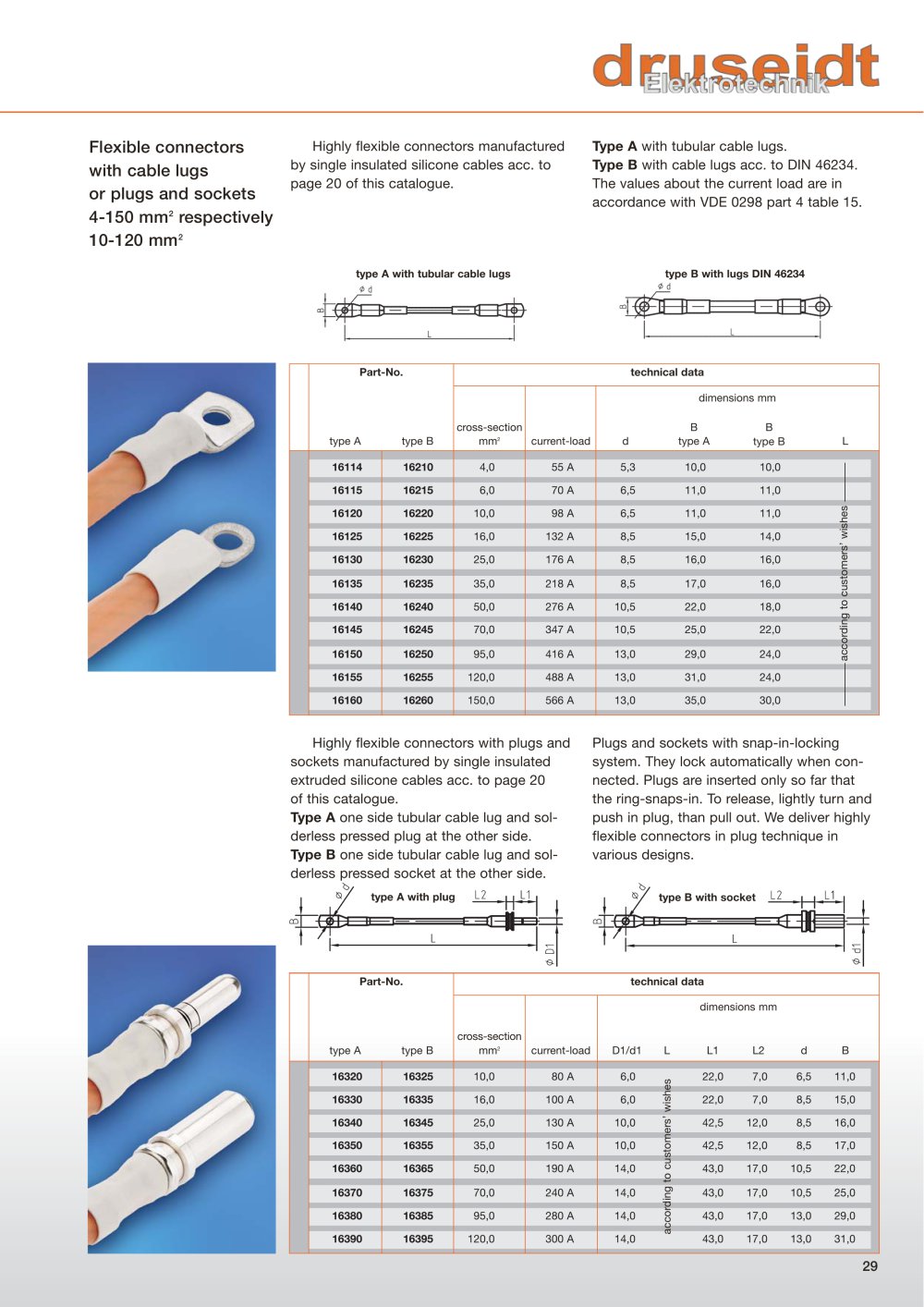

Flexible connectorswith cable lugs or plugs and sockets 4-150 mm

Highly flexible connectors manufacturedby single insulated silicone cables acc. to page 20 of this catalogue. Type A with tubular cable lugs. Type B with cable lugs acc. to DIN 46234. The values about the current load are inaccordance with VDE 0298 part 4 table 15. Highly flexible connectors with plugs andsockets manufactured by single insulatedextruded silicone cables acc. to page 20 of this catalogue.

2

respectively10-120 mm

2 type A with tubular cable lugstype B with lugs DIN 46234 type A with plugtype B with socket Part-No.
technical data type Btype Across-sectionmm
2 d Btype A Btype BL dimensions mmcurrent-load 1611016210 4,055 A5,310,010,0 1611516215 6,070 A6,511,011,0 1612016220 10,098 A6,511,011,0 1612516225 16,0132 A8,515,014,0 1613016230 25,0176 A8,516,016,0 1613516235 35,0218 A8,517,016,0 1614016240 50,0276 A10,522,018,0 1614516245 70,0347 A10,525,022,0 1615016250 95,0416 A13,029,024,0
according to customers’ wishes 1615516255 120,0488 A13,031,024,0 1616016260 150,0566 A13,035,030,0

Type A one side tubular cable lug and sol-derless pressed plug at the other side. Type B one side tubular cable lug and sol-derless pressed socket at the other side.Plugs and sockets with snap-in-lockingsystem. They lock automatically when con-nected. Plugs are inserted only so far that the ring-snaps-in. To release, lightly turn andpush in plug, than pull out. We deliver highlyflexible connectors in plug technique invarious designs.

Part-No.
technical data type Btype Across-sectionmm
2 D1/d1 L L1 L2 d B dimensions mmcurrent-load 1632016325 10,080 A6,022,07,06,511,0 1633016335 16,0100 A6,022,07,08,515,0 1634016345 25,0130 A10,042,512,08,516,0 1635016355 35,0150 A10,042,512,08,517,0 1636016365 50,0190 A14,043,017,010,522,0 1637016375 70,0240 A14,043,017,010,525,0 1638016385 95,0280 A14,043,017,013,029,0
according to customers’ wishes 1639016395 120,0300 A14,043,017,013,031,0

29
