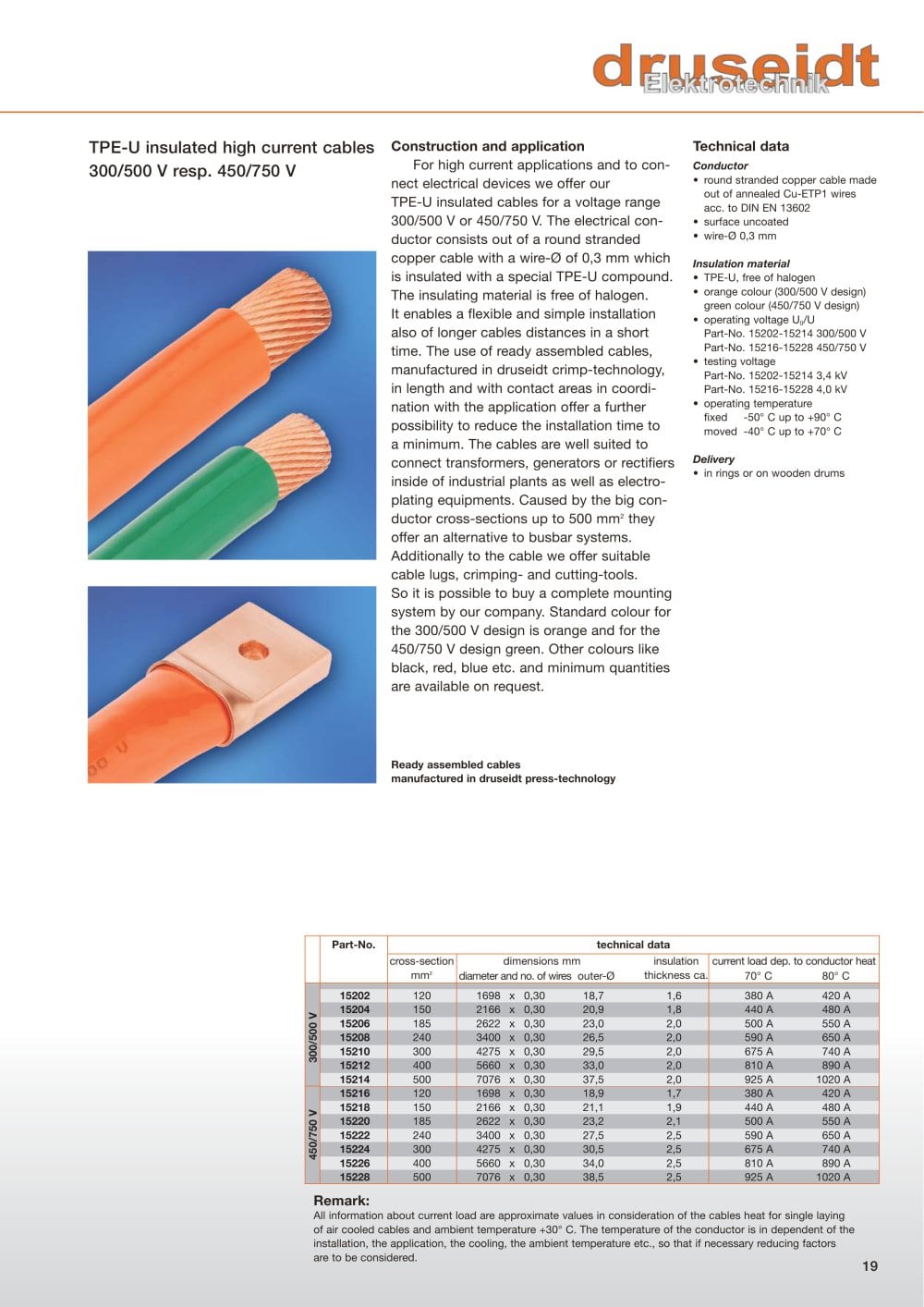

TPE-U insulated high current cables 300/500 V resp. 450/750 V

Construction and application

For high current applications and to connect electrical devices we offer our TPE-U insulated cables for a voltage range 300/500 V or 450/750 V. The electrical conductor consists out of a round stranded copper cable with a wire-0 of 0,3 mm which is insulated with a special TPE-U compound. The insulating material is free of halogen. It enables a flexible and simple installation also of longer cables distances in a short time. The use of ready assembled cables, manufactured in druseidt crimp-technology, in length and with contact areas in coordination with the application offer a further possibility to reduce the installation time to a minimum. The cables are well suited to connect transformers, generators or rectifiers inside of industrial plants as well as electroplating equipments. Caused by the big conductor cross-sections up to 500 mm² they offer an alternative to busbar systems. Additionally to the cable we offer suitable cable lugs, crimping- and cutting-tools. So it is possible to buy a complete mounting system by our company. Standard colour for the 300/500 V design is orange and for the 450/750 V design green. Other colours like black, red, blue etc. and minimum quantities are available on request.

Technical data

Conductor

• round stranded copper cable made out of annealed Cu-ETP1 wires acc. to DIN EN 13602

• surface uncoated

• wire-0 0,3 mm

Insulation material

• TPE-U, free of halogen

• orange colour (300/500 V design) green colour (450/750 V design)

• operating voltage U₀/U

Part-No. 15202-15214 300/500 V

Part-No. 15216-15228 450/750 V

• testing voltage

Part-No. 15202-15214 3,4 kV Part-No. 15216-15228 4,0 kV

• operating temperature fixed -50° C up to +90° C moved -40° C up to +70° C

Delivery

• in rings or on wooden drums

Ready assembled cables

manufactured in druseidt press-technology


	Part-No.	technical data
	Part-No.	cross-section mm²	dimensions mm insulation diameter and no. of wires outer-0 thickness ca.	current load dep. to conductor heat 70° C 80° C

	15202	120	1698 x 0,30 18,7 1,6	380 A 420 A
> o o m S o	15204	150	2166 x 0,30 20,9 1,8	440 A 480 A
	15206	185	2622 x 0,30 23,0 2,0	500 A 550 A
	15208	240	3400 x 0,30 26,5 2,0	590 A 650 A
	15210	300	4275 x 0,30 29,5 2,0	675 A 740 A
CO	15212	400	5660 x 0,30 33,0 2,0	810 A 890 A
	15214	500	7076 x 0,30 37,5 2,0	925 A 1020 A
	15216	120	1698 x 0,30 18,9 1,7	380 A 420 A
>	15218	150	2166 x 0,30 21,1 1,9	440 A 480 A
»50/750	15220	185	2622 x 0,30 23,2 2,1	500 A 550 A
	15222	240	3400 x 0,30 27,5 2,5	590 A 650 A
	15224	300	4275 x 0,30 30,5 2,5	675 A 740 A
	15226	400	5660 x 0,30 34,0 2,5	810 A 890 A
	15228	500	7076 x 0,30 38,5 2,5	925 A 1020 A

Remark:

All information about current load are approximate values in consideration of the cables heat for single laying of air cooled cables and ambient temperature +30° C. The temperature of the conductor is in dependent of the

installation, the application, the cooling, the ambient temperature etc., so that if necessary reducing factors are to be considered.
