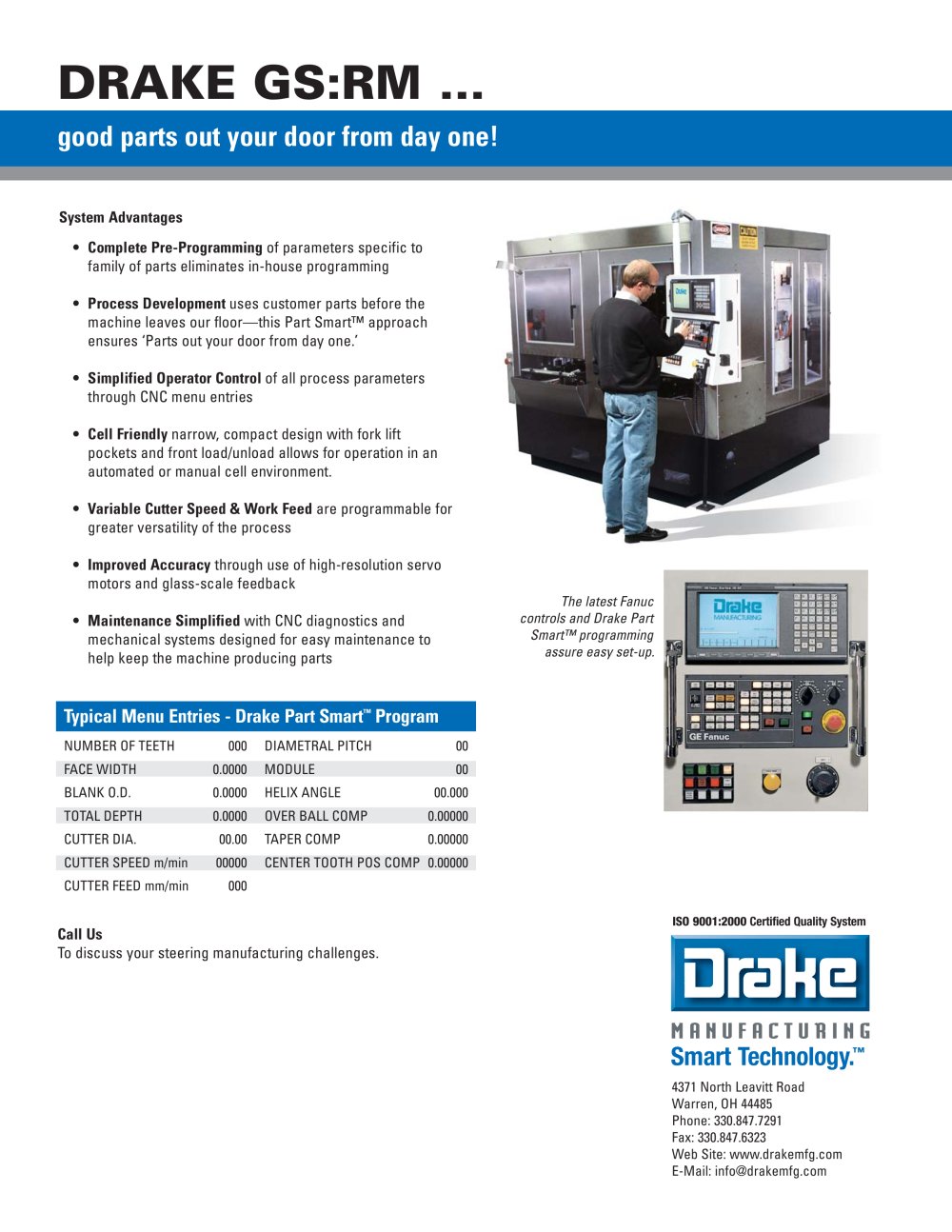

DRAKE GS:RM …

good parts out your door from day one!

System Advantages•Complete Pre-Programming of parameters specific to family of parts eliminates in-house programming •Process Development uses customer parts before the machine leaves our floor—this Part Smart™ approach ensures ‘Parts out your door from day one.’ •Simplified Operator Control of all process parameters through CNC menu entries •Cell Friendly narrow, compact design with fork liftpockets and front load/unload allows for operation in an automated or manual cell environment. •Variable Cutter Speed & Work Feed are programmable for greater versatility of the process •Improved Accuracy through use of high-resolution servo motors and glass-scale feedback •Maintenance Simplified with CNC diagnostics and mechanical systems designed for easy maintenance to help keep the machine producing parts
The latest Fanuc controls and Drake PartSmart™ programmingassure easy set-up.

Typical Menu Entries- Drake Part Smart

™

Program

NUMBER OF TEETH000DIAMETRAL PITCH00FACE WIDTH0.0000MODULE00 BLANK O.D.0.0000HELIX ANGLE00.000 TOTAL DEPTH0.0000OVER BALL COMP0.00000CUTTER DIA.00.00TAPER COMP0.00000CUTTER SPEED m/min00000CENTER TOOTH POS COMP0.00000 CUTTER FEED mm/min000 ISO 9001:2000 Certified Quality System Call Us To discuss your steering manufacturing challenges.

Smart Technology.

™ 4371 North Leavitt Road Warren, OH 44485 Phone: 330.847.7291 Fax: 330.847.6323 Web Site: www.drakemfg.com E-Mail: info@drakemfg.com
