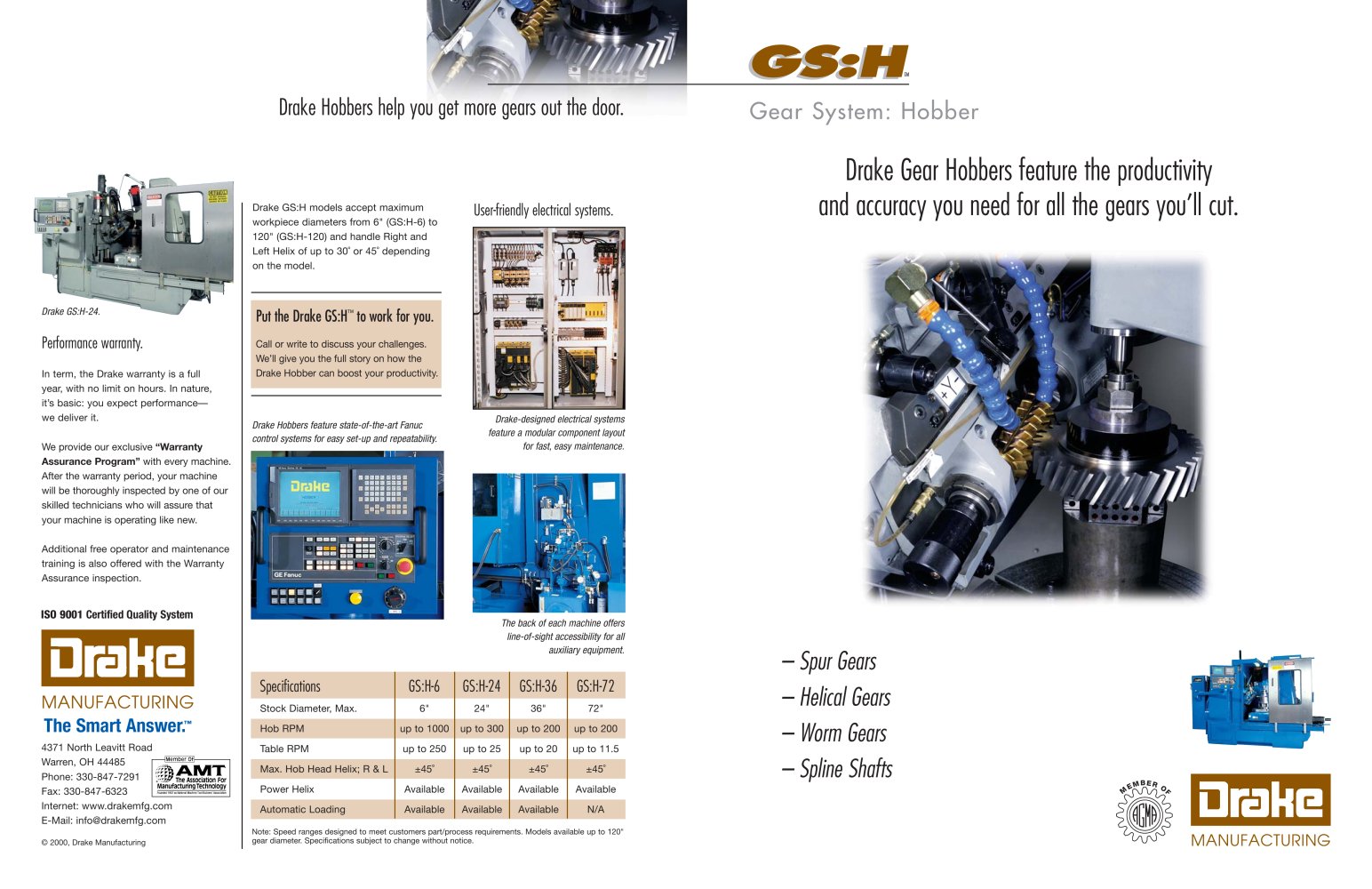

GS:H

Drake Hobbers help you get more gears out the door.

Gear System: Hobber

Drake Gear Hobbers feature the productivity and accuracy you need for all the gears you'll cut.

User-friendly electrical systems.

Drake GS:H models accept maximum workpiece diameters from 6" (GS:H-6) to 120" (GS:H-120) and handle Right and Left Helix of up to 30° or 45° depending on the model.

Put the Drake GS:H™ to work for you.

Call or write to discuss your challenges. We'll give you the full story on how the

Drake Hobber can boost your productivity.

Performance warranty.

In term, the Drake warranty is a full year, with no limit on hours. In nature, it's basic: you expect performance— we deliver it.

We provide our exclusive "Warranty Assurance Program" with every machine. After the warranty period, your machine will be thoroughly inspected by one of our skilled technicians who will assure that your machine is operating like new.

Additional free operator and maintenance training is also offered with the Warranty Assurance inspection.

ISO 9001 Certified Quality System

Drake-designed electrical systems feature a modular component layout for fast, easy maintenance.

Drake Hobbers feature state-of-the-art Fanuc control systems for easy set-up and repeatability.

The back of each machine offers line-of-sight accessibility for all auxiliary equipment.

□rahG

Spur Gears Helical Gears Worm Gears Spline Shafts


Specifications	GS:H-6	GS:H-24	GS:H-36	GS:H-72
Stock Diameter, Max.	6"	24"	36"	72"
Hob RPM	up to 1000	up to 300	up to 200	up to 200
Table RPM	up to 250	up to 25	up to 20	up to 11.5
Max. Hob Head Helix; R & L	±45°	±45°	±45°	±45°
Power Helix	Available	Available	Available	Available
Automatic Loading	Available	Available	Available	N/A

MANUFACTURING The Smart Answer.™

4371 North Leavitt Road

—IMemrjer Ofl-

|AMT

Kko? The Association For Manufacturing Technology

Warren, OH 44485 Phone: 330-847-7291

Fax: 330-847-6323 Internet: www.drakemfg.com E-Mail: info@drakemfg.com

Note: Speed ranges designed to meet customers part/process requirements. Models available up to 120" gear diameter. Specifications subject to change without notice.
