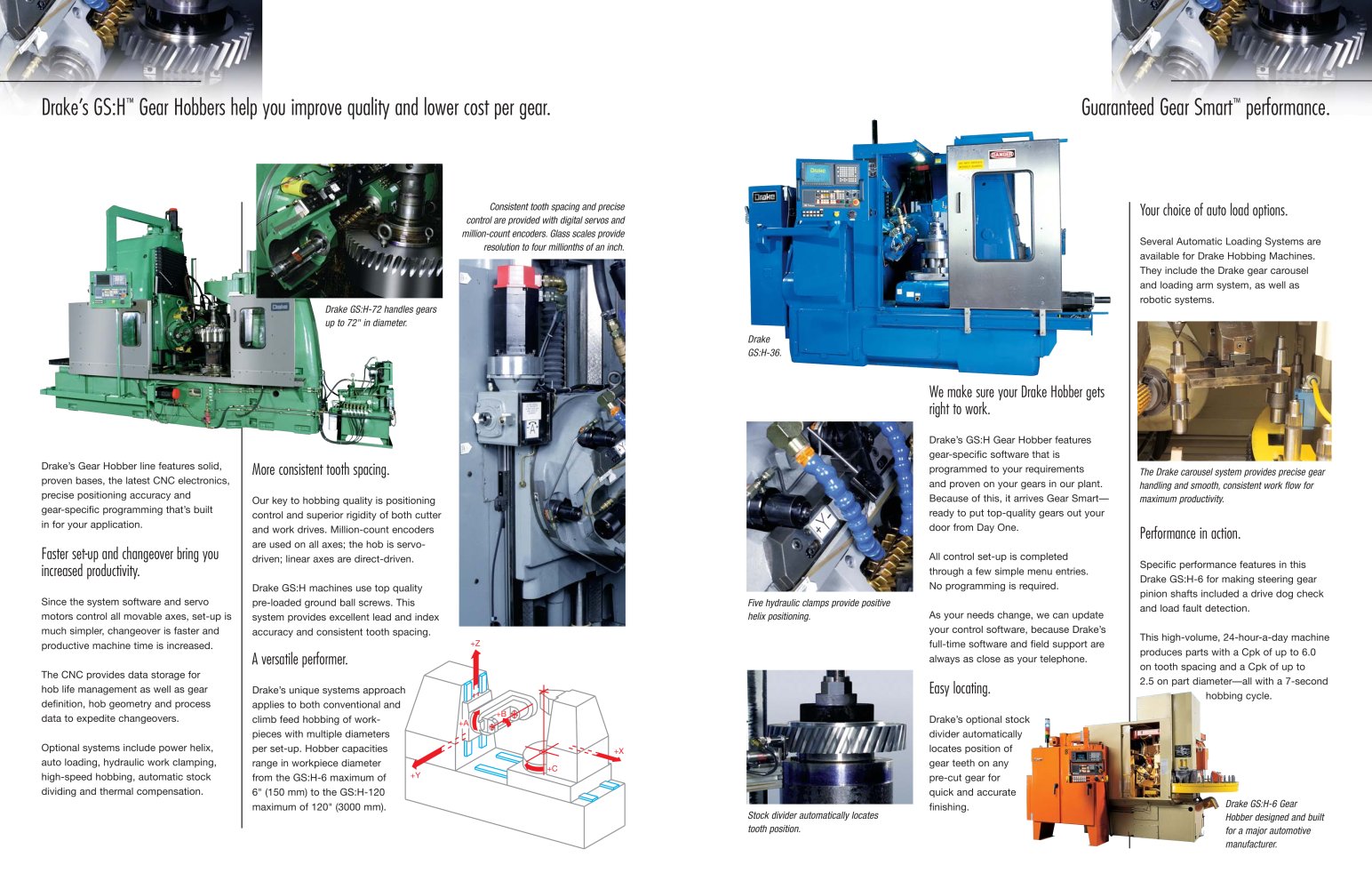

Drake’s GS:H

™

Gear Hobbers help you improve quality and lower cost per gear. Guaranteed Gear Smart

™

performance.

Consistent tooth spacing and precise control are provided with digital servos and million-count encoders.Glass scales provideresolution to four millionths of an inch.

Your choice of auto load options.

Several Automatic Loading Systems are available for Drake Hobbing Machines.They include the Drake gear carousel and loading arm system, as well as robotic systems. Drake GS:H-72 handles gearsup to 72" in diameter. DrakeGS:H-36.

We make sure your Drake Hobber getsright to work.

Drake’s GS:H Gear Hobber features gear-specific software that is programmed to your requirements and proven on your gears in our plant. Because of this, it arrives Gear Smart—ready to put top-quality gears out yourdoor from Day One.All control set-up is completed through a few simple menu entries. No programming is required.As your needs change, we can updateyour control software, because Drake’sfull-time software and field support arealways as close as your telephone. Drake’s Gear Hobber line features solid,proven bases, the latest CNC electronics,precise positioning accuracy and gear-specific programming that’s built in for your application.

More consistent tooth spacing.

The Drake carousel system provides precise gearhandling and smooth,consistent work flow formaximum productivity. Our key to hobbing quality is positioningcontrol and superior rigidity of both cutterand work drives. Million-count encodersare used on all axes; the hob is servo- driven; linear axes are direct-driven. Drake GS:H machines use top qualitypre-loaded ground ball screws. This system provides excellent lead and index accuracy and consistent tooth spacing.

Performance in action. Faster set-up and changeover bring youincreased productivity.

Specific performance features in thisDrake GS:H-6 for making steering gearpinion shafts included a drive dog checkand load fault detection.This high-volume, 24-hour-a-day machineproduces parts with a Cpk of up to 6.0 on tooth spacing and a Cpk of up to 2.5 on part diameter—all with a 7-secondhobbing cycle. Since the system software and servomotors control all movable axes, set-up ismuch simpler, changeover is faster andproductive machine time is increased. The CNC provides data storage for hob life management as well as gear definition, hob geometry and processdata to expedite changeovers. Optional systems include power helix,auto loading, hydraulic work clamping, high-speed hobbing, automatic stockdividing and thermal compensation. Five hydraulic clamps provide positive helix positioning.
+Z

A versatile performer.

Drake’s unique systems approach applies to both conventional andclimb feed hobbing of work-pieces with multiple diameters per set-up. Hobber capacitiesrange in workpiece diameterfrom the GS:H-6 maximum of 6" (150 mm) to the GS:H-120maximum of 120" (3000 mm).

Easy locating.

+B +A Drake’s optional stock divider automaticallylocates position ofgear teeth on any pre-cut gear for quick and accuratefinishing.
+X +C +Y Drake GS:H-6 Gear Hobber designed and builtfor a major automotivemanufacturer. Stock divider automatically locates tooth position.
