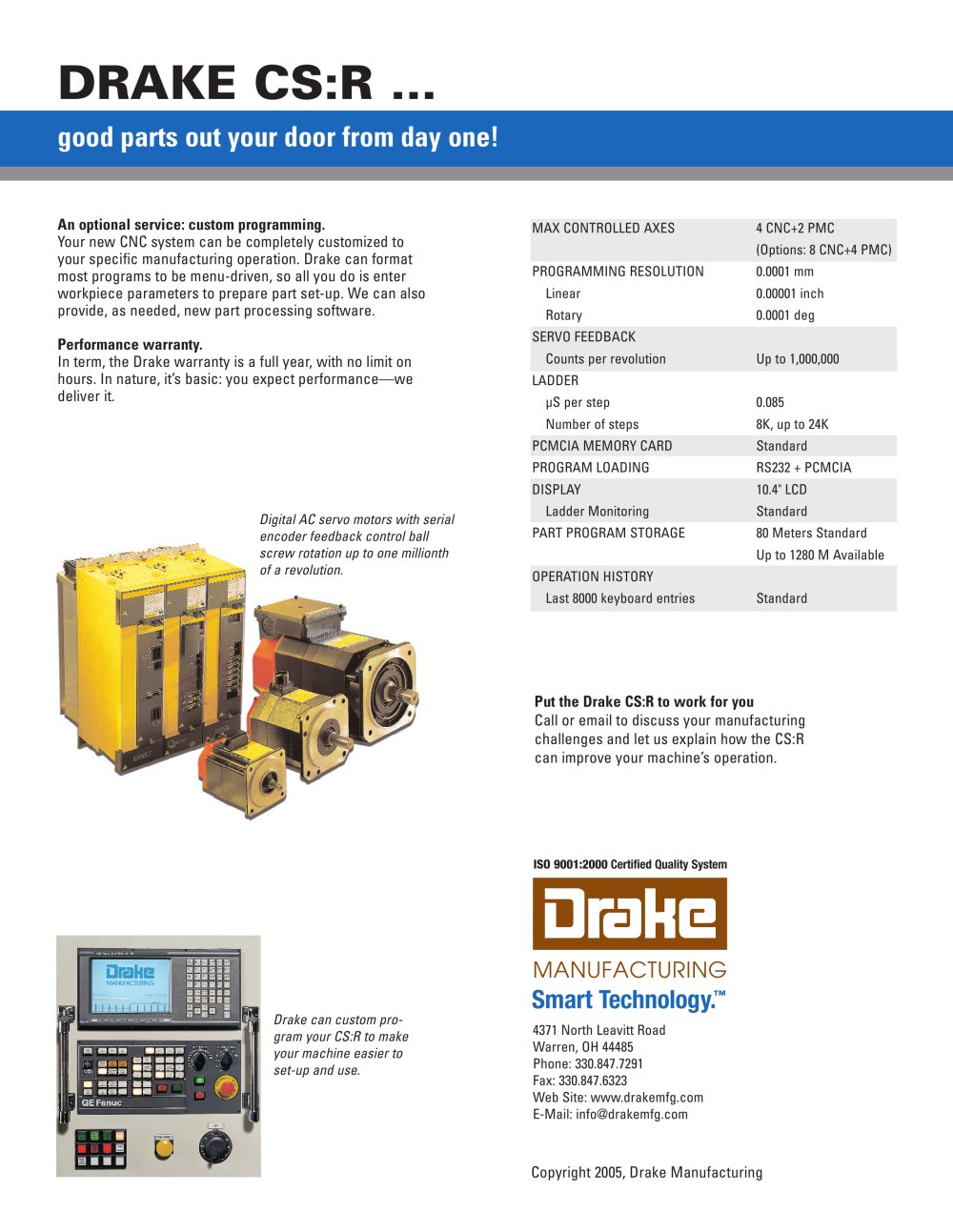

DRAKE CS:R …

good parts out your door from day one!

Performance warranty. An optional service: custom programming. In term, the Drake warranty is a full year, with no limit on hours. In nature, it’s basic: you expect performance—we deliver it.
MAX CONTROLLED AXES4 CNC+2 PMC(Options: 8 CNC+4 PMC)PROGRAMMING RESOLUTION0.0001 mmLinear0.00001 inchRotary0.0001 degSERVO FEEDBACKCounts per revolutionUp to 1,000,000LADDERµS per step0.085 Number of steps8K, up to 24KPCMCIA MEMORY CARDStandardPROGRAM LOADINGRS232 + PCMCIADISPLAY10.4" LCDLadder MonitoringStandardPART PROGRAM STORAGE80 Meters StandardUp to 1280 M AvailableOPERATION HISTORYLast 8000 keyboard entriesStandard Your new CNC system can be completely customized to your specific manufacturing operation. Drake can format most programs to be menu-driven, so all you do is enter workpiece parameters to prepare part set-up. We can also provide, as needed, new part processing software.
Digital AC servo motors with serial encoder feedback control ball screw rotation up to one millionth of a revolution. Put the Drake CS:R to work for you Call or email to discuss your manufacturing challenges and let us explain how the CS:R can improve your machine’s operation.
ISO 9001:2000 Certified Quality System Drake can custom pro-gram your CS:R to make your machine easier to set-up and use.

Smart Technology.

™ 4371 North Leavitt RoadWarren, OH 44485 Phone: 330.847.7291 Fax: 330.847.6323 Web Site: www.drakemfg.com E-Mail: info@drakemfg.com Copyright 2005, Drake Manufacturing
