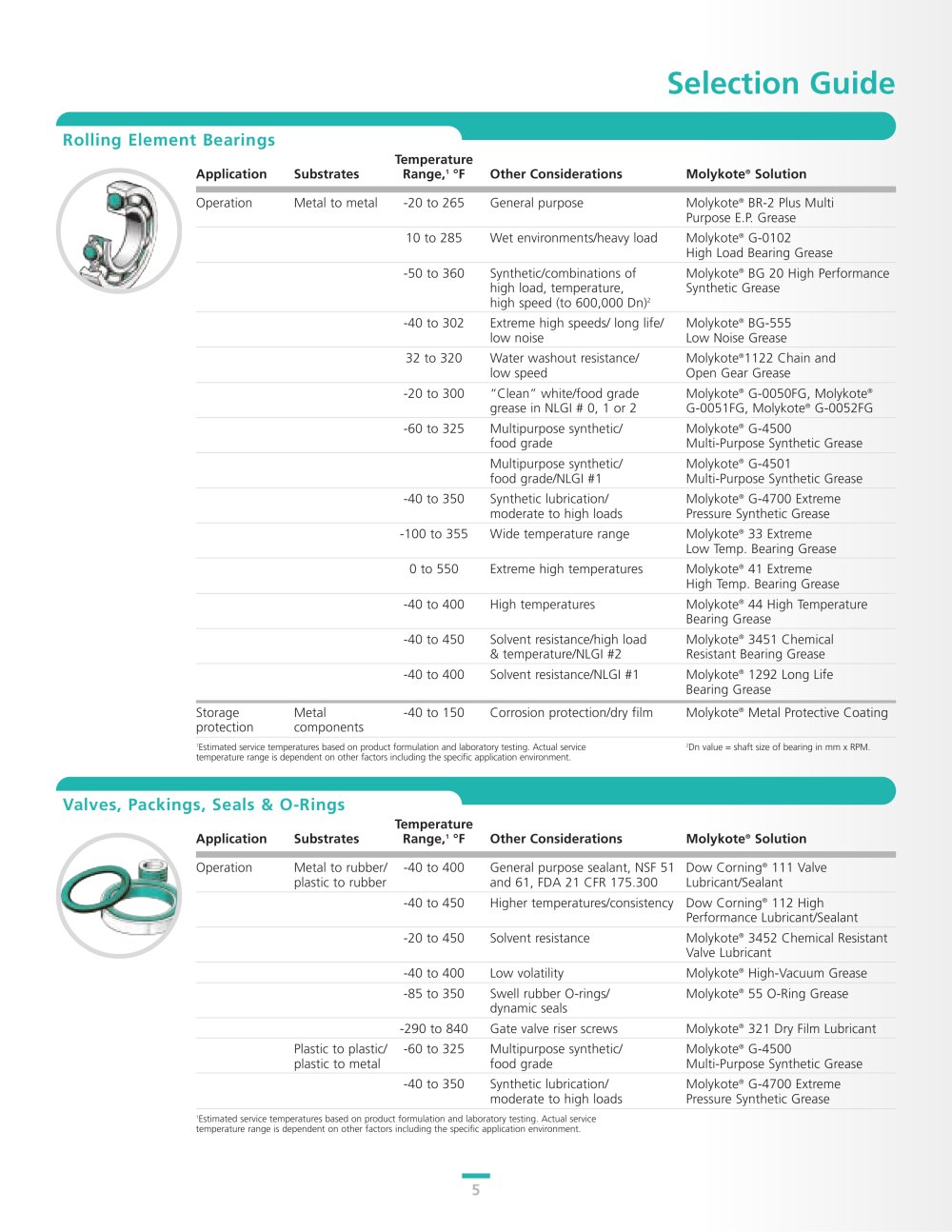

Selection Guide

Rolling Element Bearings

Application

L Operation

Temperature Range,¹ °F

Substrates

Other Considerations

Molykote® Solution

Metal to metal -20 to 265 General purpose

Molykote® BR-2 Plus Multi Purpose E.P. Grease


	10 to 285	Wet environments/heavy load	Molykote® G-0102 High Load Bearing Grease
	-50 to 360	Synthetic/combinations of high load, temperature, high speed (to 600,000 Dn)²	Molykote® BG 20 High Performance Synthetic Grease
	-40 to 302	Extreme high speeds/ long life/ low noise	Molykote^® BG-555 Low Noise Grease
	32 to 320	Water washout resistance/ low speed	Molykote^®1122 Chain and Open Gear Grease
	-20 to 300	"Clean" white/food grade grease in NLGI # 0, 1 or 2	Molykote^® G-0050FG, Molykote^®G-0051FG, Molykote^® G-0052FG
	-60 to 325	Multipurpose synthetic/ food grade	Molykote® G-4500 Multi-Purpose Synthetic Grease
		Multipurpose synthetic/ food grade/NLGI #1	Molykote^® G-4501 Multi-Purpose Synthetic Grease
	-40 to 350	Synthetic lubrication/ moderate to high loads	Molykote^® G-4700 Extreme Pressure Synthetic Grease
	-100 to 355	Wide temperature range	Molykote^® 33 Extreme Low Temp. Bearing Grease
	0 to 550	Extreme high temperatures	Molykote^® 41 Extreme High Temp. Bearing Grease
	-40 to 400	High temperatures	Molykote^® 44 High Temperature Bearing Grease
	-40 to 450	Solvent resistance/high load & temperature/NLGI #2	Molykote^® 3451 Chemical Resistant Bearing Grease
	-40 to 400	Solvent resistance/NLGI #1	Molykote® 1292 Long Life Bearing Grease
Storage Metal protection components	-40 to 150	Corrosion protection/dry film	Molykote^® Metal Protective Coating
'Estimated service temperatures based on product formulation and laboratory testing. Actual service temperature range is dependent on other factors including the specific application environment.			²Dn value = shaft size of bearing in mm x RPM.
s Seals & O_-Rings
Application Substrates	Temperature Range,¹ °F	Other Considerations	Molykote® Solution
Operation Metal to rubber/ plastic to rubber	-40 to 400	General purpose sealant, NSF 51 and 61, FDA 21 CFR 175.300	Dow Corning® 111 Valve Lubricant/Sealant
	-40 to 450	Higher temperatures/consistency	Dow Corning^® 112 High Performance Lubricant/Sealant
	-20 to 450	Solvent resistance	Molykote^® 3452 Chemical Resistant Valve Lubricant
	-40 to 400	Low volatility	Molykote^® High-Vacuum Grease
	-85 to 350	Swell rubber O-rings/ dynamic seals	Molykote^® 55 O-Ring Grease
	-290 to 840	Gate valve riser screws	Molykote^® 321 Dry Film Lubricant
Plastic to plastic/ plastic to metal	-60 to 325	Multipurpose synthetic/ food grade	Molykote^® G-4500 Multi-Purpose Synthetic Grease
	-40 to 350	Synthetic lubrication/ moderate to high loads	Molykote^® G-4700 Extreme Pressure Synthetic Grease

'Estimated service temperatures based on product formulation and laboratory testing. Actual service temperature range is dependent on other factors including the specific application environment.
