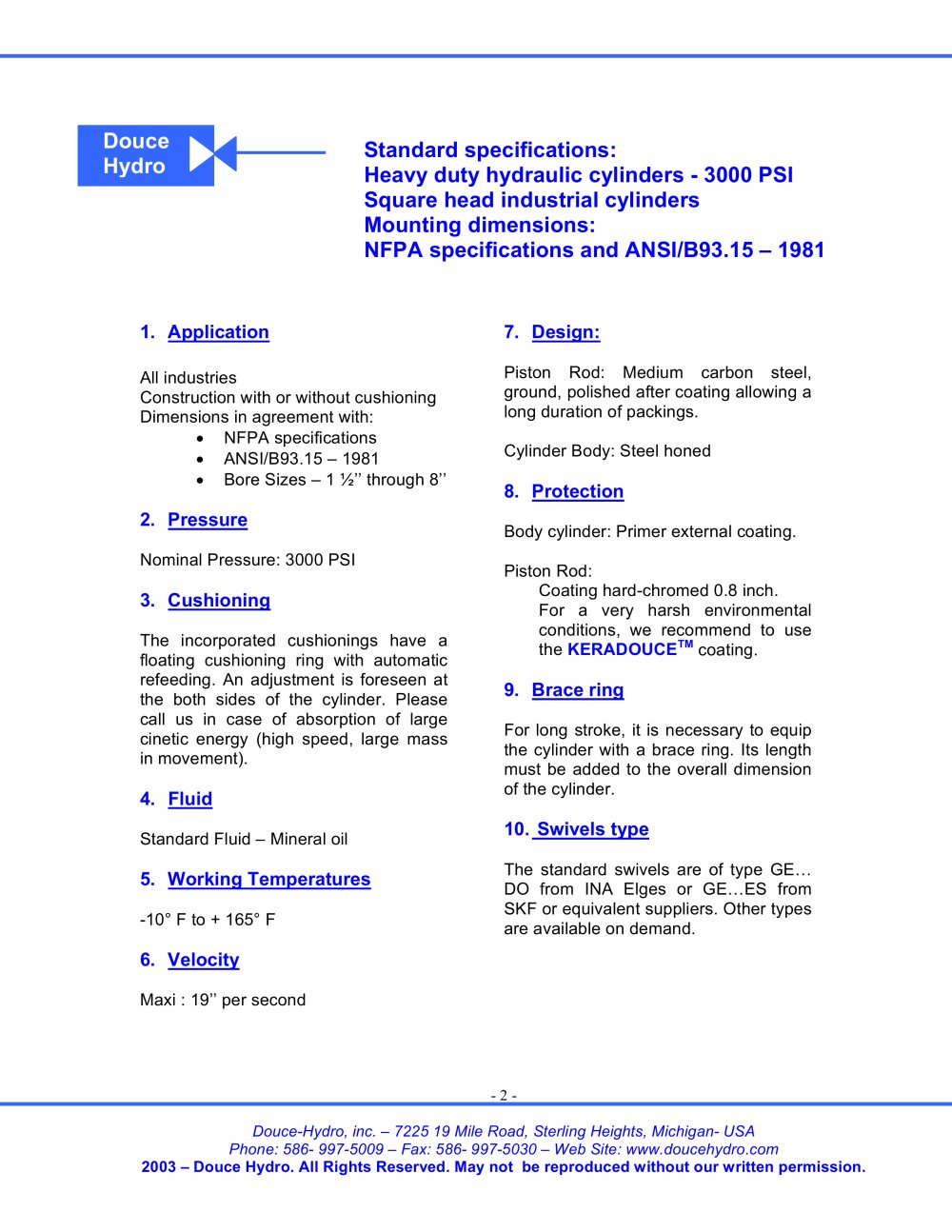

- 2 - DouceHydro Standard specifications: Heavy duty hydraulic cylinders - 3000 PSI Square head industrial cylinders Mounting dimensions: NFPA specifications and ANSI/B93.15 – 1981 1. Application All industries Construction with or without cushioning Dimensions in agreement with: • NFPA specifications • ANSI/B93.15 – 1981 • Bore Sizes – 1 ½’’ through 8’’ 2. Pressure Nominal Pressure: 3000 PSI 3. Cushioning The incorporated cushionings have a floating cushioning ring with automatic refeeding. An adjustment is foreseen at the both sides of the cylinder. Please call us in case of absorption of large cinetic energy (high speed, large mass in movement). 4. Fluid Standard Fluid – Mineral oil 5. Working Temperatures -10° F to + 165° F 6. Velocity Maxi : 19’’ per second 7. Design: Piston Rod: Medium carbon steel, ground, polished after coating allowing a long duration of packings. Cylinder Body: Steel honed 8. Protection Body cylinder: Primer external coating. Piston Rod: Coating hard-chromed 0.8 inch. For a very harsh environmental conditions, we recommend to use the KERADOUCETM coating. 9. Brace ring For long stroke, it is necessary to equip the cylinder with a brace ring. Its length must be added to the overall dimension of the cylinder. 10. Swivels type The standard swivels are of type GE… DO from INA Elges or GE…ES from SKF or equivalent suppliers. Other types are available on demand. Douce-Hydro, inc. – 7225 19 Mile Road, Sterling Heights, Michigan- USA Phone: 586- 997-5009 – Fax: 586- 997-5030 – Web Site: www.doucehydro.com 2003 – Douce Hydro. All Rights Reserved. May not be reproduced without our written permission.
