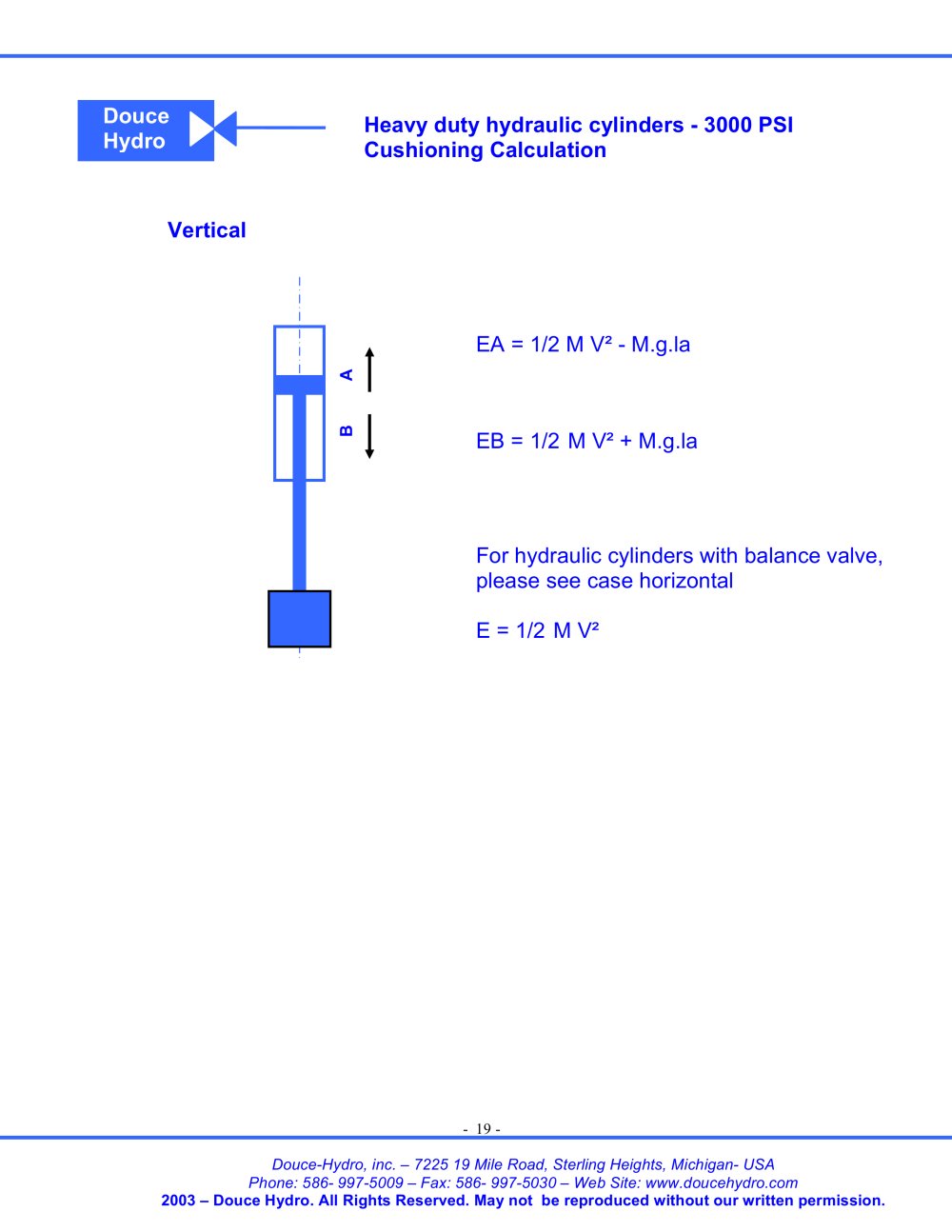

Heavy duty hydraulic cylinders - 3000 PSI
Cushioning Calculation
DouceHydro
• Vertical
EA = 1/2 M V˛ - M.g.la
EB = 1/2 M V˛ + M.g.la
For hydraulic cylinders with balance valve,
B A
please see case horizontal
E = 1/2 M V˛
- 19 -
