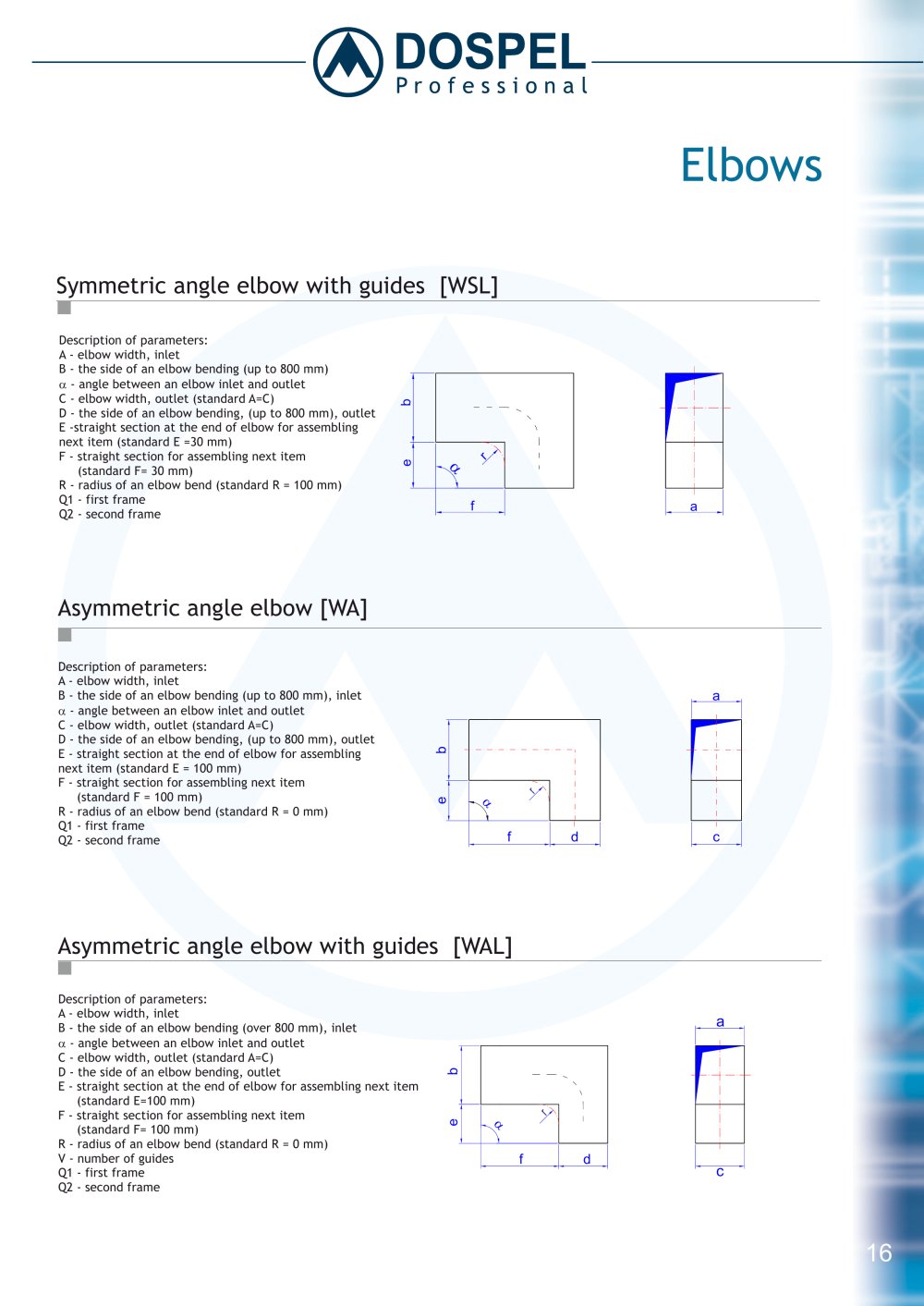

Elbows

Symmetric angle elbow with guides [WSL]

Description of parameters:A - elbow width, inletB - the side of an elbow bending (up to 800 mm) a - angle between an elbow inlet and outletC - elbow width, outlet (standard A=C)D - the side of an elbow bending, (up to 800 mm), outletE -straight section at
be the end of elbow for assembling next item (standard E =30 mm)F - straight section for assembling next item (standard F= 30 mm)R - radius of an elbow bend (standard R = 100 mm)Q1 - first frameQ2 - second frame
r

f a

Asymmetric angle elbow [WA]

Description of parameters:A - elbow width, inletB - the side of an elbow bending (up to 800 mm), inlet

a

a - angle between an elbow inlet and outletC - elbow width, outlet (standard A=C)D - the side of an elbow bending, (up to 800 mm), outletE - straight section at the end of elbow for assembling next item (standard E = 100 mm)F - straight section for assembling next item (standard F = 100 mm)R - radius of an elbow bend (standard R = 0 mm)Q1 - first frameQ2 - second frame
b r e

f d c

Asymmetric angle elbow with guides [WAL]

Description of parameters:A - elbow width, inletB - the side of an elbow bending (over 800 mm), inlet

a

a - angle between an elbow inlet and outletC - elbow width, outlet (standard A=C)D - the side of an elbow bending, outletE - straight section at the end of
be elbow for assembling next item (standard E=100 mm)F - straight section for assembling next item (standard F= 100 mm)R - radius of an elbow bend (standard R = 0 mm)V - number of guidesQ1 - first frameQ2 - second frame
r

fd c
