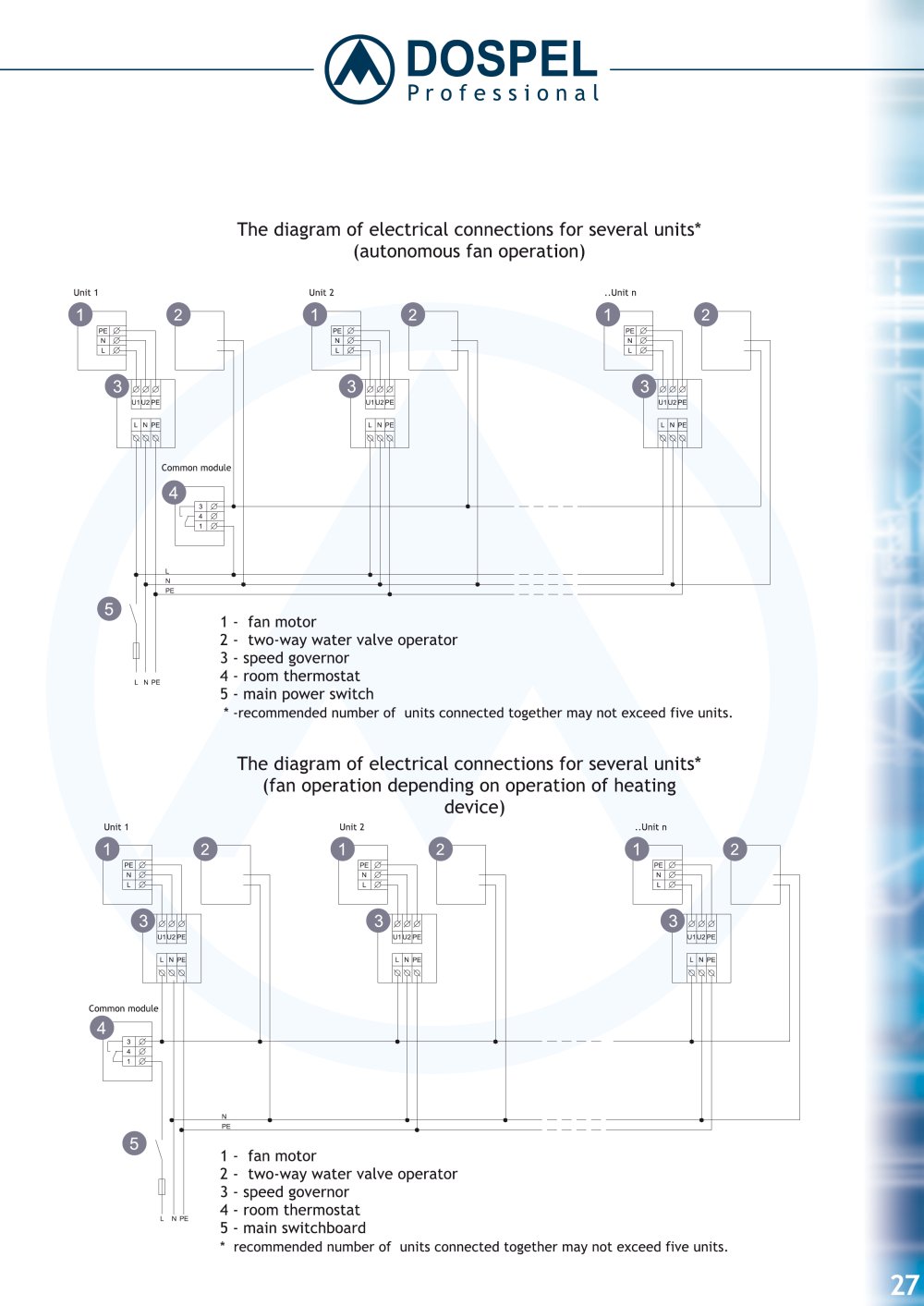

The diagram of electrical connections for several units* (autonomous fan opération)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 - two-way water valve operator
3 - speed governor
4 - room thermostat
5 - main power switch
* -recommended number of units connectée! together may not exceed five units.
|
|
|
|
|
|
|
|
The diagram of electrical connections for several units* (fan opération depending on opération of heating
device)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 - two-way water valve operator
3 - speed governor
4 - room thermostat
5 - main switchboard
* recommended number of units connected together may not exceed five units.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
