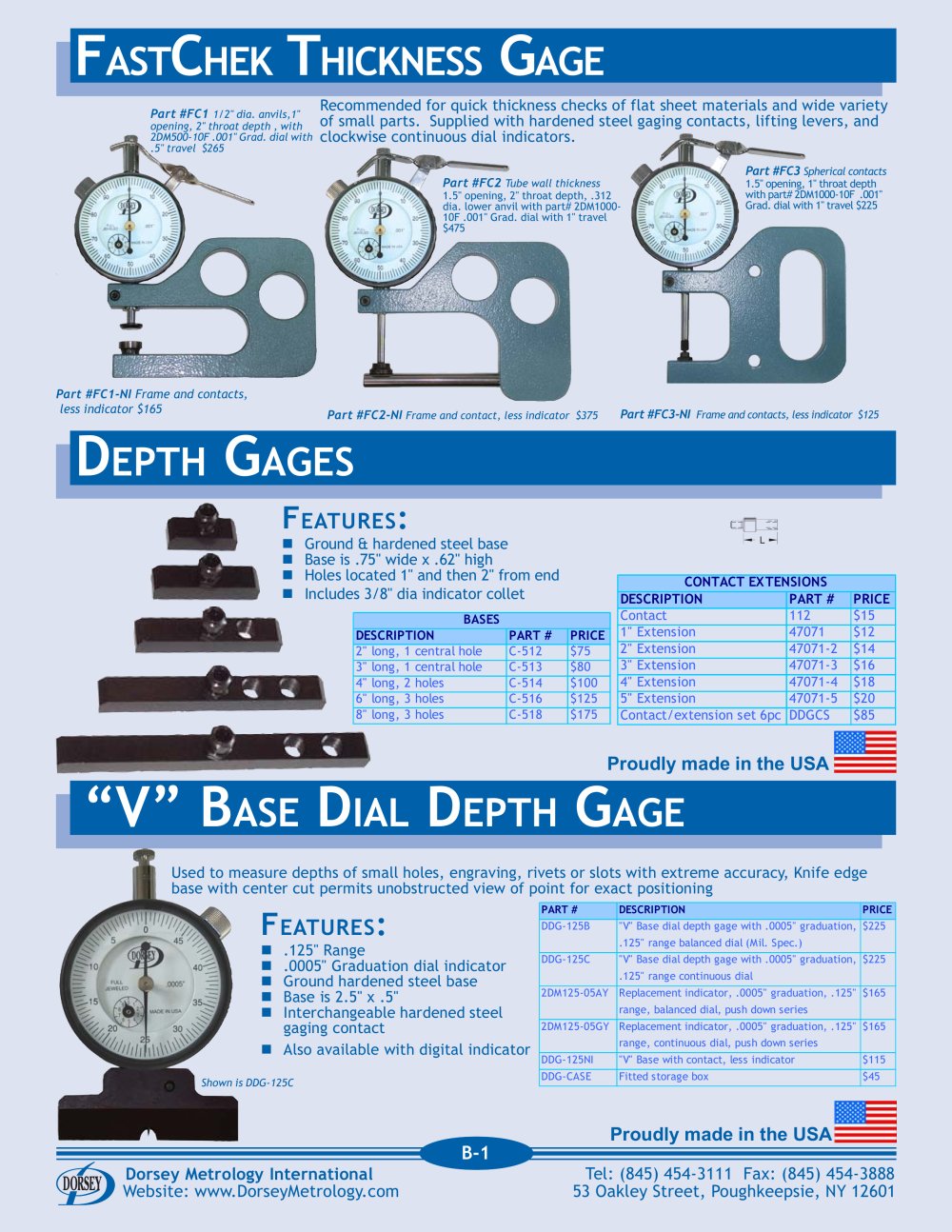

F AST C HEK T HICKNESS

Part #FC1 1/2" dia. anvils,1"opening, 2" throat depth , with2DM500-10F .001" Grad. dial with .5" travel $265 Recommended for quick thickness checks of flat sheet materials and wide varietyof small parts. Supplied with hardened steel gaging contacts, lifting levers, andclockwise continuous dial indicators.

G AGE

Part #FC3 Spherical contacts Part #FC2 Tube wall thickness 1.5" opening, 1" throat depthwith part# 2DM1000-10F .001" Grad. dial with 1" travel $225 1.5" opening, 2" throat depth, .312dia. lower anvil with part# 2DM1000-10F .001" Grad. dial with 1" travel $475 Part #FC1-NI Frame and contacts, less indicator $165 Part #FC2-NI Frame and contact, less indicator $375 Part #FC3-NI Frame and contacts, less indicator $125

D EPTH G AGES

F

EATURES

Ground & hardened steel base

:

Base is .75" wide x .62" high
BASES CONTACT EXTENSIONS Holes located 1" and then 2" from end Includes 3/8" dia indicator collet
DESCRIPTIONPART #PRICE Contact112$151" Extension47071$122" Extension47071-2$143" Extension47071-3$164" Extension47071-4$18 5" Extension47071-5$20Contact/extension set 6pcDDGCS$85 DESCRIPTIONPART #PRICE 2" long, 1 central holeC-512$753" long, 1 central holeC-513$804" long, 2 holesC-514$100 6" long, 3 holesC-516$125 8" long, 3 holesC-518$175

Proudly made in the USA

“V” B ASE D IAL D EPTH G AGE

Used to measure depths of small holes, engraving, rivets or slots with extreme accuracy, Knife edgebase with center cut permits unobstructed view of point for exact positioning

F

PART #DESCRIPTIONPRICE

EATURES

DDG-125B"V" Base dial depth gage with .0005" graduation, .125" range balanced dial (Mil. Spec.)$225DDG-125C"V" Base dial depth gage with .0005" graduation, .125" range continuous dial$2252DM125-05AYReplacement indicator, .0005" graduation, .125" range, balanced dial, push down series$1652DM125-05GYReplacement indicator, .0005" graduation, .125" range, continuous dial, push down series$165DDG-125NI"V" Base with contact, less indicator$115DDG-CASEFitted storage box$45 .125" Range

:

.0005" Graduation dial indicator Ground hardened steel base Base is 2.5" x .5" Interchangeable hardened steelgaging contact Also available with digital indicator
Shown is DDG-125C

Proudly made in the USA B-1
