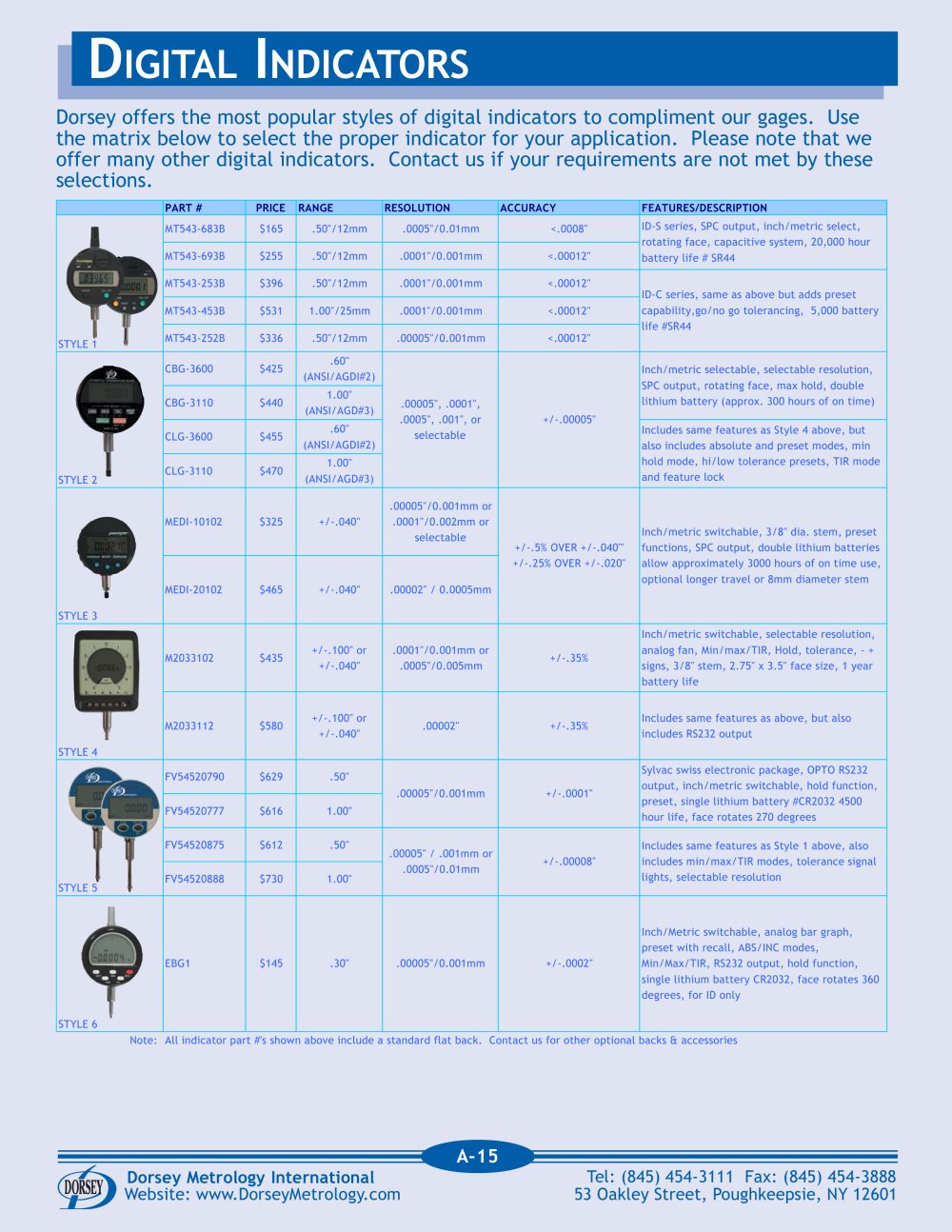

Digital Indicators
Dorsey offers the most popular styles of digital indicators to compliment our gages. Use the matrix below to select the proper indicator for your application. Please note that we offer many other digital indicators. Contact us if your requirements are not met by these selections.
STYLE 1
PART #
PRICE
RANGE
RESOLUTION
ACCURACY
FEATURES/DESCRIPTION
MT543-683B
$165
.50712mm
.000570.01mm
<.0008"
ID-S series, SPC output, inch/metric select, rotating face, capacitive system, 20,000 hour battery life # SR44
MT543-693B
$255
.50712mm
.000170.001mm
<.00012"
MT543-253B
$396
.50712mm
.000170.001mm
<.00012"
ID-C series, same as above but adds preset capability,go/no go tolerancing, 5,000 battery life #SR44
MT543-453B
$531
1.00725mm
.0001"/0.001mm
<.00012"
MT543-252B
$336
.50712mm
.0000570.001mm
<.00012"
CBG-3600
$425
.60" (ANSI/AGDI#2)
.00005", .0001", .0005", .001", or selectable
+/-.00005"
Inch/metric selectable, selectable resolution, SPC output, rotating face, max hold, double lithium battery (approx. 300 hours of on time)
CBG-3110
$440
1.00" (ANSI/AGD#3)
CLG-3600
$455
.60" (ANSI/AGDI#2)
Includes same features as Style 4 above, but also includes absolute and preset modes, min hold mode, hi/low tolerance presets, TIR mode and feature lock
CLG-3110
$470
1.00"
(ANSI/AGD#3)
MEDI-10102
$325
+/-.040"
.0000570.001mm or .0001"/0.002mm or selectable
+/-.5% OVER +/-.040"' +/-.25% OVER +/-.020"
Inch/metric switchable, 3/8" dia. stem, preset functions, SPC output, double lithium batteries allow approximately 3000 hours of on time use, optional longer travel or 8mm diameter stem
MEDI-20102
$465
+/-.040"
.00002" / 0.0005mm
M2033102
$435
+/-.100" or +/-.040"
.0001"/0.001mm or .0005"/0.005mm
+/-.35%
Inch/metric switchable, selectable resolution, analog fan, Min/max/TIR, Hold, tolerance, - + signs, 3/8" stem, 2.75" x 3.5" face size, 1 year battery life
M2033112
$580
+/-.100" or
+/-.040"
.00002"
+/-.35%
Includes same features as above, but also includes RS232 output
FV54520790
$629
.50"
.0000570.001mm
+/-.0001"
Sylvac swiss electronic package, OPTO RS232 output, inch/metric switchable, hold function, preset, single lithium battery #CR2032 4500 hour life, face rotates 270 degrees
FV54520777
$616
1.00"
FV54520875
$612
.50"
.00005" / .001mm or .000570.01mm
+/-.00008"
Includes same features as Style 1 above, also includes min/max/TIR modes, tolerance signal lights, selectable resolution
FV54520888
$730
1.00"
EBG1
$145
.30"
.0000570.001mm
+/-.0002"
Inch/Metric switchable, analog bar graph, preset with recall, ABS/INC modes, Min/Max/TIR, RS232 output, hold function, single lithium battery CR2032, face rotates 360 degrees, for ID only
STYLE 2
STYLE 3
STYLE 4
It
STYLE 5 I
STYLE 6
Note: All indicator part #'s shown above include a standard flat back. Contact us for other optional backs & accessories
