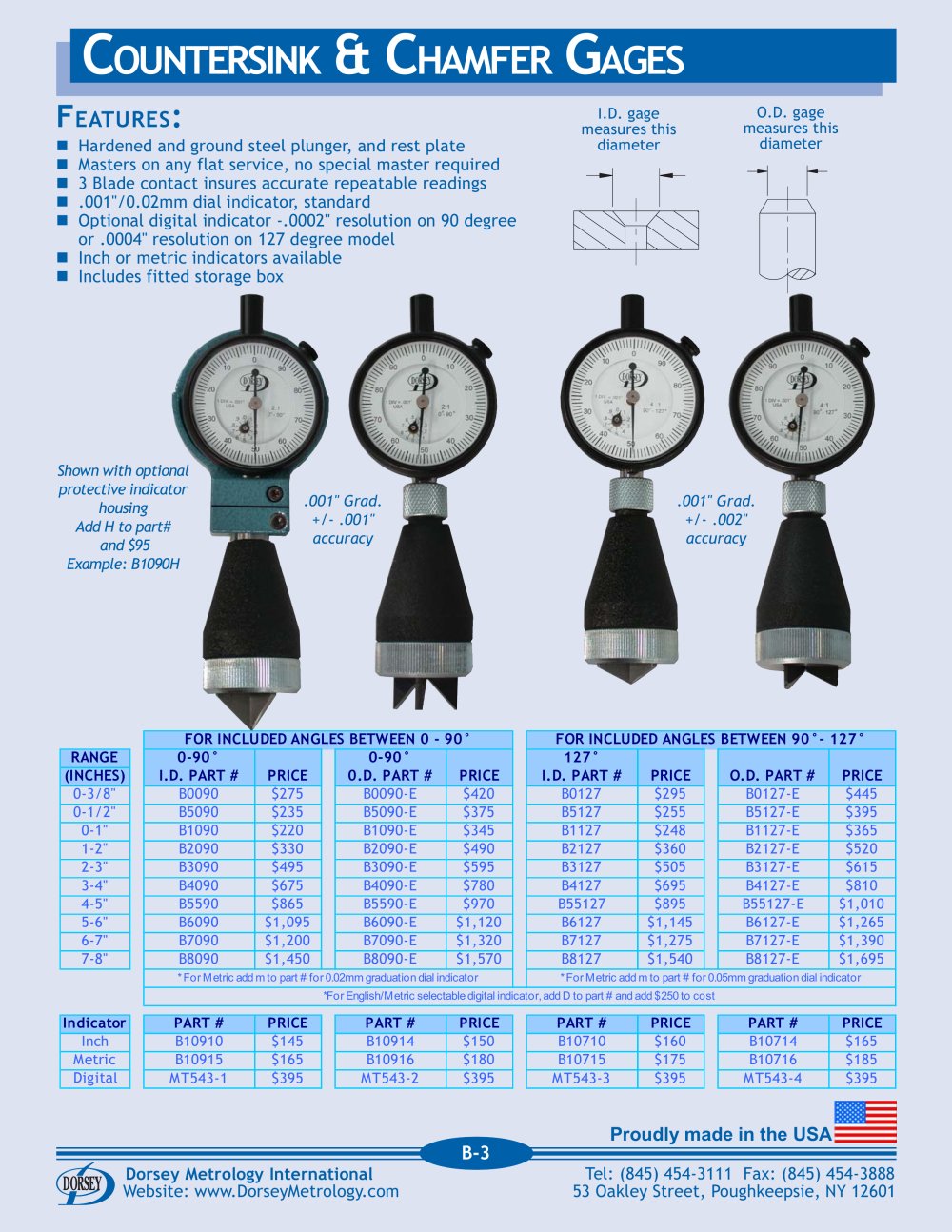

Countersink & Chamfer Gages

■

Features:

I.D. gage measures this diameter

O. D. gage measures this diameter

■ Hardened and ground steel plunger, and rest plate

■ Masters on any flat service, no special master required

■ 3 Blade contact insures accurate repeatable readings

■ .001"/0.02mm dial indicator, standard

■ Optional digital indicator -.0002" resolution on 90 degree or .0004" resolution on 127 degree model

■ Inch or metric indicators available

■ Includes fitted storage box

Shown with optional protective indicator housing Add H to part#

and $95 Bomple: B1090H

.001" Grad. '(gj +/- .001" accuracy

. 001" Grad. +/ -. 002" accuracy

FOR INCLUDED ANGLES BETWEEN 0 - 90°

FOR INCLUDED ANG LES BETWEEN 90°- 127°

RANGE


0-90° I. D. PART #	PRICE	0-90° 0.D. PART #	PRICE	127° I.D. PART #	PRICE	O. D. PART #	PRICE
B0090	$275	B0090-E	$420	B0127	$295	B0127-E	$445
B5090	$235	B5090-E	$375	B5127	$255	B5127-E	$395
B1090	$220	B1090-E	$345	B1127	$248	B1127-E	$365
B2090	$330	B2090-E	$490	B2127	$360	B2127-E	$520
B3090	$495	B3090-E	$595	B3127	$505	B3127-E	$615
B4090	$675	B4090-E	$780	B4127	$695	B4127-E	$810
B5590	$865	B5590-E	$970	B55127	$895	B55127-E	$1,010
B6090	$1,095	B6090-E	$1,120	B6127	$1,145	B6127-E	$1,265
B7090	$1,200	B7090-E	$1,320	B7127	$1,275	B7127-E	$1,390
B8090	$1,450	B8090-E	$1,570	B8127	$1,540	B8127-E	$1,695
* For Metric add m to part # for 0.02mm graduation dial indicator				* For Metric add m to part # for 0.05mm graduation dial indicator
*For English/Metric selectable digital indicator, add D to part # and add $250 to cost

(INCHES)

0-3/ 8"

0-1/ 2"

0-1"

1-2"

2-3"

3-4"

4-5"

5-6"

6-7"

7-8"

Indicator

Inch

Metric

Dgital

Proudly made in the USA

B-3

Cdorse

Dorsey Metrology International

Website: www. DorseyMet rol ogy. com

Tel: (845) 454-3111 Fax: (845) 454-3888 53 Oakley Street, Poughkeepsie, NY 12601
