Live Center & Spindle Work-Stop
31Pages

{{requestButtons}}

Catalog excerpts

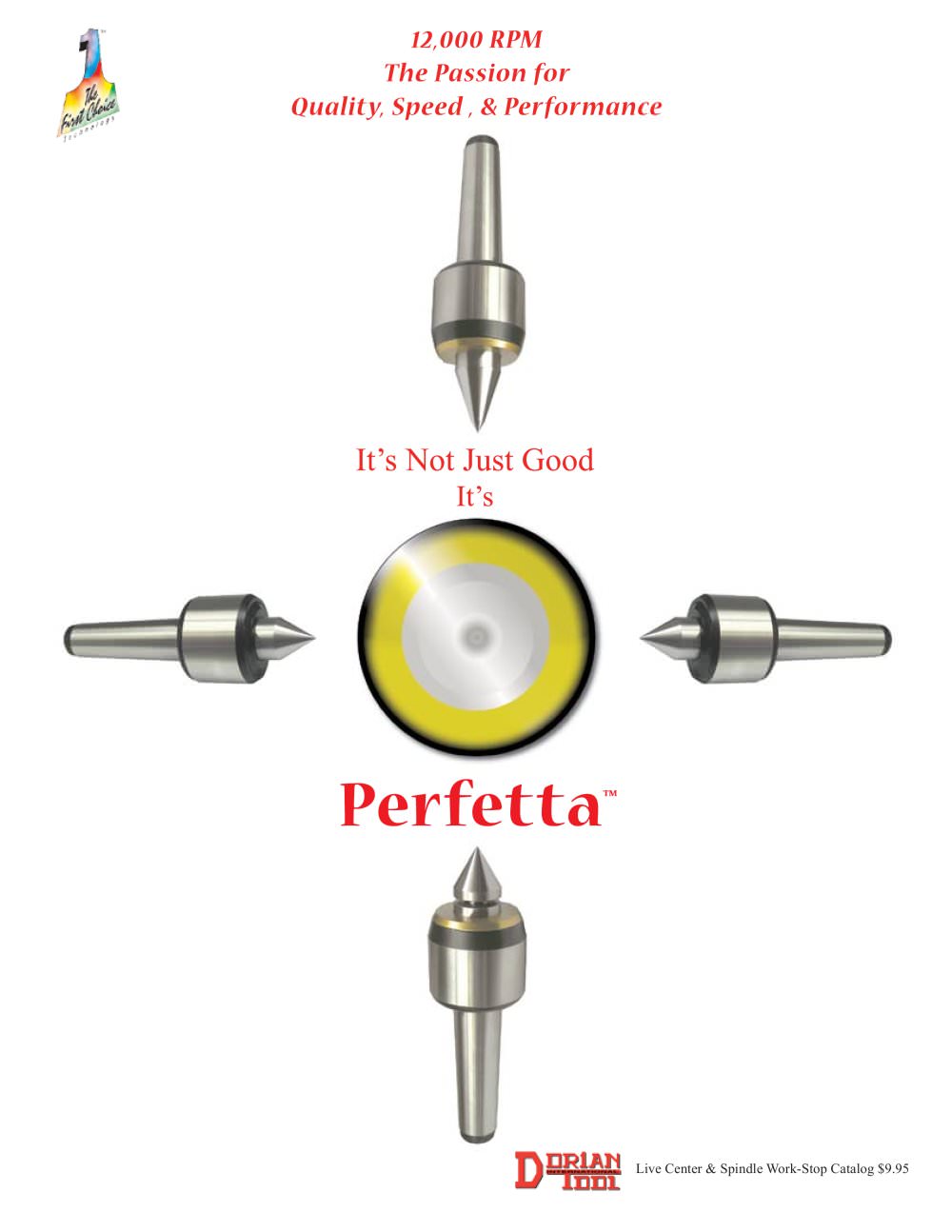

Live Center & Spindle Work-Stop - 1

Quality, Speed, & Performance

Open the catalog to page 1
Live Center & Spindle Work-Stop - 2

A Word from the President: ^^^^4 ince the introduction of the Quadra Index Tool » Post in 1982, the Dorian Evolution has never stopped. By developing new ideas and promoting A new technology, Dorian Tool has continuously improved our service, technical support, and Today, Dorian Tool offers a wide selection of products for manual and CNC machines. From carbide inserts to toolholders; knurling tools to marking tools; machine tool accessories to automated turrets & rotary tables; tool setters to tool presetters; our tool selection has become the First Choice Technology for thousands of small...

Open the catalog to page 2
Live Center & Spindle Work-Stop - 3

Perfetta™ Live Center The evolution never ends, -^H^^. orian Tool International introduces the Perfetta™ Live Center. These live centers, which have already been recognized throughout the rest of the industrial world .^^^^^^ as the most precise live centers ever built, are now available to the American machine tool industry. Designed for turning on a CNC lathe or for use on a CNC grinding machine, the Perfetta™ Live Center has over 50 years of proven workmanship. Where speed, precision and dependability are the requirements, these tools guarantee The Perfetta™ Live Center is manufactured...

Open the catalog to page 3
Live Center & Spindle Work-Stop - 4

Style Features Application • Precision Concentricity TRI .00015 • Medium Turning Speed • General Turning Application • Light to Medium Workpiece • Precision Concentricity TRI .00015 • Heavy Roughing & Precision Finishing • Heavy Duty Precision Quad Bearings • Precision Turning • The Bearings are Permanently Lubricated • Medium Turning Speed • Chromium-Molybdenum Alloy Steel • High Performance Turning Application • Surface Heat Treated to 62 Rc and Precision Ground • Medium to Heavy Workpiece • Precision Concentricity TRI .00015 • Heavy Roughing & Precision Finishing • Heavy Duty Precision...

Open the catalog to page 4
Live Center & Spindle Work-Stop - 5

Style CNC Super High Speed Heavy Duty Live Center Features Application • Precision Concentricity TRI .0001 • Heavy Roughing & Precision Finishing • Triple Crown Super Precision Angular Ball Bearing • Super Precision Turning • The Bearings are permanently lubricated • Sealed with Lip Seal and locked with a brass shield • High Turning Speed Up to 12000 RPM • Chromium-Molybdenum Alloy Steel Heavy Duty Live Center w/Interchangeable Point • Super Precision Turning & Grinding Application • Surface Heat Treated to 62 Rc and Precision Ground CNC Super High Speed • Precision Concentricity TRI .0001...

Open the catalog to page 5
Live Center & Spindle Work-Stop - 6

Perfetta™ Live Center Identification System PLC Perfetta™ Live Center EXS —60° Extended Standard Point 60° Extended Carbide Point PRE- Precision General Purpose HD A-Heavy Duty Application SPA-Super Precision Application Morse Taper Morse Taper Size 1 Morse Taper Size 2 Morse Taper Size 3 Morse Taper Size 4 Morse Taper Size 5 Morse Taper Size 6 MT6X-MT Size 6 Extra Heavy Duty Interchangeable Point 60° Interchangeable Steel Point 60° Interchangeable Carbide Point 60° Mini Sized Point 60° Undersized Point with Carbide Tip 60° Small Bull Nose Point 60° Medium Bull Nose Point 60° Large Bull...

Open the catalog to page 6
Live Center & Spindle Work-Stop - 7

Chromium-Molybdenum Alloy Steel precision ground for strength High-Precision Needle Bearing supports the extended spindle body. This reduces deflection, increases rigidity and neutralizes vibration. Prevents penetration of dirt and coolant. Precision Taper Roller Bearing will sustain heavy radial and axial load without compromising precision. Center Shaft makes the maintenance and bearings replacement simple when dismounting. Full Axial Thrust-bearing load is braced with a large thrust-bearing cage and is supported from the Live Center body. Precision Ball Thrust-bearing to minimize...

Open the catalog to page 7
Live Center & Spindle Work-Stop - 8

Perfetta™ Heavy Duty Live Center FOUR BEARINGS HIGH ACCURACY MEDIUM SPEEDS HEAVY DUTY APPLICATION LIFE TIME LUBRICATION LONG LIFE Chromium-Molybdenum Alloy Steel precision ground for strength High-Precision Double Needle Bearings support the extended spindle body. This reduces deflection, increases rigidity and neutralize vibration. Precision Taper Roller Bearing will sustain heavy radial and axial load without compromising precision. Center Shaft makes the maintenance and bearings replacement simple when dismounting. Full Axial Thrust-bearing load is braced with a large thrust-bearing cage...

Open the catalog to page 8
Live Center & Spindle Work-Stop - 9

Perfetta™ Heavy Duty Live Center with Interchangeable Point Extended Point Undersized Point Bull Nose Point For a full range of center points see pages 13-14. Heavy Duty Live Center with 60° Interchangeable Point For Extraction Point Wrench NOT Supplied see page 14. sales@doriantool.com 615 County Road 219 East Bernard Tx 77435 979-282-2861 FAX: 979-282-2951 7

Open the catalog to page 9
Live Center & Spindle Work-Stop - 10

Perfetta™ CNC High Speed Heavy Duty Live Center FOUR BEARINGS HIGH ACCURACY HIGH SPEEDS HEAVY DUTY APPLICATION LIFE TIME LUBRICATION LONG LIFE Chromium-Molybdenum Alloy Steel precision ground for strength High-Precision Needle Bearings support the extended spindle body. This reduces deflection, increases rigidity and neutralize vibration. Center Shaft makes the maintenance and bearings replacement simple when dismounting. Full Axial Thrust-bearing load is braced with a large thrust-bearing cage and is supported from the Live Center body. Precision Ball Bearing will sustain heavy radial and...

Open the catalog to page 10
Live Center & Spindle Work-Stop - 11

Perfetta™ CNC High Speed Heavy Duty Live Center Heavy Duty Live Center with Interchangeable Point For Extraction Point Wrench NOT Supplied see page 14. For 6 piece SET and a full range of center points see pages 12-14 CNC High Speed CNC High Speed Heavy Duty Live Center Heavy Duty Live Center with Extended Point with Extended Point & Carbide Tip sales@doriantool.com 615 County Road 219 East Bernard Tx 77435 979-282-2861 FAX: 979-282-2951 9

Open the catalog to page 11
Live Center & Spindle Work-Stop - 12

Perfetta™ CNC Super High Speed Heavy Duty Live Center • FOUR BEARINGS . HEAVY DUTY APPLICATION • HIGH ACCURACY . LIFE TIME LUBRICATION • HIGH SPEEDS . LONG LIFE Chromium-Molybdenum Alloy Steel precision ground for strength Center Shaft makes the maintenance and bearings replacement simple when dismounting. High-Precision Needle Bearing support the extended spindle body. This reduces deflection, increases rigidity and neutralize vibration. the Live Center from the tail stock. Triple Crown Super Precision Angular Ball Bearings with low friction angular ball thrust bearing, and one precision...

Open the catalog to page 12
