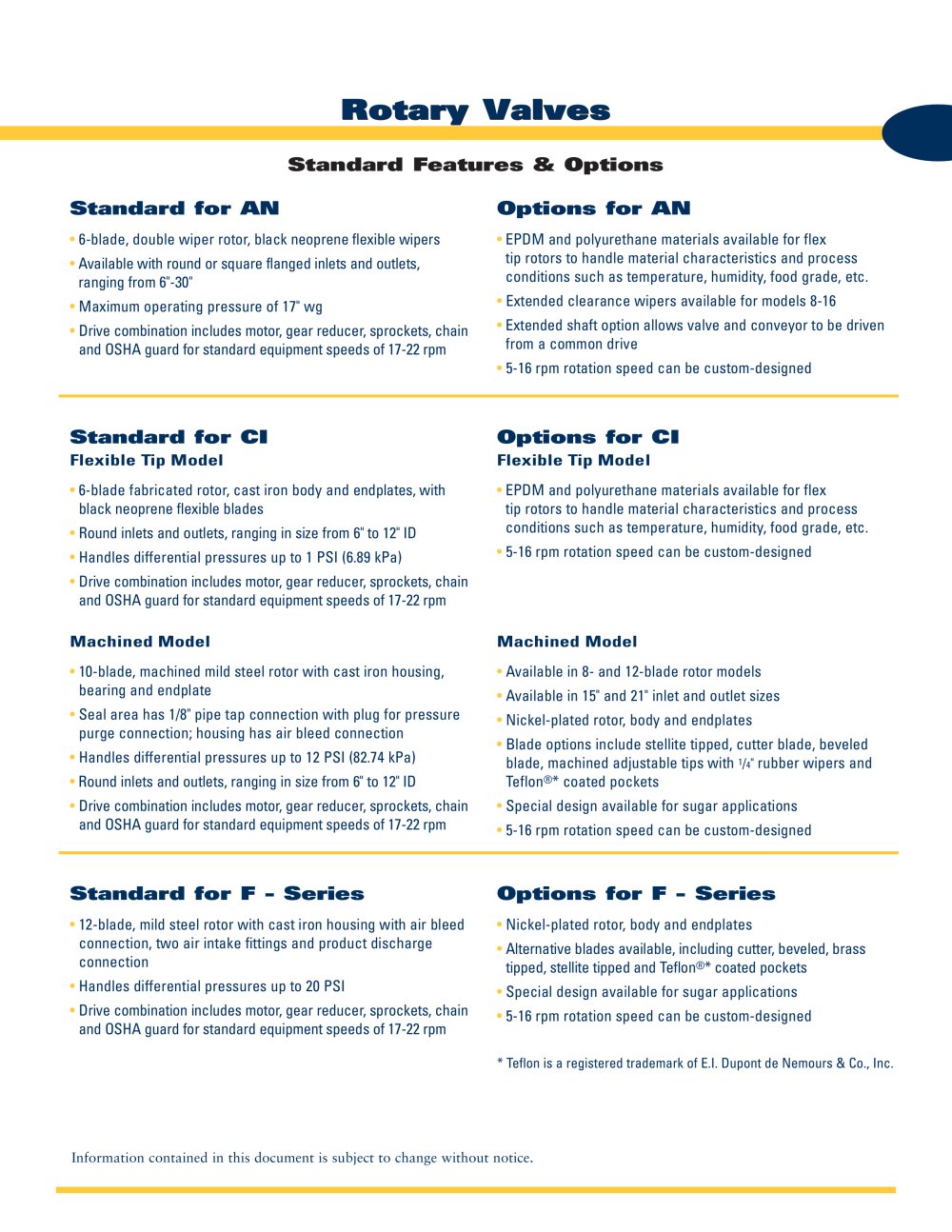

| Rotary Valves | |||
| | |||
| Standard Features & Options | |||
| | |||
| Standard for AN 6-blade, double wiper rotor, black neoprene flexible wipers Available with round or square flanged inlets and outlets, ranging from 6"-30" Maximum operating pressure of 17" wg Drive combination includes motor, gear reducer, sprockets, chain and OSHA guard for standard equipment speeds of 17-22 rpm | Options for AN EPDM and polyurethane materials available for flex tip rotors to handle material characteristics and process conditions such as temperature, humidity, food grade, etc. Extended clearance wipers available for models 8-16 Extended shaft option allows valve and conveyor to be driven from a common drive 5-16 rpm rotation speed can be custom-designed | ||
| | |||
| Standard for CI Flexible Tip Model 6-blade fabricated rotor, cast iron body and endplates, with black neoprene flexible blades Round inlets and outlets, ranging in size from 6" to 12" ID Handles differential pressures up to 1 PSI (6.89 kPa) Drive combination includes motor, gear reducer, sprockets, chain and OSHA guard for standard equipment speeds of 17-22 rpm Machined Model 10-blade, machined mild steel rotor with cast iron housing, bearing and endplate Seal area has 1/8" pipe tap connection with plug for pressure purge connection; housing has air bleed connection Handles differential pressures up to 12 PSI (82.74 kPa) Round inlets and outlets, ranging in size from 6" to 12" ID Drive combination includes motor, gear reducer, sprockets, chain and OSHA guard for standard equipment speeds of 17-22 rpm | Options for CI Flexible Tip Model EPDM and polyurethane materials available for flex tip rotors to handle material characteristics and process conditions such as temperature, humidity, food grade, etc. 5-16 rpm rotation speed can be custom-designed | ||
| Machined Model Available in 8- and 12-blade rotor models Available in 15" and 21" inlet and outlet sizes Nickel-plated rotor, body and endplates Blade options include stellite tipped, cutter blade, beveled blade, machined adjustable tips with W rubber wipers and Teflon®* coated pockets Special design available for sugar applications 5-16 rpm rotation speed can be custom-designed | |||
| | |||
| Standard for F - Series 12-blade, mild steel rotor with cast iron housing with air bleed connection, two air intake fittings and product discharge connection Handles differential pressures up to 20 PSI Drive combination includes motor, gear reducer, sprockets, chain and OSHA guard for standard equipment speeds of 17-22 rpm | Options for F - Series Nickel-plated rotor, body and endplates Alternative blades available, including cutter, beveled, brass tipped, stellite tipped and Teflon®* coated pockets Special design available for sugar applications 5-16 rpm rotation speed can be custom-designed Teflon is a registered trademark of E.I. Dupont de Nemours & Co., Inc. | ||
| | |||
| Information contained in this document is subject to change without notice. | |||
| | |||
