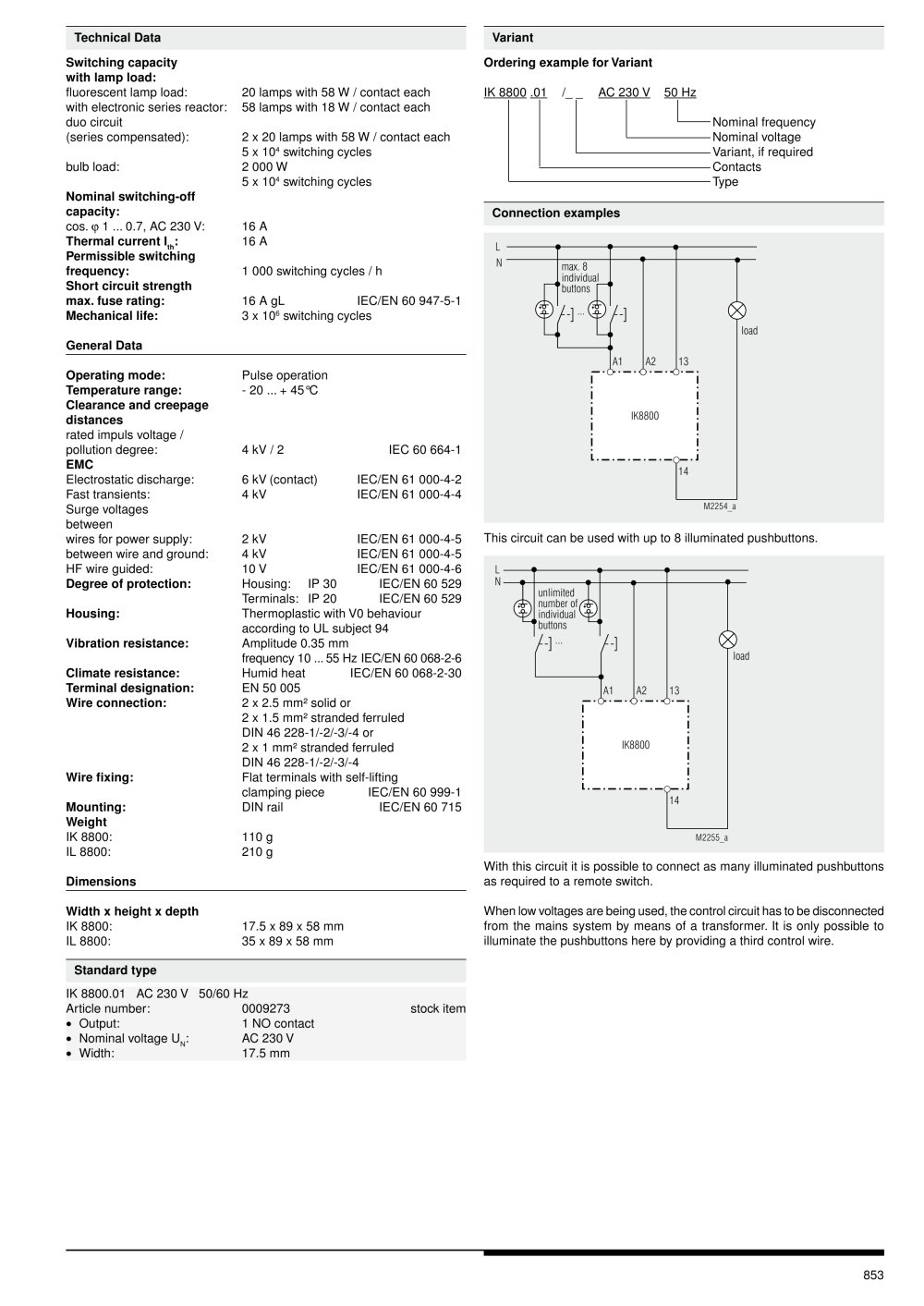

Technical Data Variant Switching capacity with lamp load: fluorescent lamp load: with electronic séries reactor: duo circuit (series compensated): bulb load: Nominal switching-off capacity: cos. cp 1 ... 0.7, AC 230 V: Thermal current Ith: Permissible switching frequency: Short circuit strength max. fuse rating: Mechanical life: General Data 20 lamps with 58 W / contact each 58 lamps with 18 W / contact each 2 x 20 lamps with 58 W / contact each 5 x 104 switching cycles 2 000 W 5 x 104 switching cycles Ordering example for Variant IK 8800 Jîl /__AC 230 V 50 Hz Connection examples Nominal frequency Nominal voltage Variant, if required Contacts -Type 16 A 16 A 1 000 switching cycles / h 16 A gL IEC/EN 60 947-5-1 3 x 106 switching cycles Operating mode: Temperature range: Clearance and creepage distances rated impuls voltage / pollution degree: EMC Electrostatic discharge: Fast transients: Surge voltages between wires for power supply: between wire and ground: HF wire guided: Degree of protection: Housing: Vibration resistance: Climate resistance: Terminal designation: Wire connection: Pulse operation - 20 ... + 45°C 4 kV / 2 6 kV (contact) 4 kV IEC 60 664-1 IEC/EN 61 000-4-2 IEC/EN 61 000-4-4 2 kV IEC/EN 61 000-4-5 4 kV IEC/EN 61 000-4-5 10 V IEC/EN 61 000-4-6 Housing: IP 30 IEC/EN 60 529 Terminals: IP 20 IEC/EN 60 529 Thermoplastic with V0 behaviour according to UL subject 94 Amplitude 0.35 mm frequency 10 ... 55 Hz IEC/EN 60 068-2-6 Humid heat IEC/EN 60 068-2-30 EN 50 005 2 x 2.5 mm2 solid or 2 x 1.5 mm2 stranded ferruled DIN 46 228-1/-2/-3/-4 or 2 x 1 mm2 stranded ferruled DIN 46 228-1/-2/-3/-4 Flat terminals with self-lifting This circuit can be used with up to 8 illuminated pushbuttons. unlimited number of^S individual ' buttons load A1 A2 13 _.<>._.o---o--: Wire fixing: IK8800 ----------_. J clamping piece IEC/EN 60 999-1 Mounting: DIN rail IEC/EN 60 715 Weight IK 8800: 110 g IL 8800: 210 g Dimensions Width x height x depth IK 8800: 17.5 x 89 x 58 mm IL 8800: 35 x 89 x 58 mm Standard type IK 8800.01 AC 230 V 50/60 Hz Article number: 0009273 stock item • Output: 1 NO contact • Nominal voltage UN: AC 230 V • Width: 17.5 mm 14 M2255_a With this circuit it is possible to connect as many illuminated pushbuttons as required to a remote switch. When low voltages are being used, the control circuit has to be disconnected from the mains system by means of a transformer. It is only possible to illuminate the pushbuttons here by providing a third control wire. 853
