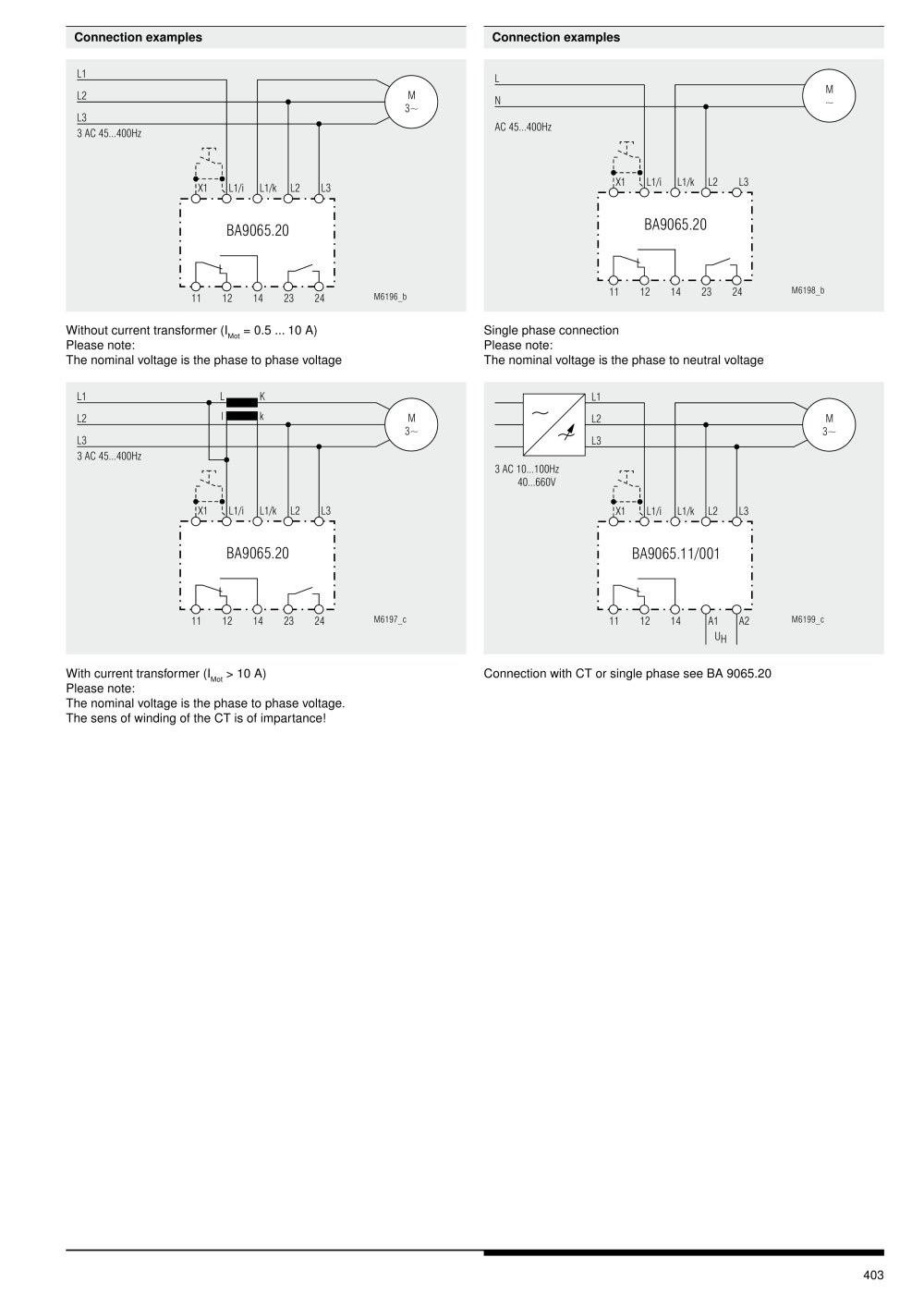

Connection examples Connection examples L1 L L2 N L3 AC 45...400Hz 3AC 45...400Hz 1X1 i, L1/i L1/k L2 L3 ■0---0--O--0---O- !X1 N ■0---0 L1/i L1/k L2 L3 ^-■ô--o--o- BA9065.20 BA9065.20 11 12 14 23 24 M6196_b 11 12 14 23 24 M6198_b Without current transformer (IMot = 0.5 ... 10 A) Please note: The nominal voltage is the phase to phase voltage Single phase connection Please note: The nominal voltage is the phase to neutral voltage L1 L2 L3 3AC 45...400Hz !X1 s L1/l L2 L1/k L 3 -0---0--0--0---0 BA9065.20 M6197_c 11 12 14 23 24 With current transformer (IMot > 10 A) Connection with CT or single phase see BA 9065.20 Please note: The nominal voltage is the phase to phase voltage. The sens of winding of the CT is of impartance! 403
