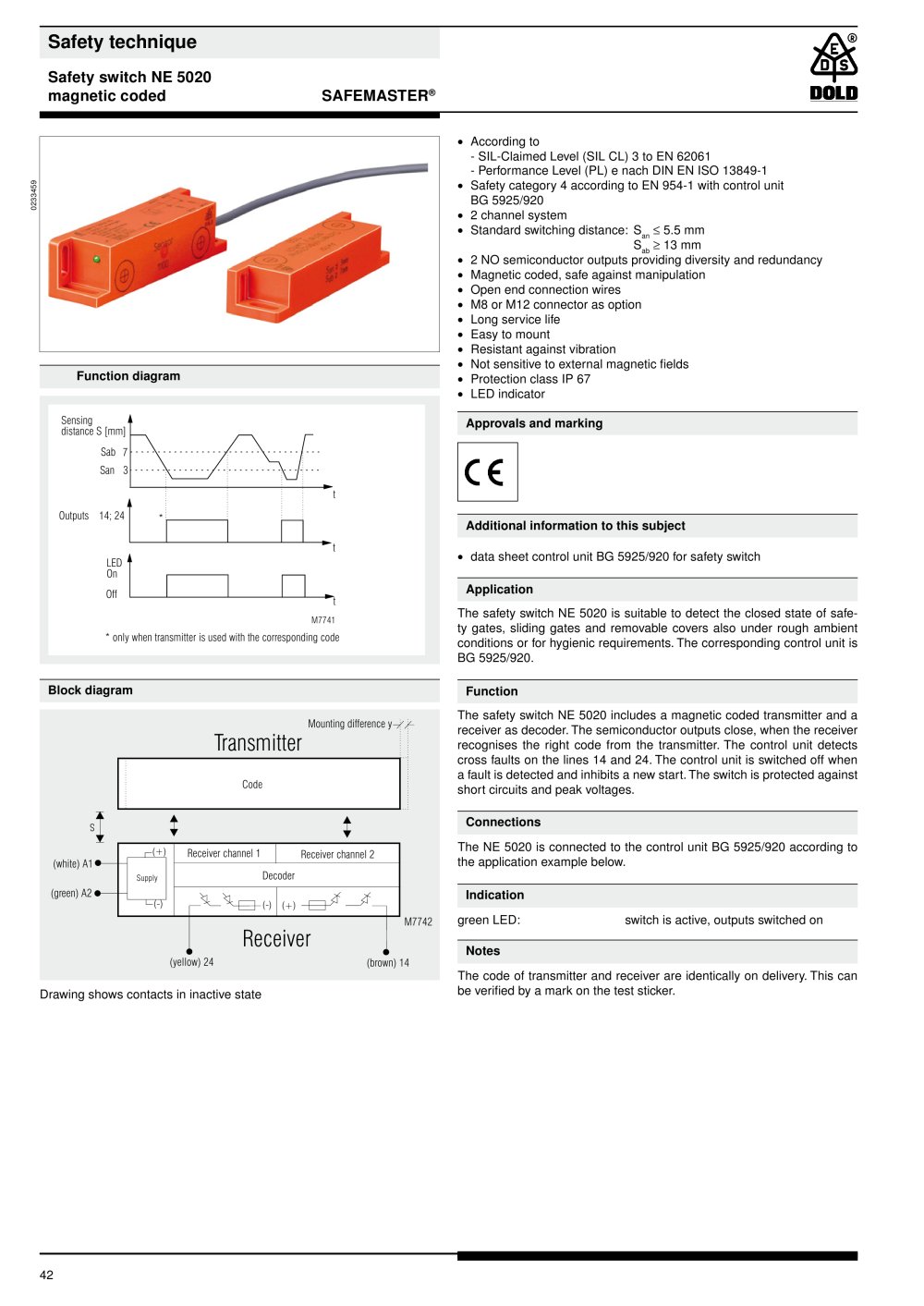

Safety technique Safety switch NE 5020 magnetic coded SAFEMASTER® • According to - SIL-Claimed Level (SIL CL) 3 to EN 62061 - Performance Level (PL) e nach DIN EN ISO 13849-1 • Safety category 4 according to EN 954-1 with control unit BG 5925/920 • 2 channel system • Standard switching distance: San < 5.5 mm s" > 13 mm ab • 2 NO semiconductor outputs providing diversity and redundancy • Magnetic coded, safe against manipulation • Open end connection wires • M8 or M12 connector as option • Long service life • Easy to mount • Resistant against vibration • Not sensitive to external magnetic fields • Protection class IP 67 • LED indicator Function diagram Sensing distances [mm] Sab 7 San 3 Outputs 14; 24 LED ' On Off 7\............/~\ r ...A / .......S / * t ~~ t t M7741 * only when transmitter is used with the corresponding code Approvals and marking Additional information to this subject • data sheet control unit BG 5925/920 for safety switch Application The safety switch NE 5020 is suitable to detect the closed state of safe-ty gates, sliding gates and removable covers also under rough ambient conditions or for hygienic requirements. The corresponding control unit is BG 5925/920. Block diagram Function Mounting différence y- The safety switch NE 5020 includes a magnetic coded transmitter and a receiver as decoder. The semiconductor outputs close, when the receiver recognises the right code from the transmitter. The control unit detects cross faults on the lines 14 and 24. The control unit is switched off when a fault is detected and inhibits a new start. The switch is protected against short circuits and peak voltages. Connections The NE 5020 is connected to the control unit BG 5925/920 according to the application example below. Indication green LED: switch is active, outputs switched on Notes The code of transmitter and receiver are identically on delivery. This can be verified by a mark on the test sticker. Transmitter S (white) A1 < (green) A2 • X Code Supply Receiver channel 1 Receiver channel 2 Decoder (+> -J>~— Receiver M7742 (yellow) 24 Drawing shows contacts in inactive state (brown) 14 42
