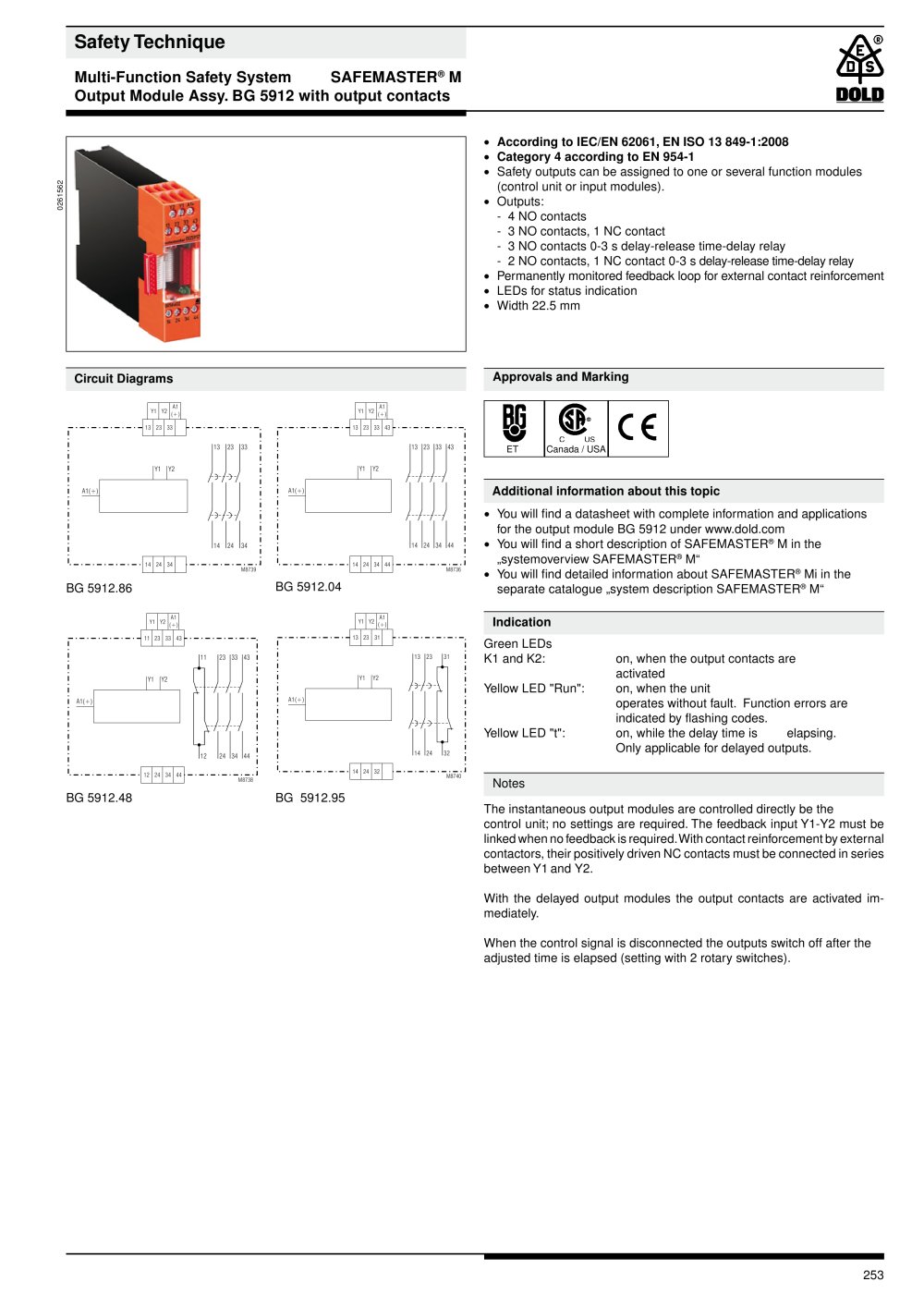

Safety Technique Multi-Function Safety System SAFEMASTER® M Output Module Assy. BG 5912 with output contacts • According to IEC/EN 62061, EN ISO 13 849-1:2008 • Category 4 according to EN 954-1 • Safety outputs can be assigned to one or several function modules (control unit or input modules). • Outputs: - 4 NO contacts - 3 NO contacts, 1 NC contact - 3 NO contacts 0-3 s delay-release time-delay relay - 2 NO contacts, 1 NC contact 0-3 s delay-release time-delay relay • Permanently monitored feedback loop for external contact reinforcement • LEDs for status indication • Width 22.5 mm Circuit Diagrams Approvals and Marking g) @ c us ET Canada / USA Additional information about this topic » You will find a datasheet with complete information and applications for the output module BG 5912 under www.dold.com » You will find a short description of SAFEMASTER® M in the „systemoverview SAFEMASTER® M" « You will find detailed information about SAFEMASTER® Mi in the separate catalogue „system description SAFEMASTER® M" BG 5912.86 BG 5912.04 Y1 Y2 |Y1H{+ -I 13 I 23 I 31 I Indication Green LEDs K1 and K2: Yellow LED "Run": on, when the output contacts are activated on, when the unit operates without fault. Function errors are indicated by flashing codes. on, while the delay time is elapsing. Only applicable for delayed outputs. H 11 23 33 43 h 11 123 133 143 1 3 23 31 Y1 Y2 A1(+) Y1 Y2 A1(+) Yellow LED "t": 14 24 32 12 124 134 144 12 24 34 44 14 24 32 M8740 Notes The instantaneous output modules are controlled directly be the control unit; no settings are required. The feedback input Y1-Y2 must be linked when no feedback is required. With contact reinforcement by external contactors, their positively driven NC contacts must be connected in series between Y1 and Y2. BG 5912.48 BG 5912.95 With the delayed output modules the output contacts are activated im-mediately. When the control signal is disconnected the outputs switch off after the adjusted time is elapsed (setting with 2 rotary switches). 253
|
