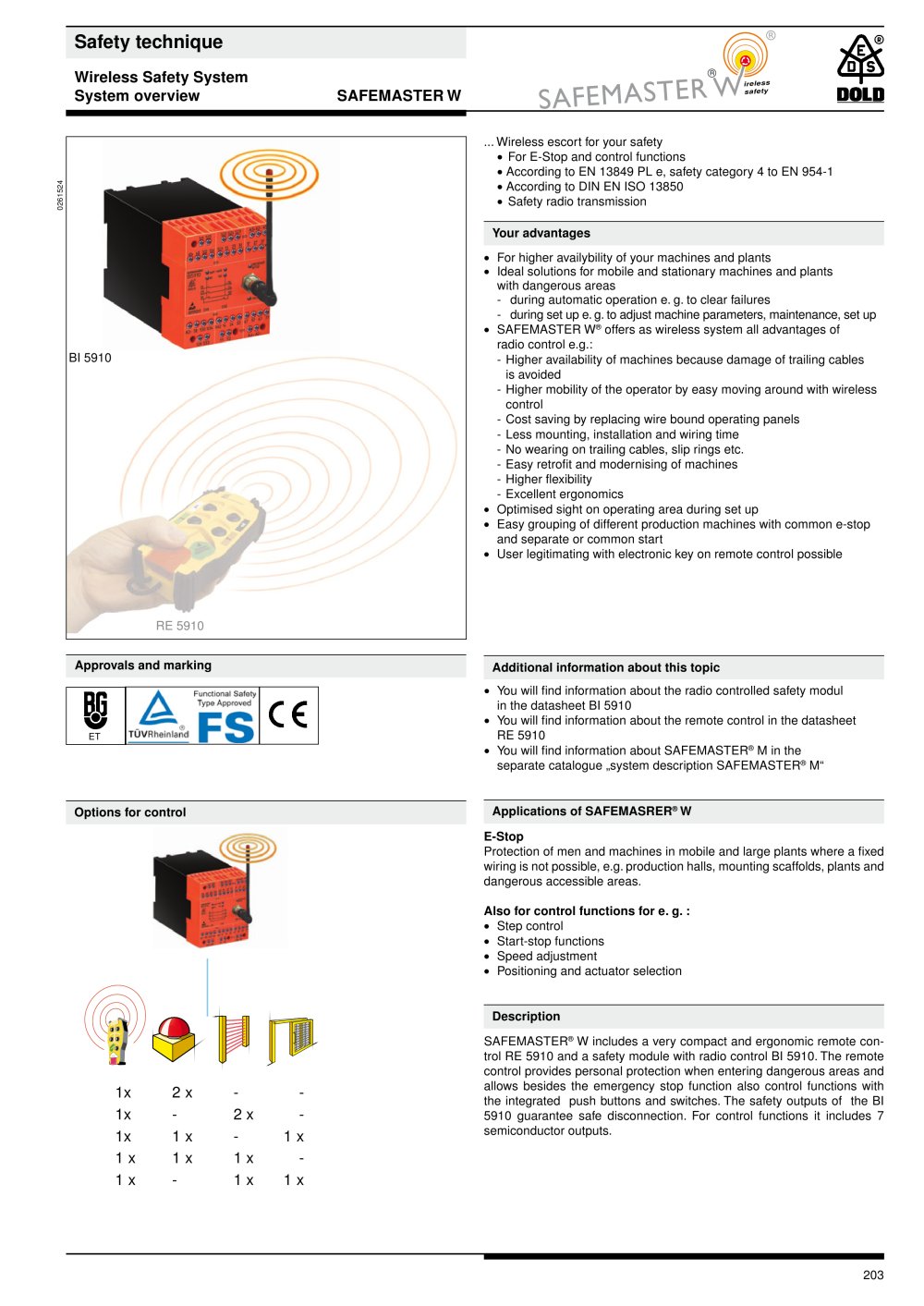

Safety technique Wireless Safety System System overview SAFEMASTERW SAFEMASTER in to o ... Wireless escort for your safety • For E-Stop and control functions • According to EN 13849 PL e, safety category 4 to EN 954-1 • According to DIN EN ISO 13850 • Safety radio transmission Your advantages • For higher availybility of your machines and plants • Ideal solutions for mobile and stationary machines and plants with dangerous areas - during automatic operation e. g. to clear failures - during set up e. g. to adjust machine parameters, maintenance, set up • SAFEMASTER W® offers as wireless system all advantages of radio control e.g.: - Higher availability of machines because damage of trailing cables is avoided - Higher mobility of the operator by easy moving around with wireless control - Cost saving by replacing wire bound operating panels - Less mounting, installation and wiring time - No wearing on trailing cables, slip rings etc. - Easy retrofit and modernising of machines - Higher flexibility - Excellent ergonomics • Optimised sight on operating area during set up • Easy grouping of different production machines with common e-stop and separate or common start • User legitimating with electronic key on remote control possible BI 5910 RE 5910 Approvals and marking Additional information about this topic A Functignsl Safaly Type Approvad FS • You will find information about the radio controlled safety modul in the datasheet BI 5910 • You will find information about the remote control in the datasheet TUVHheinlantl RE 5910 • You will find information about SAFEMASTER® M in the separate catalogue „system description SAFEMASTER® M" ET Options for control Applications of SAFEMASRER® W E-Stop Protection of men and machines in mobile and large plants where a fixed wiring is not possible, e.g. production halls, mounting scaffolds, plants and dangerous accessible areas. Also for control functions for e. g. : • Step control • Start-stop functions • Speed adjustment • Positioning and actuator selection Description SAFEMASTER® W includes a very compact and ergonomic remote con-trol RE 5910 and a safety module with radio control BI 5910. The remote control provides personal protection when entering dangerous areas and allows besides the emergency stop function also control functions with the integrated push buttons and switches. The safety outputs of the BI 5910 guarantee safe disconnection. For control functions it includes 7 semiconductor outputs. 1x 1x 1x 1 x 1 x 2 x 1 x 1 x 2 x 1 x 1 x 1 x 1 x 203
