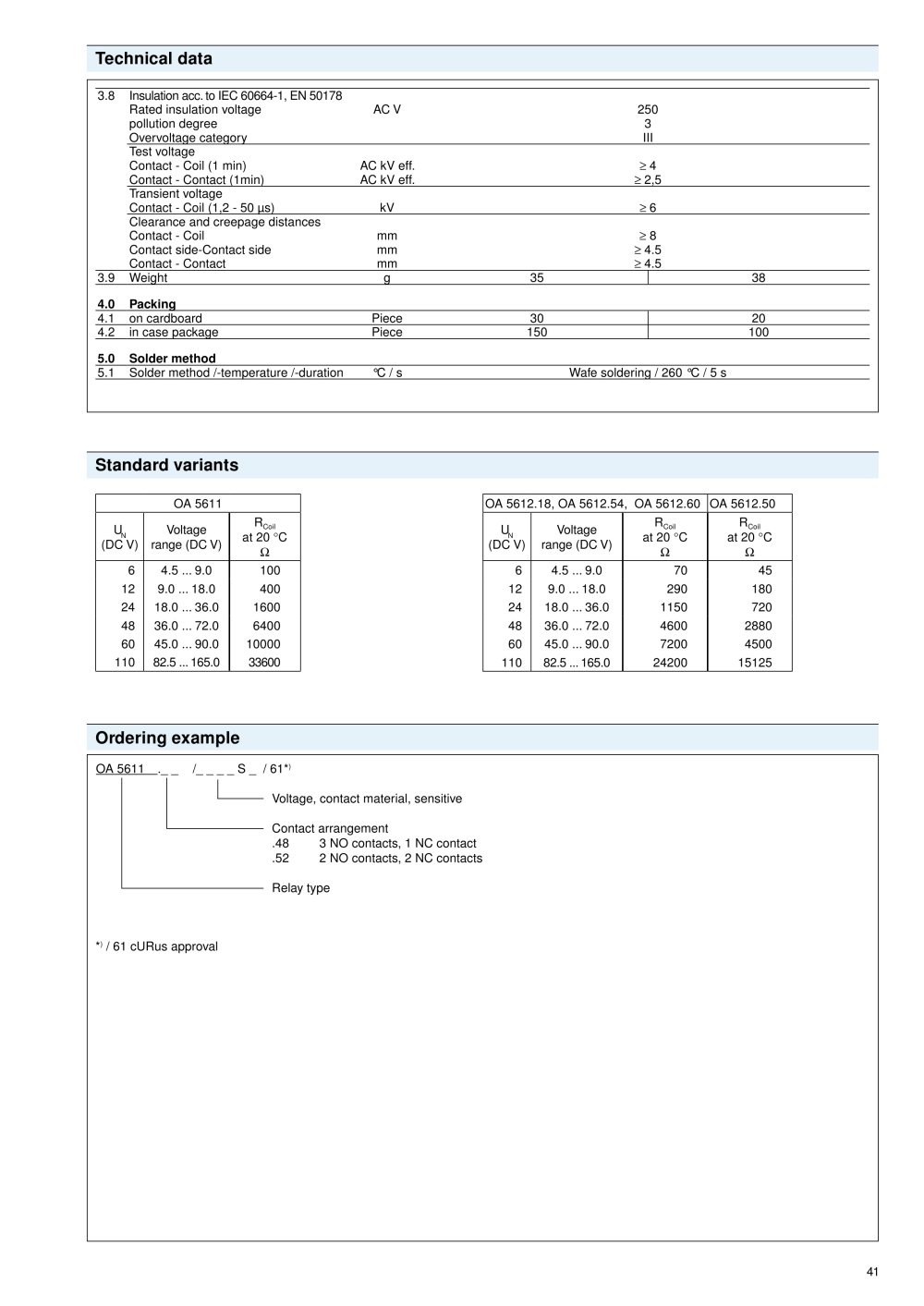

Technical data 3.8 Insulation acc. to IEC 60664-1, EN 50178 Rated insulation voltage pollution degree Overvoltage category AC V 250 3 III Test voltage Contact - Coil (1 min) Contact - Contact (1min) AC kV eff. AC kV eff. > 4 > 2,5 Transient voltage Contact - Coil (1,2 - 50 us) kV > 6 Clearance and creepage distances Contact - Coil Contact side-Contact side Contact - Contact mm mm mm > 8 > 4.5 > 4.5 3.9 Weight g 35 1 38 4.0 Packinq 4.1 on cardboard Piece 30 20 4.2 in case package Piece 150 100 5.0 Solder method 5.1 Solder method /-temperature /-duration °C / s Wafe soldering / 260 °C / 5 s Standard variants OA 5611_\ |OA 5612.18, OA 5612.54, OA 5612.60 |OA 5612.50 (DC V) Voltage range (DC V) RCoil at 20 °C Q (DC V) Voltage range (DC V) RCoil at 20 °C Q RCoil at 20 °C Q 6 4.5 ... 9.0 100 6 4.5 ... 9.0 70 45 12 9.0 ... 18.0 400 12 9.0 ... 18.0 290 180 24 18.0 ... 36.0 1600 24 18.0 ... 36.0 1150 720 48 36.0 ... 72.0 6400 48 36.0 ... 72.0 4600 2880 60 45.0 ... 90.0 10000 60 45.0 ... 90.0 7200 4500 110 82.5 ... 165.0 33600 110 82.5 ... 165.0 24200 15125 Ordering example OA 5611 ._ _ /_ . . S _ / 61* - Voltage, contact material, sensitive Contact arrangement .48 3 NO contacts, 1 NC contact .52 2 NO contacts, 2 NC contacts Relay type * / 61 cURus approval L 41
