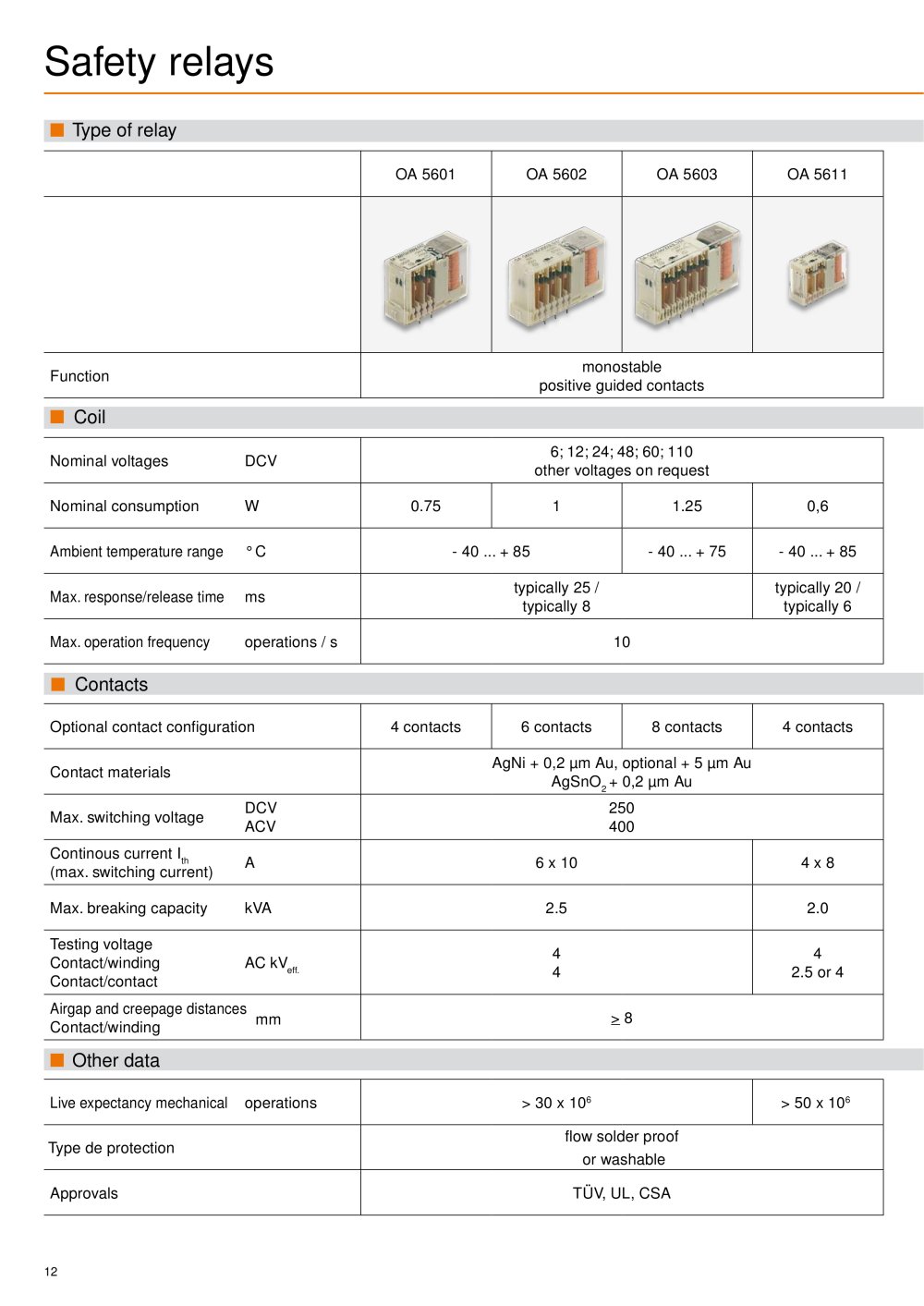

Safety relays ■ Type of relay OA 5601 OA 5602 OA 5603 OA 5611 <g$ 0 Function monostable positive guided contacts m Coil Nominal voltages DCV 6; 12; 24; 48; 60; 110 other voltages on request Nominal consumption W 0.75 1 1.25 0,6 Ambient temperature range ° C - 40 ... + 85 - 40 ... + 75 - 40 ... + 85 Max. response/release time ms typically 25 / typically 8 typically 20 / typically 6 Max. operation frequency operations / s 10 ■ Contacts Optional contact configuration 4 contacts 6 contacts 8 contacts 4 contacts Contact materials AgNi + 0,2 |jm Au, optional + 5 |jm Au AgSnO2 + 0,2 jim Au Max. switching voltage ADCCVV 250 400 Continous current Ith A (max. switching current) A 6 x 10 4 x 8 Max. breaking capacity kVA 2.5 2.0 Testing voltage Contact/winding AC kVeff Contact/contact 4 4 4 2.5 or 4 Airgap and creepage distances mm Contact/winding mm > 8 ■ Other data Live expectancy mechanical operations > 30 x 106 > 50 x 106 Type de protection flow solder proof or washable Approvals TUV, UL, CSA 12
