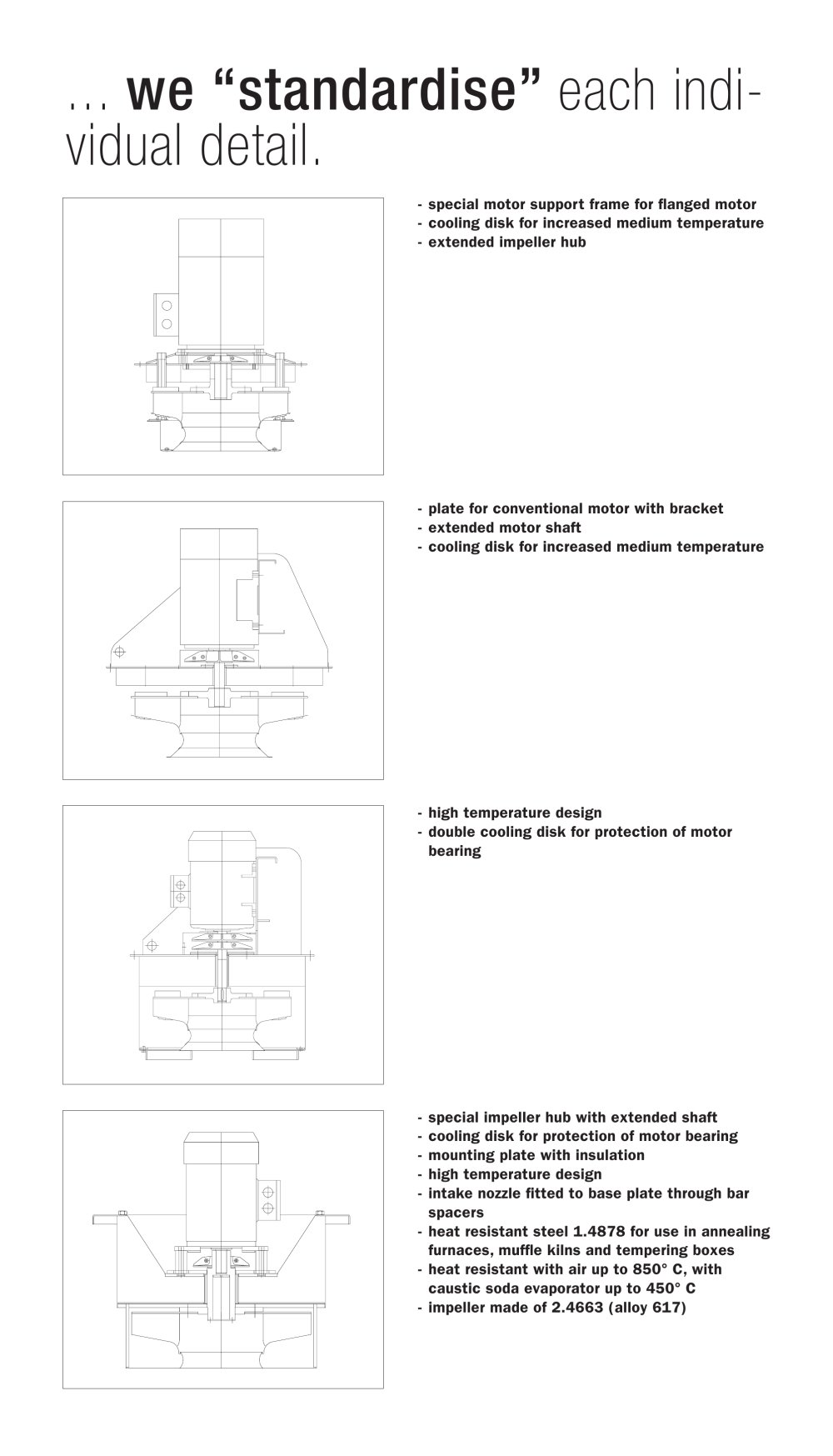

... we “standardise” each individual detail. - special motor support frame for flanged motor - cooling disk for increased medium temperature - extended impeller hub - plate for conventional motor with bracket - extended motor shaft - cooling disk for increased medium temperature - high temperature design - double cooling disk for protection of motor bearing - special impeller hub with extended shaft - cooling disk for protection of motor bearing - mounting plate with insulation - high temperature design - intake nozzle fitted to base plate through bar spacers - heat resistant steel 1.4878 for use in annealing furnaces, muffle kilns and tempering boxes - heat resistant with air up to 850° C, with caustic soda evaporator up to 450° C - impeller made of 2.4663 (alloy 617)
