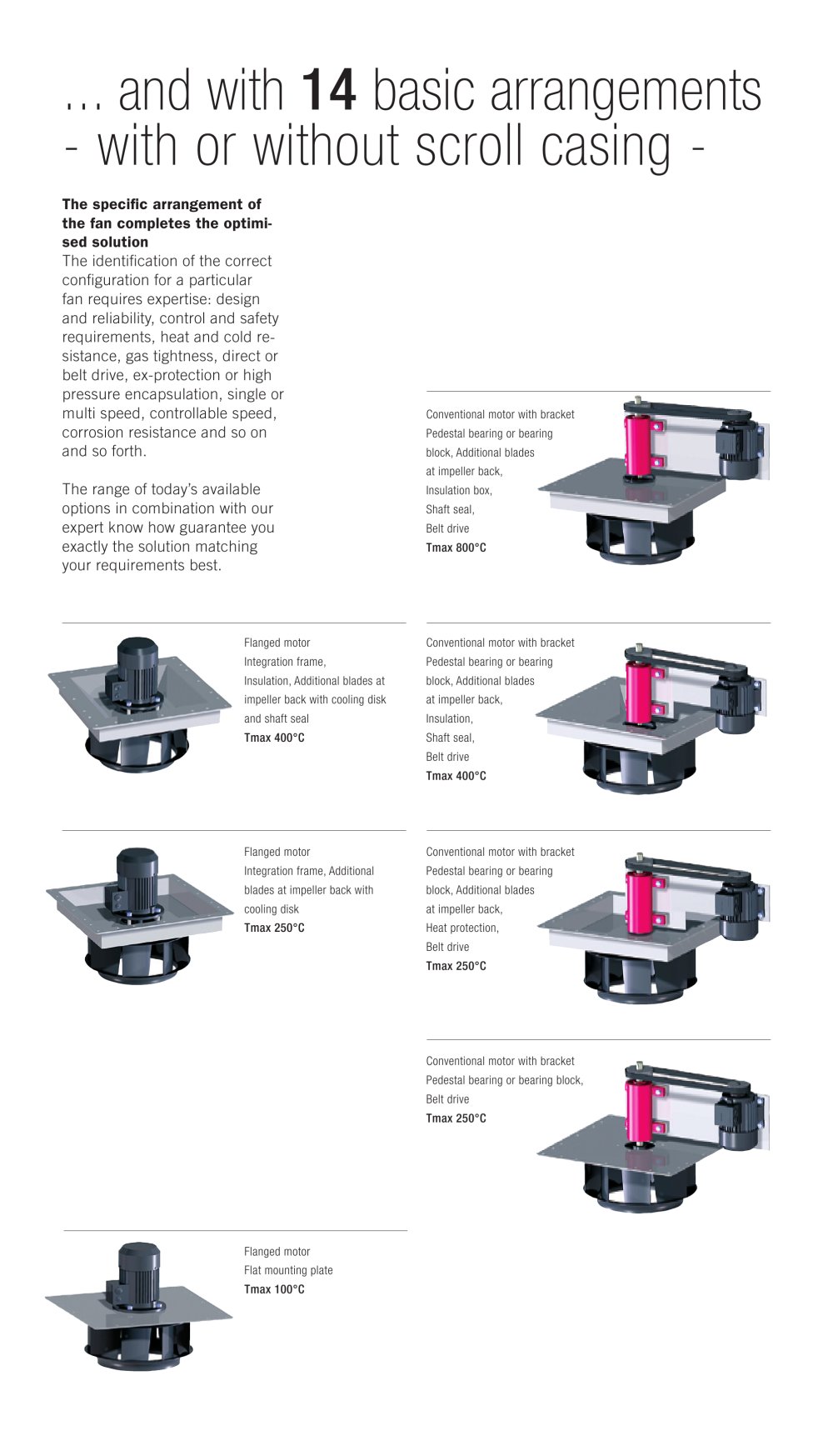

... and with 14 basic arrangements - with or without scroll casing - Conventional motor with bracket Pedestal bearing or bearing block, Additional blades at impeller back, Insulation box, Shaft seal, Belt drive Tmax 800°C Conventional motor with bracket Pedestal bearing or bearing block, Additional blades at impeller back, Insulation, Shaft seal, Belt drive Tmax 400°C Conventional motor with bracket Pedestal bearing or bearing block, Additional blades at impeller back, Heat protection, Belt drive Tmax 250°C Conventional motor with bracket Pedestal bearing or bearing block, Belt drive Tmax 250°C Flanged motor Integration frame, Insulation, Additional blades at impeller back with cooling disk and shaft seal Tmax 400°C Flanged motor Integration frame, Additional blades at impeller back with cooling disk Tmax 250°C Flanged motor Flat mounting plate Tmax 100°C The specific arrangement of the fan completes the optimised solution The identification of the correct configuration for a particular fan requires expertise: design and reliability, control and safety requirements, heat and cold resistance, gas tightness, direct or belt drive, ex-protection or high pressure encapsulation, single or multi speed, controllable speed, corrosion resistance and so on and so forth. The range of today’s available options in combination with our expert know how guarantee you exactly the solution matching your requirements best.
