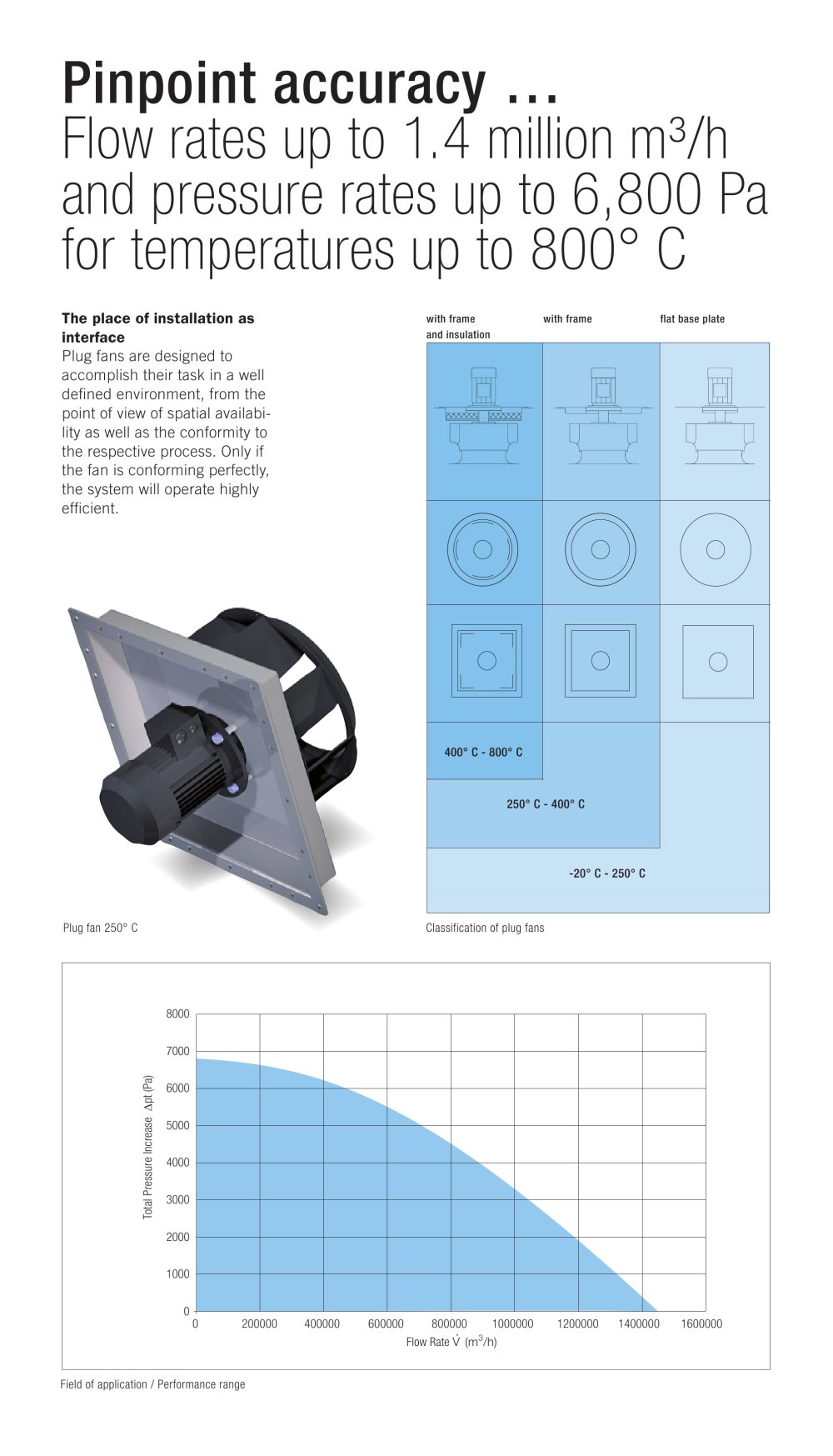

Field of application / Performance range Flow Rate V . (m3/h) Total Pressure Increase pt (Pa) 8000 7000 6000 5000 4000 3000 2000 1000 0 0 200000 400000 600000 800000 1000000 1200000 1400000 1600000 with frame with frame flat base plate and insulation 400° C - 800° C 250° C - 400° C -20° C - 250° C Pinpoint accuracy … Flow rates up to 1.4 million m³/h and pressure rates up to 6,800 Pa for temperatures up to 800° C The place of installation as interface Plug fans are designed to accomplish their task in a well defi ned environment, from the point of view of spatial availability as well as the conformity to the respective process. Only if the fan is conforming perfectly, the system will operate highly effi cient. Classification Plug fan 250° C of plug fans
