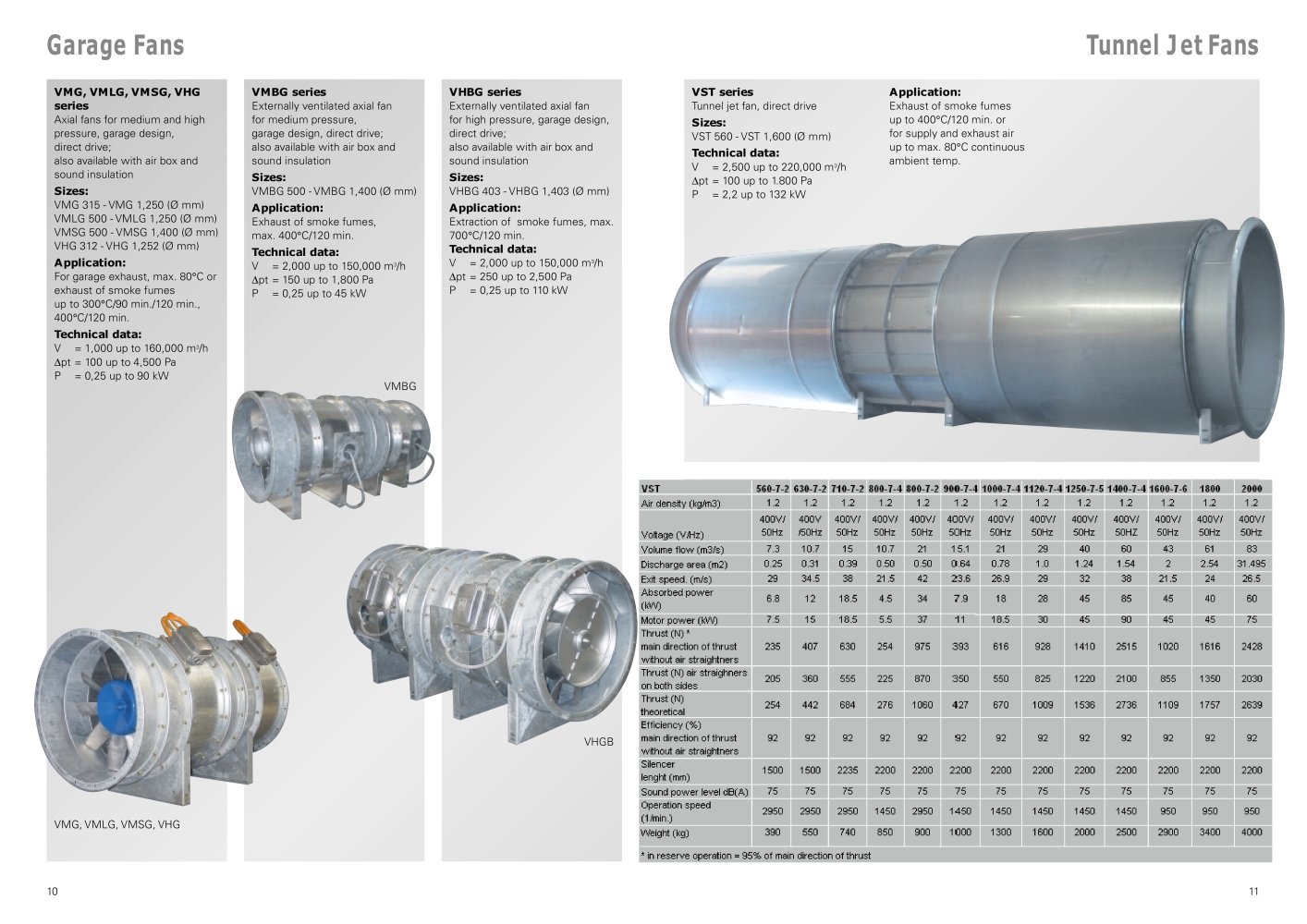

Garage Fans

lunnei Jet Fans

VMG, VMLG, VMSG, VHG séries

Axial fans for medium and high pressure, garage design, direct drive;

also available with air box and sound insulation

Sizes:

VMG 315 - VMG 1,250 (0 mm) VMLG 500 - VMLG 1,250 (0 mm) VMSG 500 - VMSG 1,400 (0 mm) VHG 312 - VHG 1,252 (0 mm)

Application:

For garage exhaust, max. 80°C or exhaust of smoke fumes up to 300°C/90 min./120 min., 400°C/120 min.

Technical data:

V = 1,000 up to 160,000 m³/h Apt = 100 up to 4,500 Pa P = 0,25 up to 90 kW

VM BG series

Externally ventilated axial fan for medium pressure, garage design, direct drive; also available with air box and sound insulation

Sizes:

VMBG 500 - VMBG 1,400 (0 mm)

Application:

Exhaust of smoke fumes, max. 400 ° C/120 min.

Technical data:

V = 2,000 up to 150,000 m³/h Apt = 150 up to 1,800 Pa P = 0,25 up to 45 kW

VHBG series

Externally ventilated axial fan for high pressure, garage design, direct drive;

also available with air box and sound insulation

Sizes:

VHBG 403 - VHBG 1,403 (0 mm)

Application:

Extraction of smoke fumes, max. 700°C/120 min. Technical data:

V = 2,000 up to 150,000 m³/h Apt = 250 up to 2,500 Pa P = 0,25 up to 110 kW

VST series

Tunnel jet fan, direct drive Sizes:

VST 560 - VST 1,600 (0 mm)

Technical data:

V = 2,500 up to 220,000 m³/h Apt = 100 up to 1.800 Pa P = 2,2 up to 132 kW

Application:

Exhaust of smoke fumes up to 400 ° C/120 min. or for supply and exhaust air up to max. 80°C continuous ambient temp.

VMBG


VST	560-7-2	630-7-2	710-7-2	800-7-4	800-7-2	900-7-4	10 0 0 -7-4	1120-7-4	12 5 0 -7-5	14 0 0 -7 -4	16 0 0 -7 -6
Air density (kg/m³)	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2
Voltage (V/Hz)	400V/ 50Hz	400V/ 50Hz	400V/ 50Hz	400V/ 50Hz	400V/ 50Hz	400V/ 50Hz	400V/ 50Hz	400V/ 50Hz	400V/ 50Hz	400V/ 50Hz	400V/ 50Hz
Volume flow (m³/s)	7.3	10.7	15	10.7	21	15.1	21	29	40	60	43
Discharge area (m²)	0.25	0.31	0.39	0.50	0.50	0.64	0.78	1.0	1.24	1.54	2
Exit speed. (m/s)	29	34.5	38	21.5	42	23.6	26.9	29	32	38	21.5
Absorbed power (kW)	6.8	12	18.5	4.5	34	7.9	18	28	45	85	45
Motor power (kW)	7.5	15	18.5	5.5	37	11	18.5	30	45	90	45
Thrust (N)* main direction of thrust without air straightners	235	407	630	254	975	393	616	928	1410	2515	1020
Thrust (N) air straighners on both sides	205	360	555	225	870	350	550	825	1220	2100	855
Thrust (N) theoretical	254	442	684	276	1060	427	670	1009	1536	2736	1109
Efficiency (%) main direction of thrust without air straightners	92	92	92	92	92	92	92	92	92	92	92
Silencer lenght (mm)	1500	1500	2235	2200	2200	2200	2200	2200	2200	2200	2200
Operation speed (1/min.)	2950	2950	2950	1450	2950	1450	1450	1450	1450	1450	1450
Weight (kg)	390	550	740	850	900	1000	1300	1600	2000	2500	2900

VHGB

VMG, VMLG, VMSG, VHG

* in reverse operation = 90% of main direction of thrust
