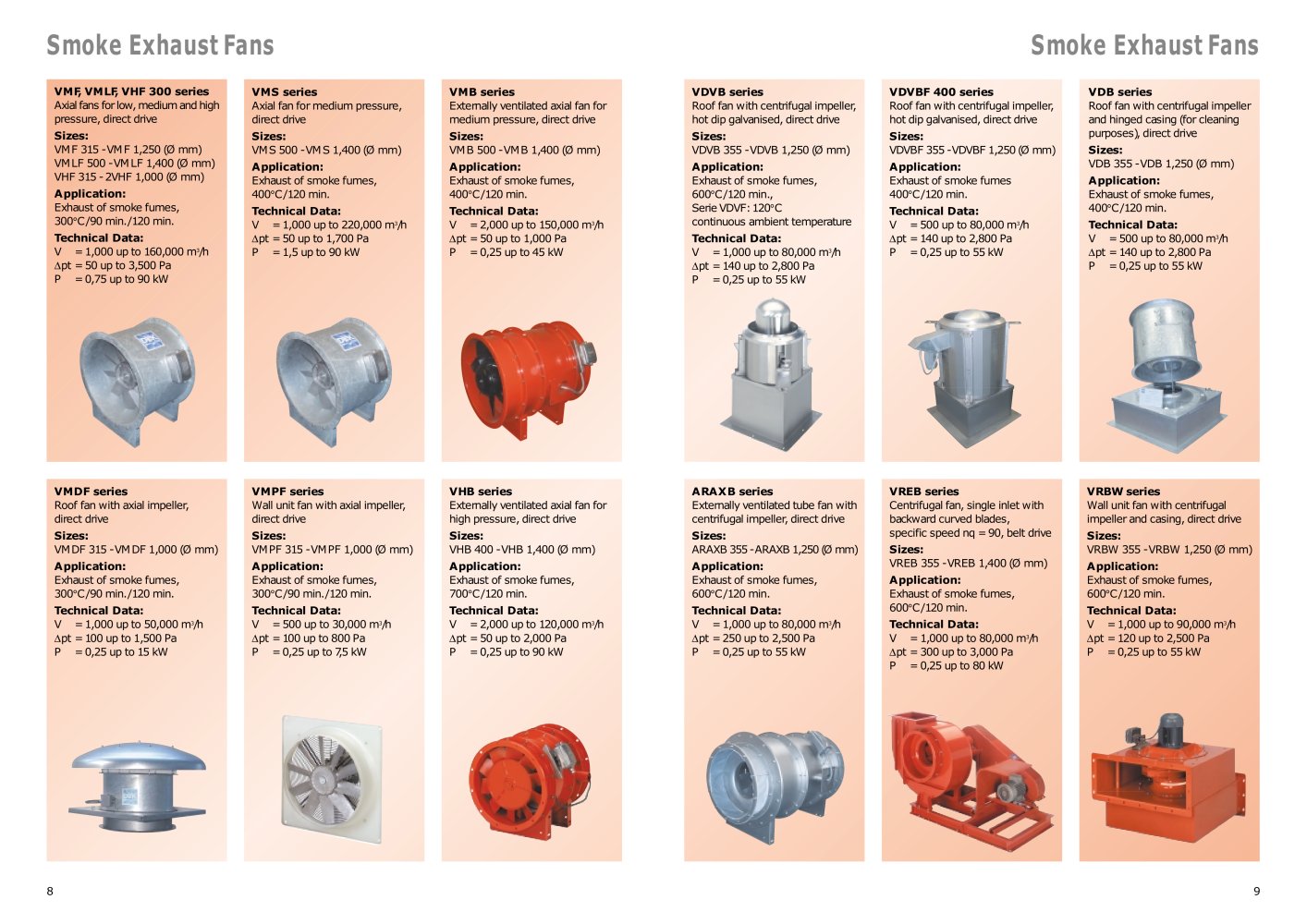

| bmoKe txnaust i-ans | smoKe txnaust rans | ||||||||
| | |||||||||
| VMF, VMLF, VHF 300 séries Axial fans for low, medium and high pressure, direct drive Sizes: VMF 315 - VMF 1,250 (0 mm) VMLF 500 - VMLF 1,400 (0 mm) VHF 315 - 2VHF 1,000 (0 mm) Application: Exhaust of smoke fumes, 300°C/90 min./120 min. Technical Data: V = 1,000 up to 160,000 m3/h Apt = 50 up to 3,500 Pa P = 0,75 up to 90 kW | VM S series Axial fan for medium pressure, direct drive Sizes: VMS 500 - VMS 1,400 (0 mm) Application: Exhaust of smoke fumes, 400°C/120 min. Technical Data: V = 1,000 up to 220,000 m3/h Apt = 50 up to 1,700 Pa P = 1,5 up to 90 kW | VM B series Externally ventilated axial fan for m edium pressure, direct drive Sizes: VMB 500 - VMB 1,400 (0 mm) Application: Exhaust of smoke fumes, 400°C/120 min. Technical Data: V = 2,000 up to 150,000 m3/h Apt = 50 up to 1,000 Pa P = 0,25 up to 45 kW | VDVB series Roof fan with centrifugal impeller, hot dip galvanised, direct drive Sizes: VDVB 355 - VDVB 1,250 (0 mm) Application: Exhaust of smoke fumes, 600°C/120 min., Serie VDVF: 120°C continuous ambient temperature Technical Data: V = 1,000 up to 80,000 m3/h Apt = 140 up to 2,800 Pa P = 0,25 up to 55 kW | VDVBF 400 series Roof fan with centrifugal impeller, hot dip galvanised, direct drive Sizes: VDVBF 355 - VDVBF 1,250 (0 mm) Application: Exhaust of smoke fumes 400°C/120 min. Technical Data: V = 500 up to 80,000 m3/h Apt = 140 up to 2,800 Pa P = 0,25 up to 55 kW | VD B series Roof fan with centrifugal impeller and hinged casing (for cleaning purposes), direct drive Sizes: VDB 355 - VDB 1,250 (0 mm) Application: Exhaust of smoke fumes, 400°C/120 min. Technical Data: V = 500 up to 80,000 m3/h Apt = 140 up to 2,800 Pa P = 0,25 up to 55 kW | ||||
| | |||||||||
 |  |  |  |  |  | ||||
| | |||||||||
| VM DF series Roof fan with axial impeller, direct drive Sizes: VMDF 315 - VMDF 1,000 (0 mm) Application: Exhaust of smoke fumes, 300°C/90 min./120 min. Technical Data: V = 1,000 up to 50,000 m3/h Apt = 100 up to 1,500 Pa P = 0,25 up to 15 kW | VM PF series Wall unit fan with axial impeller, direct drive Sizes: VM PF 315 - VM PF 1,000 (0 mm) Application: Exhaust of smoke fumes, 300°C/90 min./120 min. Technical Data: V = 500 up to 30,000 m3/h Apt = 100 up to 800 Pa P = 0,25 up to 7,5 kW | VHB series Externally ventilated axial fan for high pressure, direct drive Sizes: VHB 400 - VHB 1,400 (0 mm) Application: Exhaust of smoke fumes, 700°C/120 min. Technical Data: V = 2,000 up to 120,000 m3/h Apt = 50 up to 2,000 Pa P = 0,25 up to 90 kW | ARAXB series Externally ventilated tube fan with centrifugal impeller, direct drive Sizes: ARAXB 355 - ARAXB 1,250 (0 mm) Application: Exhaust of smoke fumes, 600°C/120 min. Technical Data: V = 1,000 up to 80,000 m3/h Apt = 250 up to 2,500 Pa P = 0,25 up to 55 kW | VREB series Centrifugal fan, single inlet with backward curved blades, specific speed nq = 90, belt drive Sizes: VREB 355 - VREB 1,400 (0 mm) Application: Exhaust of smoke fumes, 600°C/120 min. Technical Data: V = 1,000 up to 80,000 m3/h Apt = 300 up to 3,000 Pa P = 0,25 up to 80 kW | VRBW series Wall unit fan with centrifugal impeller and casing, direct drive Sizes: VRBW 355 - VRBW 1,250 (0 mm) Application: Exhaust of smoke fumes, 600°C/120 min. Technical Data: V = 1,000 up to 90,000 m3/h Apt = 120 up to 2,500 Pa P = 0,25 up to 55 kW | ||||
| | |||||||||
 |  |  |  |  |  | ||||
| | |||||||||
| 8 | 9 | ||||||||
| | |||||||||
