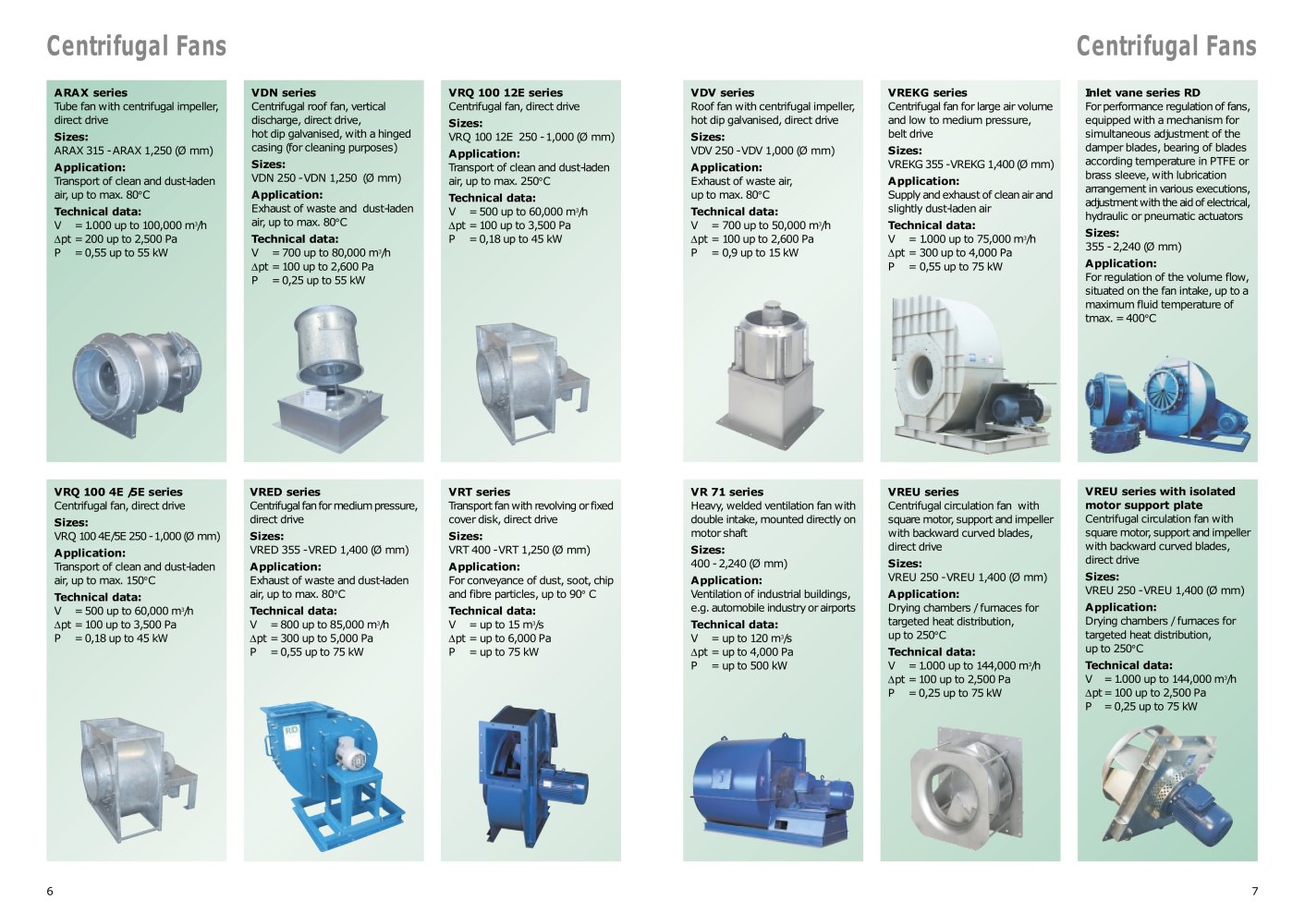

| centriîugai Fans | centriîugai Fans | ||||||||
| | |||||||||
| ARAX séries Tube fan with centrifugal impeller, direct drive Sizes: ARAX 315 - ARAX 1,250 (0 mm) Application: Transport of clean and dust-laden air, up to max. 80°C Technical data: V = 1.000 up to 100,000 m3/h Apt = 200 up to 2,500 Pa P = 0,55 up to 55 kW | VDN series Centrifugal roof fan, vertical discharge, direct drive, hot dip galvanised, with a hinged casing (for cleaning purposes) Sizes: VDN 250 - VDN 1,250 (0 mm) Application: Exhaust of waste and dust-laden air, up to max. 80°C Technical data: V = 700 up to 80,000 m3/h Apt = 100 up to 2,600 Pa P = 0,25 up to 55 kW | VRQ 100 12E series Centrifugal fan, direct drive Sizes: VRQ 100 12E 250 - 1,000 (0 mm) Application: Transport of clean and dust-laden air, up to max. 250°C Technical data: V = 500 up to 60,000 m3/h Apt = 100 up to 3,500 Pa P = 0,18 up to 45 kW | VDV series Roof fan with centrifugal impeller, hot dip galvanised, direct drive Sizes: VDV 250 - VDV 1,000 (0 mm) Application: Exhaust of waste air, up to max. 80°C Technical data: V = 700 up to 50,000 m3/h Apt = 100 up to 2,600 Pa P = 0,9 up to 15 kW | VREKG series Centrifugal fan for large air volume and low to medium pressure, belt drive Sizes: VREKG 355 - VREKG 1,400 (0 mm) Application: Supply and exhaust of clean air and slightly dust-laden air Technical data: V = 1.000 up to 75,000 m3/h Apt = 300 up to 4,000 Pa P = 0,55 up to 75 kW | Inlet vane series RD For performance regulation of fans, equipped with a mechanism for simultaneous adjustment of the damper blades, bearing of blades according temperature in PTFE or brass sleeve, with lubrication arrangement in various executions, adjustment with the aid of electrical, hydraulic or pneumatic actuators Sizes: 355 - 2,240 (0 mm) Application: For regulation of the volume flow, situated on the fan intake, up to a maximum fluid temperature of tmax. = 400°C | ||||
 |  |  |  |  | |||||
 | |||||||||
| | |||||||||
| VRQ 100 4E /5E séries Centrifugal fan, direct drive Sizes: VRQ 100 4E/5E 250 - 1,000 (0 mm) Application: Transport of clean and dust-laden air, up to max. 150°C Technical data: V = 500 up to 60,000 m3/h Apt = 100 up to 3,500 Pa P = 0,18 up to 45 kW | VRED series Centrifugal fan for medium pressure, direct drive Sizes: VRED 355 - VRED 1,400 (0 mm) Application: Exhaust of waste and dust-laden air, up to max. 80°C Technical data: V = 800 up to 85,000 m3/h Apt = 300 up to 5,000 Pa P = 0,55 up to 75 kW | VRT series Transport fan with revolving or fixed cover disk, direct drive Sizes: VRT 400 - VRT 1,250 (0 mm) Application: For conveyance of dust, soot, chip and fibre particles, up to 90° C Technical data: V = up to 15 m3/s Apt = up to 6,000 Pa P = up to 75 kW | VR 71 series Heavy, welded ventilation fan with double intake, mounted directly on motor shaft Sizes: 400 - 2,240 (0 mm) Application: Ventilation of industrial buildings, e.g. automobile industry or airports Technical data: V = up to 120 m3/s Apt = up to 4,000 Pa P = up to 500 kW | VREU series Centrifugal circulation fan with square motor, support and impeller with backward curved blades, direct drive Sizes: VREU 250 - VREU 1,400 (0 mm) Application: Drying chambers / furnaces for targeted heat distribution, up to 250°C Technical data: V = 1.000 up to 144,000 m3/h Apt = 100 up to 2,500 Pa P = 0,25 up to 75 kW | VREU series with isolated motor support plate Centrifugal circulation fan with square motor, support and impeller with backward curved blades, direct drive Sizes: VREU 250 - VREU 1,400 (0 mm) Application: Drying chambers / furnaces for targeted heat distribution, up to 250°C Technical data: V = 1.000 up to 144,000 m3/h Apt = 100 up to 2,500 Pa P = 0,25 up to 75 kW | ||||
 |  | ||||||||
 |  |  |  | ||||||
| | |||||||||
| 6 | 7 | ||||||||
| | |||||||||
