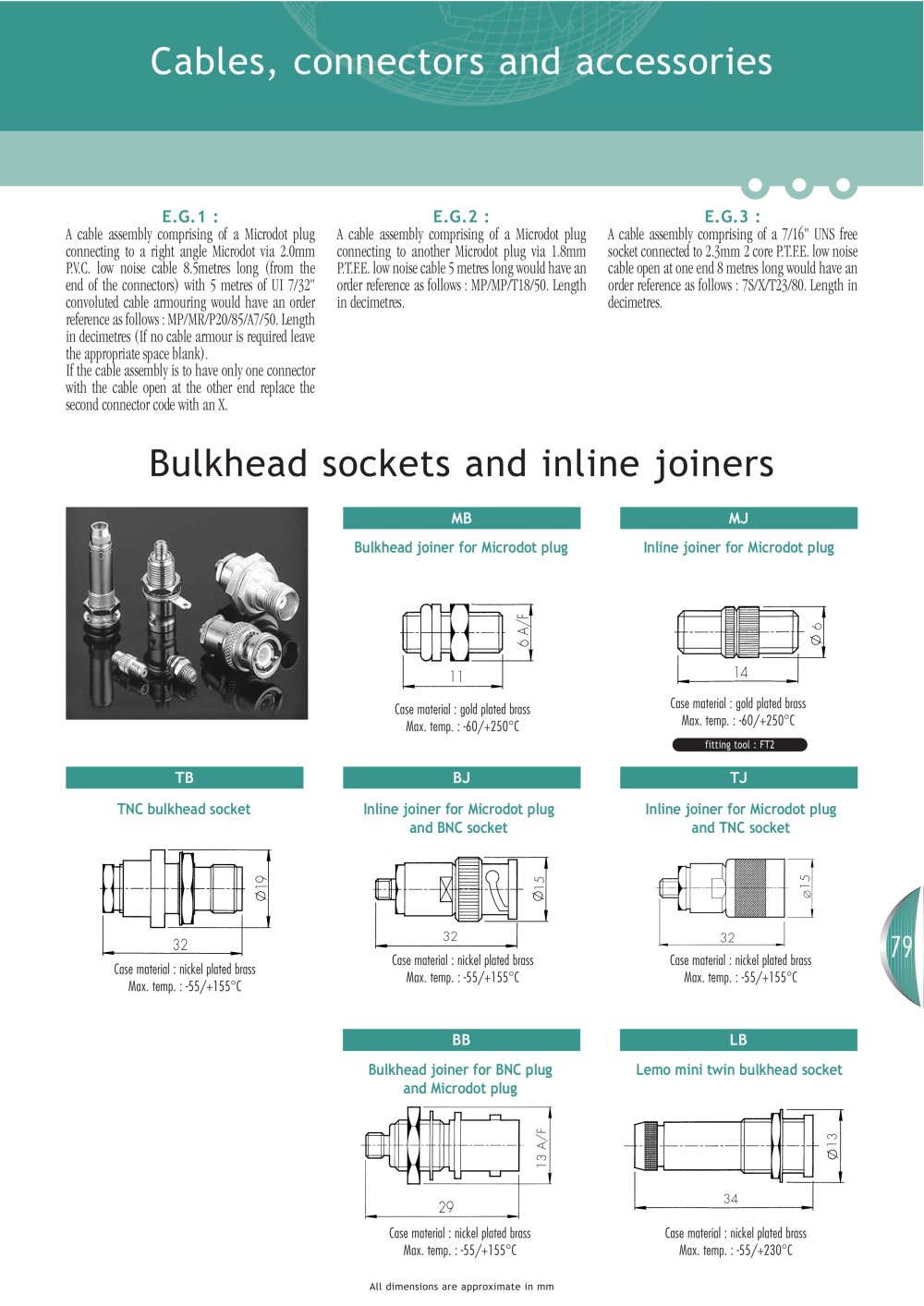

Cables, interconnectors and accessories

E.G.1 : E.G.2 : E.G.3 :

A cable assembling comprising of a Microdot plugconnecting to a right angle Microdot via 2.0mm P.V.C. low noise cable 8.5metres long (from the end of the connectors) with 5 metres of UI 7/32" convoluted cable armouring would have an order reference as follows : MP/MR/P20/85/A7/50. Length in decimetres (If no cable armour is required leave the appropriate space blank). If the cable assembly is to have only one connector with the cable open at the other end replace the second connector code with an X. A cable assembly comprising of a Microdot plug connecting to another Microdot plug via 1.8mm P.T.F.E. low noise cable 5 metres long would have an order reference as follows: MP/MP/T18/50. Length in decimetres. A cable assembly comprising of a 7/16" UNS free socket connected to 2.3mm 2 core P.T.F.E. low noise cable open at one end 8 metres long would have an order reference as follows : 7S/X/T23/80. Length in decimetres.

Bulkhead sockets and inline joiners

MB MJ Bulkhead joiner for Microdot plug Bulkhead joiner for BNC plug and Microdot plug Inline joiner for Microdot plug
6 6 A/F 11 29 14 Case material : gold plated brassMax. temp. : -60/+250°C Case material : nickel plated brassMax. temp. : -55/+155°C Case material : gold plated brassMax. temp. : -60/+250°C Case material : nickel plated brassMax. temp. : -55/+155°C professional fitting tool : FT2 TB BJ TJ TNC bulkhead socket Lemo mini twin bulkhead socket Inline joiner for Microdot plugand TNC socket Inline joiner for Microdot plug and BNC socket
15 13 A/F 19 15 32 32 32 Case material : nickel plated brassMax. temp. : -55/+155°C Case material : nickel plated brassMax. temp. : -55/+230°C Case material : nickel plated brassMax. temp. : -55/+155°C

79

BB LB
13 34 All dimensions are approximate in mm
