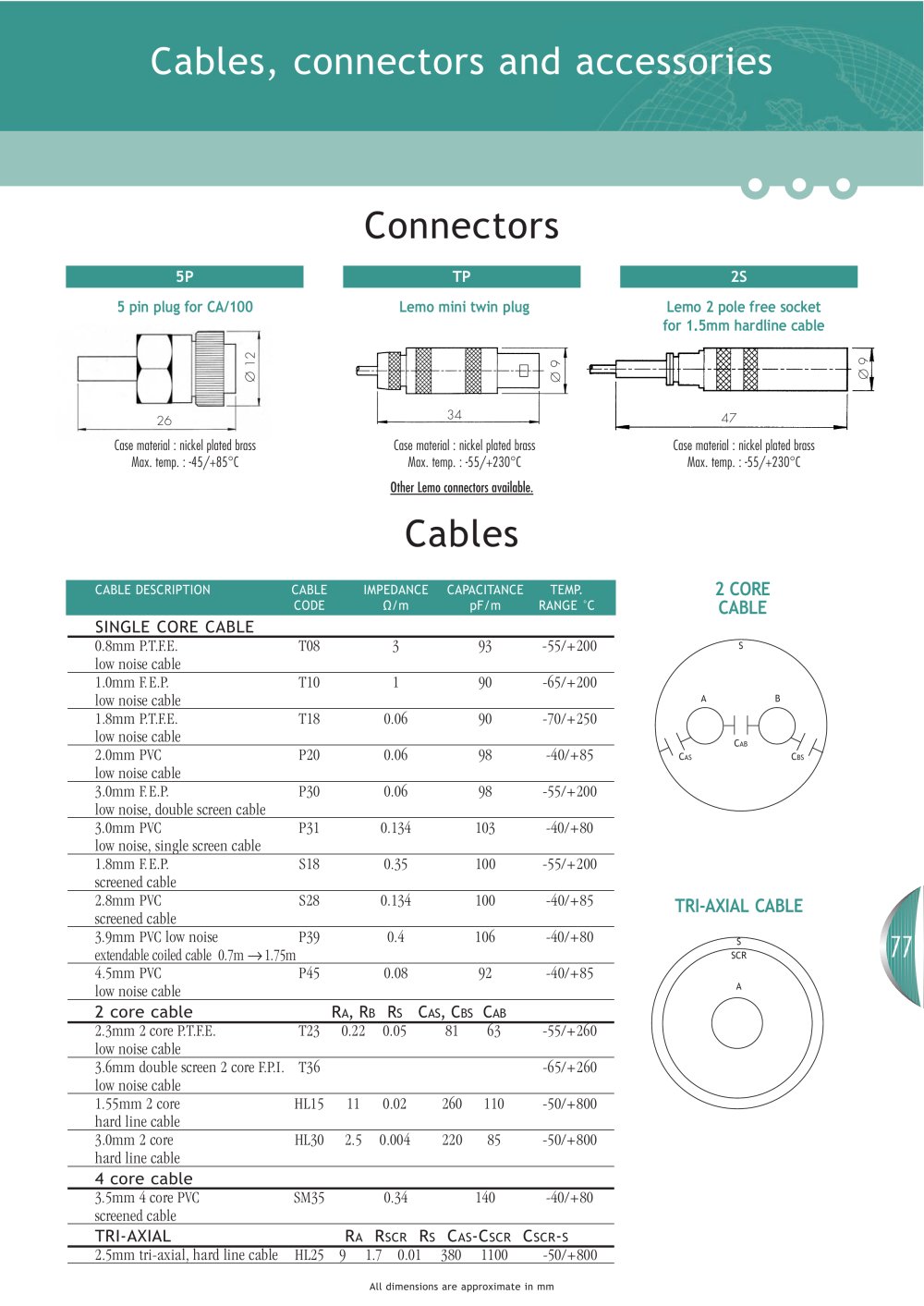

Cables, connectors and accessories

Connectors

5 pin plug for CA/100

Lemo mini twin plug

Lemo 2 pole free socket for 1.5mm hardline cable

-4 S

Case material : nickel plated brass Max. temp. : -45/+85°C

Case material : nickel plated brass Max. temp. : -55/+230°C

Other Lemo connectors available.

Cables

Case material : nickel plated brass Max. temp. : -55/+230°C


CABLE DESCRIPTION	CABLE CODE	IMPEDANCE CAPACITANCE Q/m pF/m		TEMP. RANGE °C
SINGLE CORE CABLE
0.8mm P.T.F.E.	T08	3	93	-55/+200
low noise cable
1.0mm F.E.P.	T10	1	90	-65/+200
low noise cable
1.8mm P.T.F.E.	T18	0.06	90	-70/+250
low noise cable
2.0mm PVC low noise cable	P20	0.06	98	-40/+85
3.0mm F.E.P. low noise, double screen cable	P30	0.06	98	-55/+200
3.0mm PVC low noise, single screen cable	P31	0.134	103	-40/+80
1.8mm F.E.P. screened cable	S18	0.35	100	-55/+200
2.8mm PVC screened cable	S28	0.134	100	-40/+85
3.9mm PVC low noise	P39	0.4	106	-40/+80
extendable coiled cable 0.7m — 1.75m
4.5mm PVC low noise cable	P45	0.08	92	-40/+85
2 core cable		Ra, Rb Rs Cas, Cbs Cab
2.3mm 2 core P.T.F.E. low noise cable	T23	0.22 0.05	81 63	-55/+260
3.6mm double screen 2 core F.P.I.	T36			-65/+260
low noise cable
1.55mm 2 core hard line cable	HL15	11 0.02	260 110	-50/+800
3.0mm 2 core hard line cable	HL30	2.5 0.004	220 85	-50/+800
4 core cable
3.5mm 4 core PVC screened cable	SM35	0.34	140	-40/+80
TRI-AXIAL		Ra Rscr Rs Cas-Cscr Cscr-s
2.5mm tri-axial, hard line cable	HL25	9 1.7 0.01	380 1100	-50/+800

2 CORE CABLE

TRI-AXIAL CABLE

All dimensions are approximate in mm
