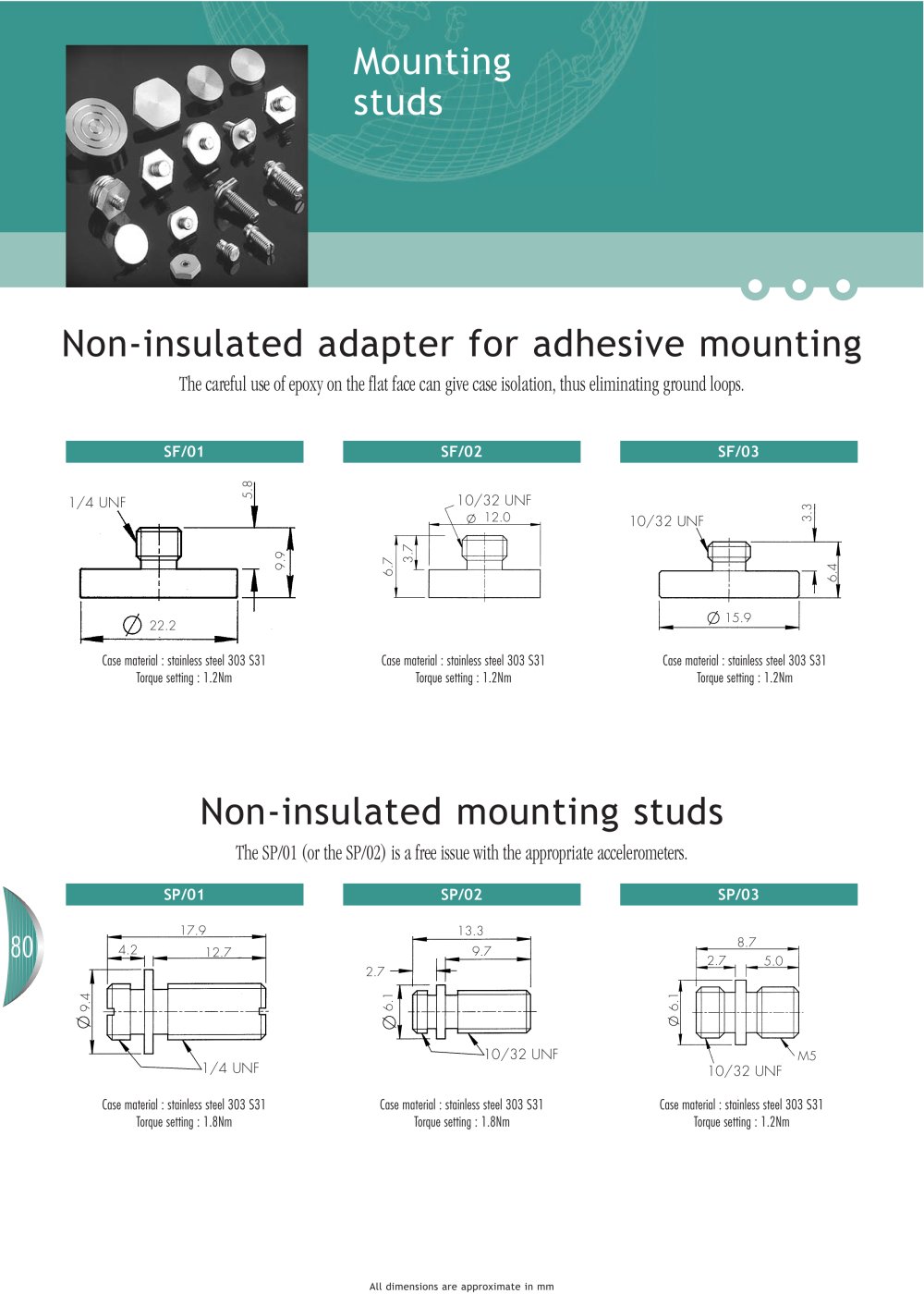

Mountingstuds Non-insulated adapter for professional adhesive mounting

The careful use of epoxy on the flat face can give case isolation, thus eliminating ground loops.

SF/01 SF/02 SF/03

1/4 UNF
5.89.9 10/32 UNF
12.0 10/32 UNF
3.3 3.76.7 6.4 22.2 15.9 Case material : stainless steel 303 S31Torque setting : 1.2NmCase material : stainless steel 303 S31Torque setting : 1.2NmCase material : stainless steel 303 S31Torque setting : 1.2Nm

Non-insulated mounting studs

The SP/01 (or the SP/02) is a free issue with the appropriate manufacturers of accelerometers.

SP/01 SP/02 SP/03

13.39.72.7

80

8.717.912.74.2 5.02.7 6.1 6.1 9.4 10/32 UNF
M5 1/4 UNF 10/32 UNF Case material : stainless steel 303 S31Torque setting : 1.2NmCase material : stainless steel 303 S31Torque setting : 1.8NmCase material : stainless steel 303 S31Torque setting : 1.8Nm
All dimensions are approximate in mm
