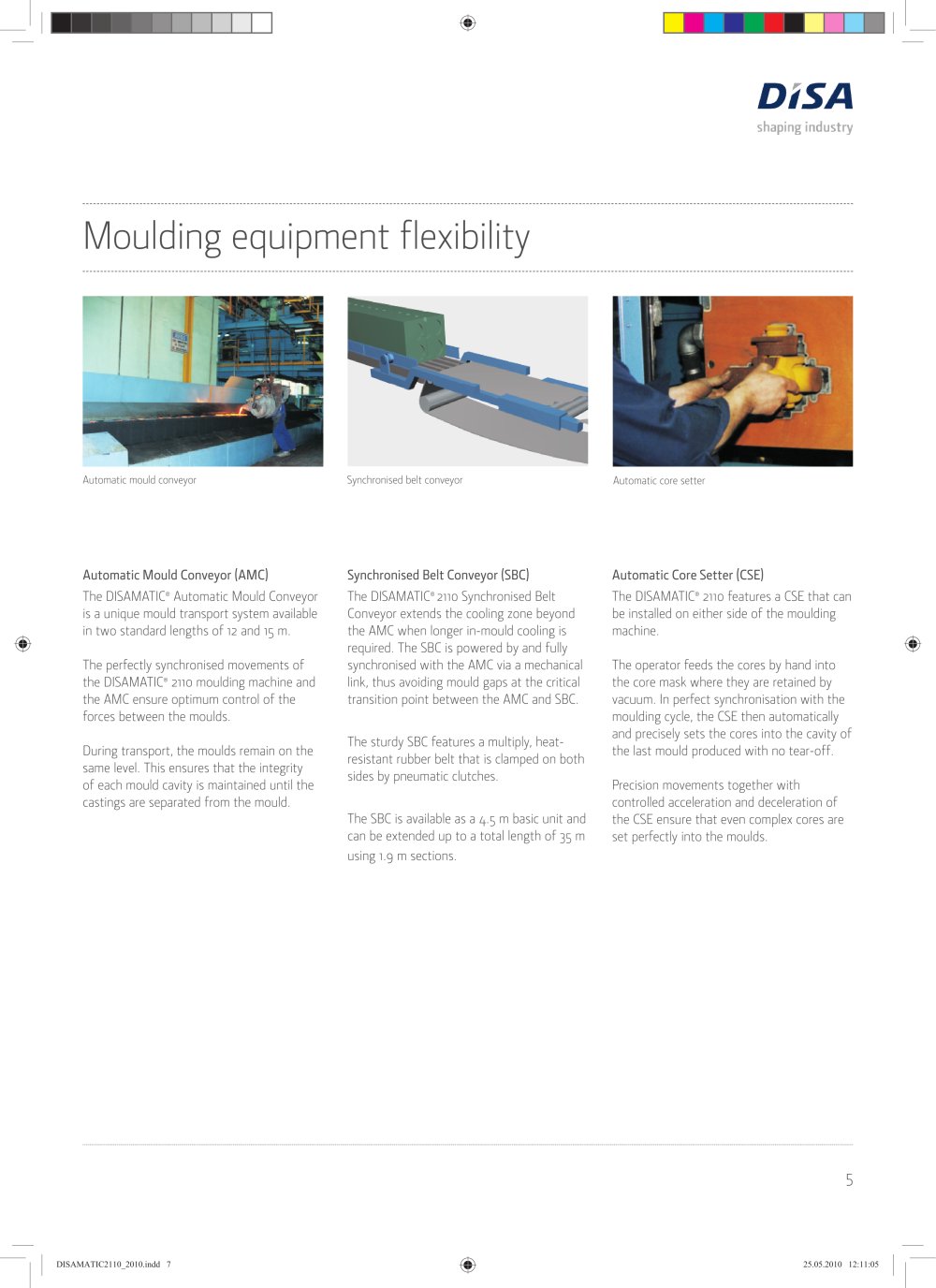

Moulding equipment fl exibility
Automatic Mould Conveyor (AMC)
The DISAMATIC® Automatic Mould Conveyor
is a unique mould transport system available
in two standard lengths of 12 and 15 m.
The perfectly synchronised movements of
the DISAMATIC® 2110 moulding machine and
the AMC ensure optimum control of the
forces between the moulds.
During transport, the moulds remain on the
same level. This ensures that the integrity
of each mould cavity is maintained until the
castings are separated from the mould.
Synchronised Belt Conveyor (SBC)
The DISAMATIC® 2110 Synchronised Belt
Conveyor extends the cooling zone beyond
the AMC when longer in-mould cooling is
required. The SBC is powered by and fully
synchronised with the AMC via a mechanical
link, thus avoiding mould gaps at the critical
transition point between the AMC and SBC.
The sturdy SBC features a multiply, heatresistant
rubber belt that is clamped on both
sides by pneumatic clutches.
The SBC is available as a 4.5 m basic unit and
can be extended up to a total length of 35 m
using 1.9 m sections.
Automatic Core Setter (CSE)
The DISAMATIC® 2110 features a CSE that can
be installed on either side of the moulding
machine.
The operator feeds the cores by hand into
the core mask where they are retained by
vacuum. In perfect synchronisation with the
moulding cycle, the CSE then automatically
and precisely sets the cores into the cavity of
the last mould produced with no tear-off.
Precision movements together with
controlled acceleration and deceleration of
the CSE ensure that even complex cores are
set perfectly into the moulds.
5
Automatic mould conveyor Synchronised belt conveyor Automatic core setter
