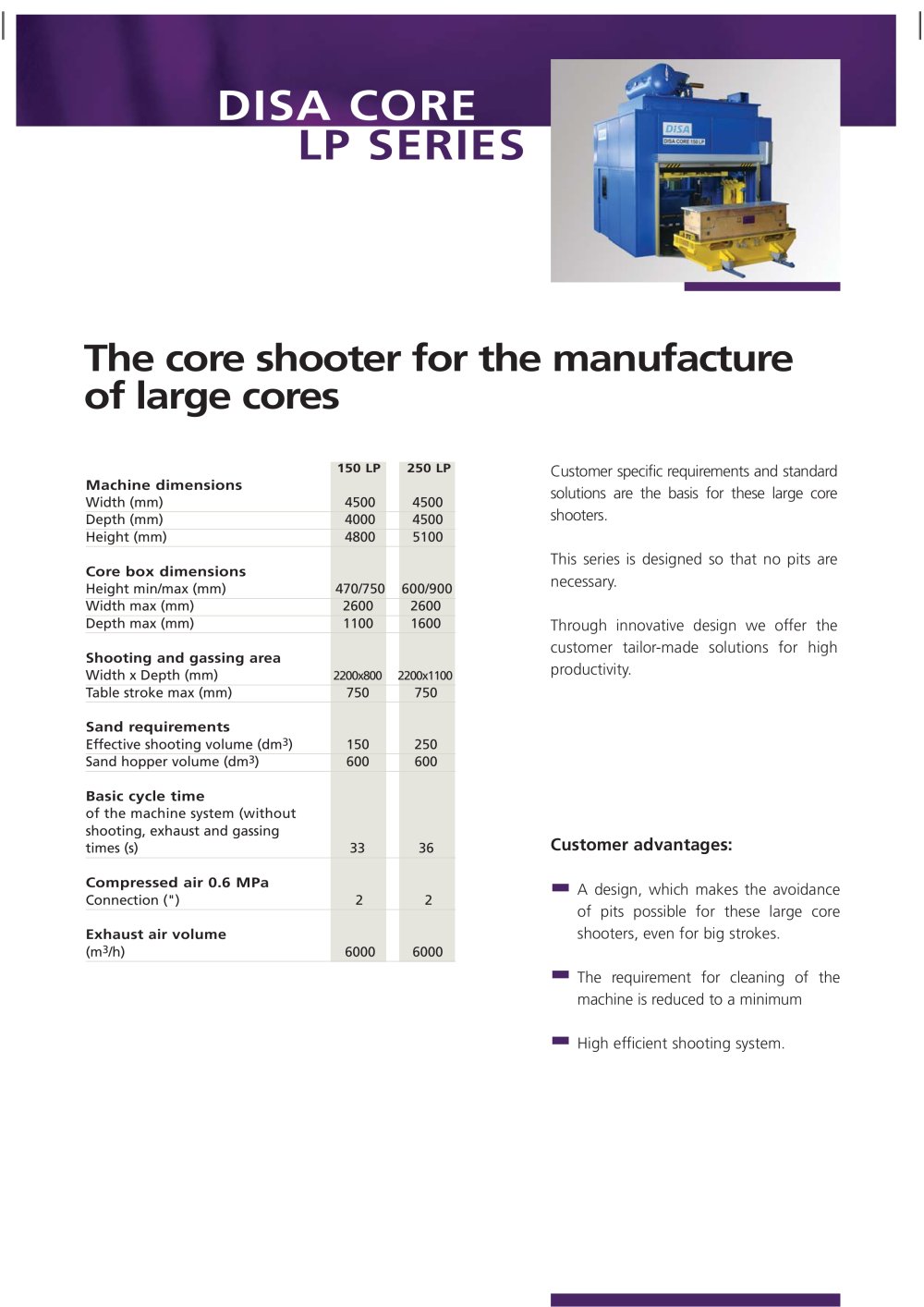

DISA CORE

LP SERIES

The core shooter for the manufacture of large cores


Machine dimensions Width (mm)	150 LP 4500	250 LP 4500	Customer specific requirements and standard solutions are the basis for these large core shooters.
Depth (mm)	4000	4500
Height (mm)	4800	5100
Core box dimensions			This series is designed so that no pits are
Height min/max (mm)	470/750	600/900	necessary.
Width max (mm)	2600	2600
Depth max (mm)	1100	1600	Through innovative design we offer the
Shooting and gassing area Width x Depth (mm)	2200x800	2200x1100	customer tailor-made solutions for high productivity.
Table stroke max (mm)	750	750
Sand requirements
Effective shooting volume (dm³)	150	250
Sand hopper volume (dm³)	600	600
Basic cycle time
of the machine system (without
shooting, exhaust and gassing times (s)	33	36	Customer advantages:
Compressed air 0.6 MPa Connection (")	2	2	™ A design, which makes the avoidance of pits possible for these large core

Exhaust air volume			shooters, even for big strokes.
(m3/h)	6000	6000

™ The requirement for cleaning of the machine is reduced to a minimum

High efficient shooting system.
