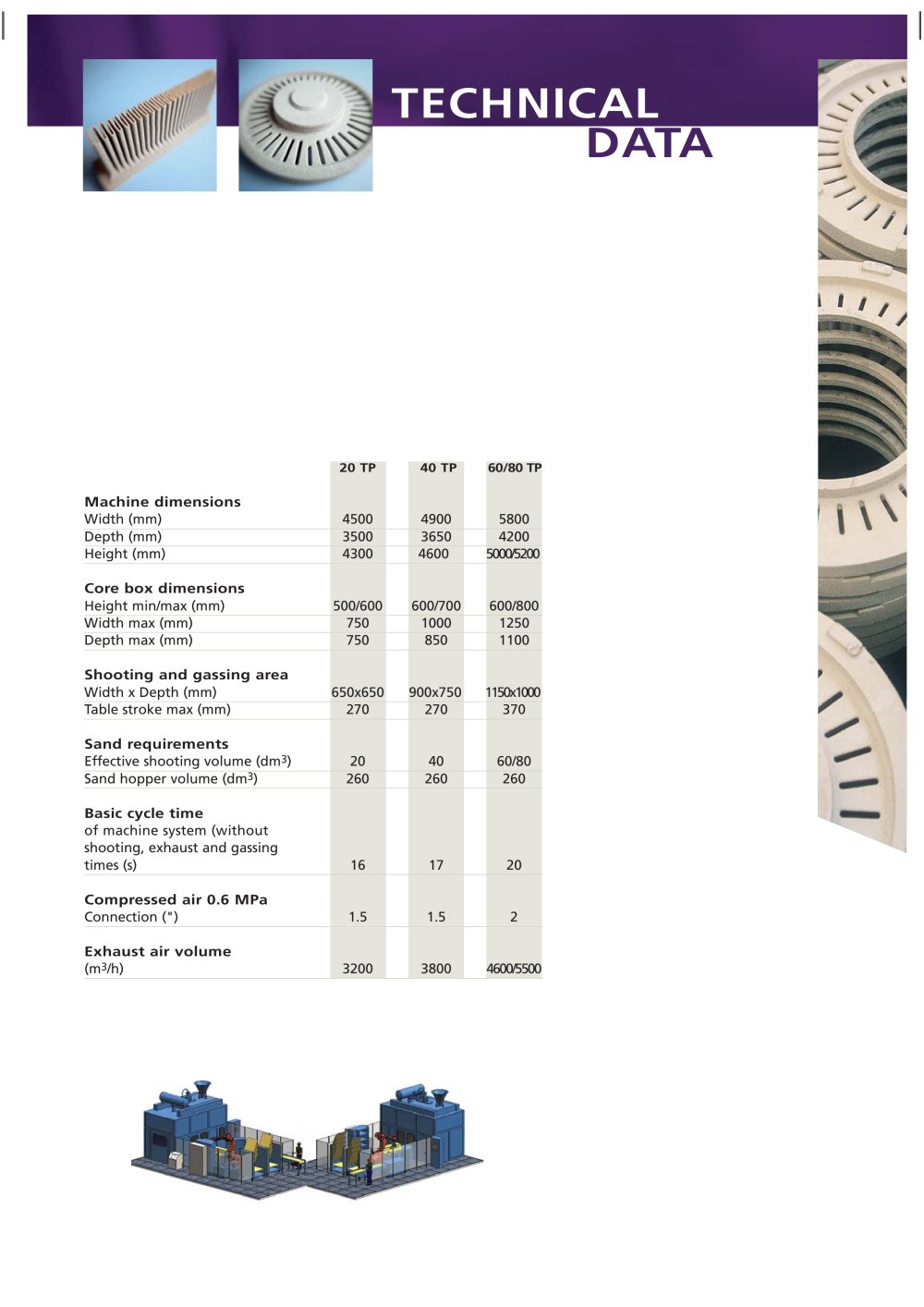

Machine dimensions Width (mm)	20 TP 4500	40 TP 4900	60/80 TP 5800
Depth (mm)	3500	3650	4200
Height (mm)	4300	4600	5000/5200
Core box dimensions Height min/max (mm)	500/600	600/700	600/800
Width max (mm)	750	1000	1250
Depth max (mm)	750	850	1100
Shooting and gassing area Width x Depth (mm)	650x650	900x750	115Cxi000
Table stroke max (mm)	270	270	370
Sand requirements Effective shooting volume (dm³)	20	40	60/80
Sand hopper volume (dm³)	260	260	260
Basic cycle time of machine system (without shooting, exhaust and gassing times (s)	16	17	20
Compressed air 0.6 MPa Connection (")	1.5	1.5	2
Exhaust air volume (m³/h)	3200	3800	4600/5500
