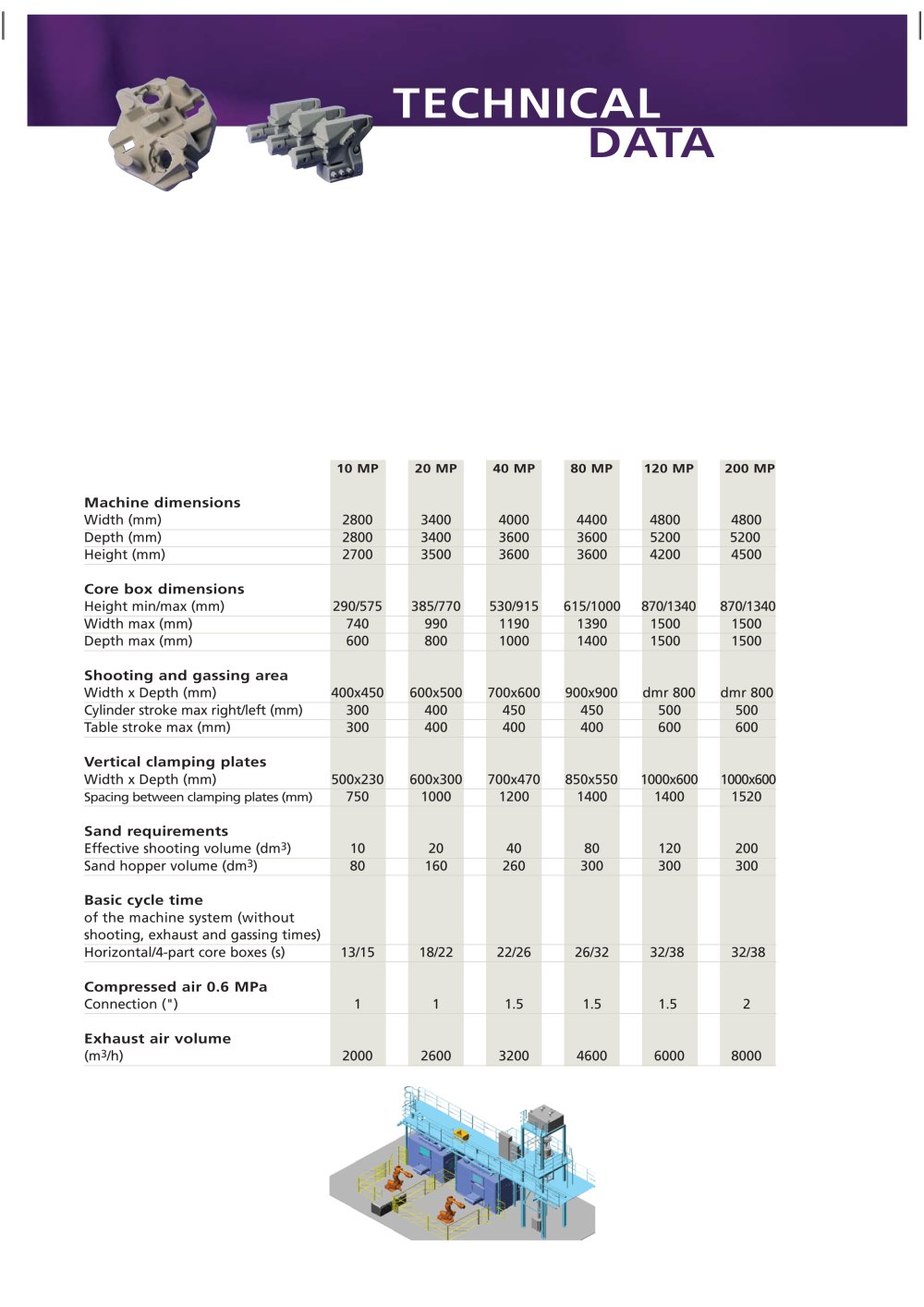

| in_ TECHNICAL | |||||||||
| 10 MP 20 MP 40 MP 80 MP 120 MP 200 MP Machine dimensions Width (mm) 2800 3400 4000 4400 4800 4800 Depth (mm) 2800 3400 3600 3600 5200 5200 Height (mm) 2700 3500 3600 3600 4200 4500 Core box dimensions Height min/max (mm) 290/575 385/770 530/915 615/1000 870/1340 870/1340 Width max (mm) 740 990 1190 1390 1500 1500 Depth max (mm) 600 800 1000 1400 1500 1500 Shooting and gassing area Width x Depth (mm) 400x450 600x500 700x600 900x900 dmr 800 dmr 800 Cylinder stroke max right/left (mm) 300 400 450 450 500 500 Table stroke max (mm) 300 400 400 400 600 600 Vertical clamping plates Width x Depth (mm) 500x230 600x300 700x470 850x550 1000x600 1000x600 Spacing between clamping plates (mm) 750 1000 1200 1400 1400 1520 | |||||||||
| Sand requirements Effective shooting volume (dm3) 10 20 40 80 120 200 Sand hopper volume (dm3) 80 160 260 300 300 300 Basic cycle time of the machine system (without shooting, exhaust and gassing times) Horizontal/4-part core boxes (s) 13/15 18/22 22/26 26/32 32/38 32/38 Compressed air 0.6 MPa Connection (") 1 1 1.5 1.5 1.5 2 | |||||||||
| Exhaust air volume (m3/h) 2000 2600 3200 4600 6000 8000 | |||||||||
