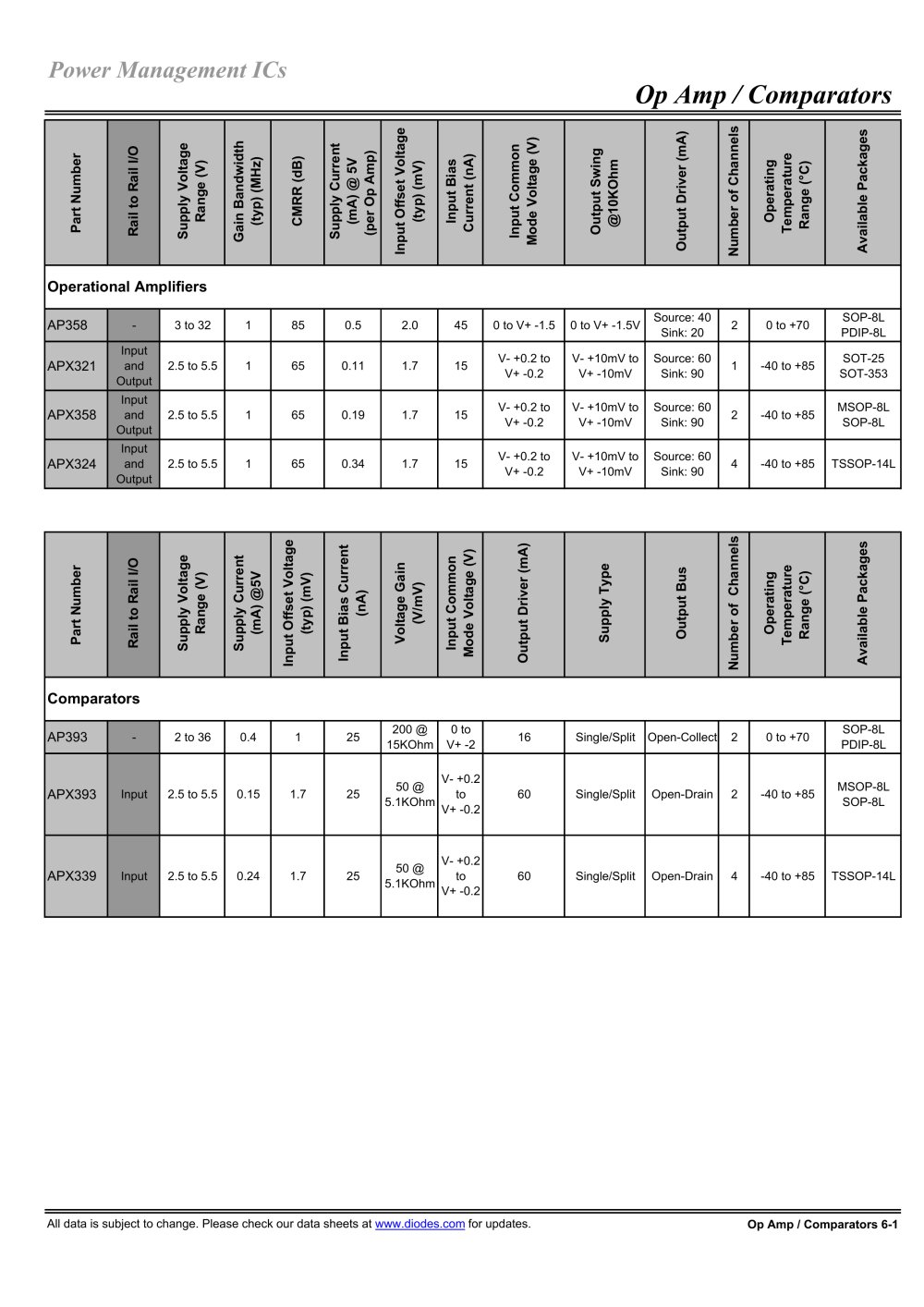

Power Management ICs

Op Amp / Comparators

Part Number

Rail to Rail I/O

Supply Voltage Range (V)

Gain Bandwidth (typ) (MHz)

CMRR (dB)

Supply Current

(mA) @ 5V (per Op Amp)

Input Offset Voltage (typ) (mV)

Input Bias Current (nA)

Input Common

Mode Voltage (V)

Output Swing

Output Driver (mA)

Number of Channels

Operating Temperature

Range (°C)

Available Packages

Operational Amplifiers

AP358

-

3 to 32

1

85

0.5

2.0

45

0 to V+ -1.5

0 to V+ -1.5V

Source: 40 Sink: 20

2

0 to +70

SOP-8L PDIP-8L

APX321

Input and Output

2.5 to 5.5

1

65

0.11

1.7

15

V- +0.2 to V+ -0.2

V- +10mV to V+ -10mV

Source: 60 Sink: 90

1

-40 to +85

SOT-25 SOT-353

APX358

Input and

Output

2.5 to 5.5

1

65

0.19

1.7

15

V- +0.2 to V+ -0.2

V- +10mV to

V+ -10mV

Source: 60 Sink: 90

2

-40 to +85

MSOP-8L

SOP-8L

APX324

Input and Output

2.5 to 5.5

1

65

0.34

1.7

15

V- +0.2 to V+ -0.2

V- +10mV to V+ -10mV

Source: 60 Sink: 90

4

-40 to +85

TSSOP-14L

Part Number

Rail to Rail I/O

Supply Voltage Range (V)

Supply Current

(mA) @5V

Input Offset Voltage

(typ) (mV)

Input Bias Current

(nA)

Voltage Gain

(V/mV)

Input Common Mode Voltage (V)

Output Driver (mA)

Supply Type

Output Bus

Number of Channels

Operating Temperature

Range (°C)

Available Packages

Comparators

AP393

-

2 to 36

0.4

1

25

200 @

15KOhm

0 to V+ -2

16

Single/Split

Open-Collect

2

0 to +70

SOP-8L

PDIP-8L

APX393

Input

2.5 to 5.5

0.15

1.7

25

50 @ 5.1KOhm

V- +0.2 to

V+ -0.2

60

Single/Split

Open-Drain

2

-40 to +85

MSOP-8L SOP-8L

50 @ 5.1KOhm

V- +0.2

APX339

Input

2.5 to 5.5

0.24

1.7

25

to V+ -0.2

60

Single/Split

Open-Drain

4

-40 to +85

TSSOP-14L

All data is subject to change. Please check our data sheets at www.diodes.com for updates.
