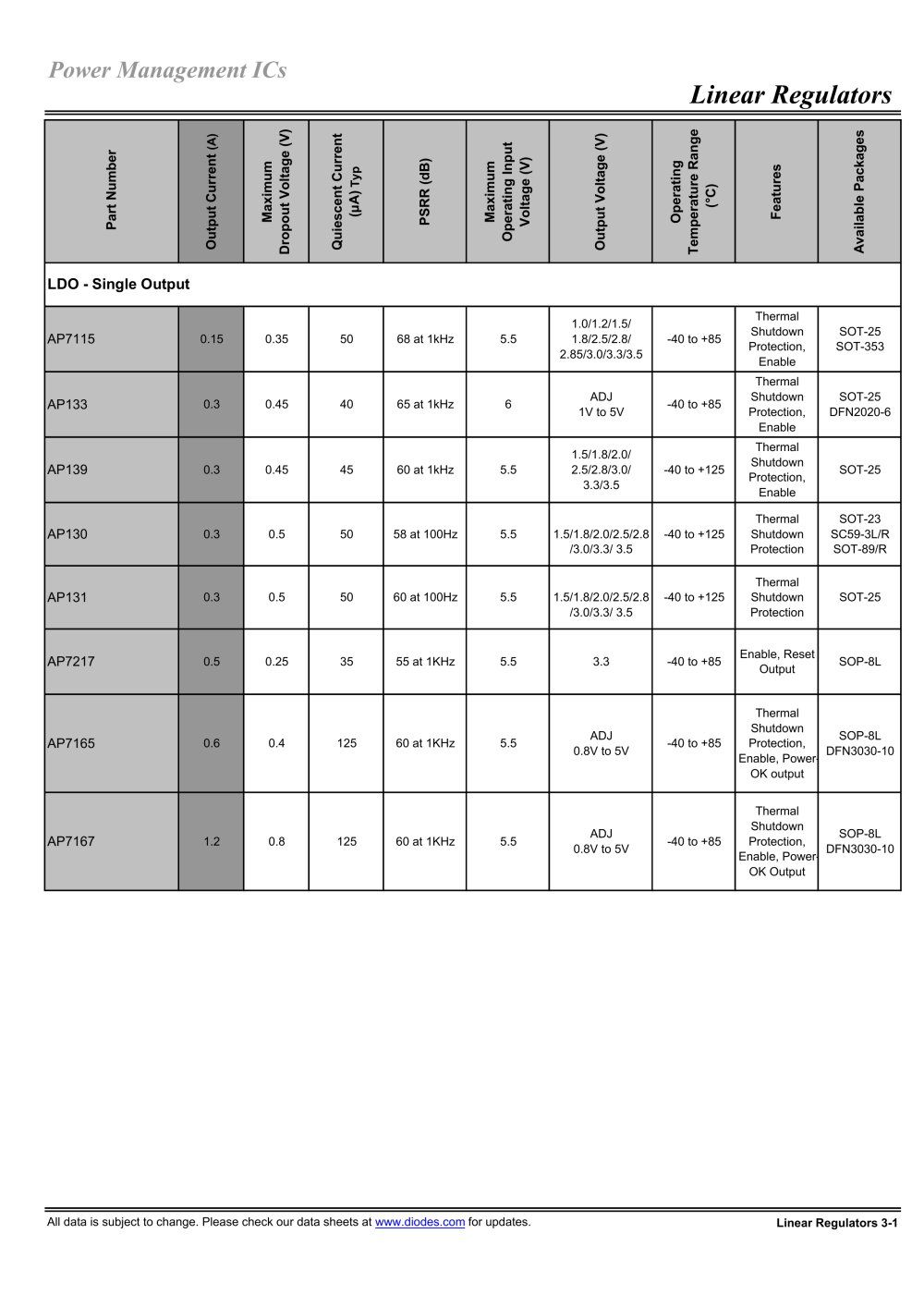

Power Management ICs

Linear Regulators


	Part Number	Output Current (A)	Maximum Dropout Voltage (V)	Quiescent Current (MA) Typ	PSRR (dB)	Maximum Operating Input Voltage (V)	Output Voltage (V)	Operating Temperature Range	Features	Available Packages
	LDO - Single Output
	AP7115	0.15	0.35	50	68 at 1kHz	5.5	1.0/1.2/1.5/ 1.8/2.5/2.8/ 2.85/3.0/3.3/3.5	-40 to +85	Thermal Shutdown Protection, Enable	SOT-25 SOT-353
	AP133	0.3	0.45	40	65 at 1kHz	6	ADJ 1V to 5V	-40 to +85	Thermal Shutdown Protection, Enable	SOT-25 DFN2020-6
	AP139	0.3	0.45	45	60 at 1kHz	5.5	1.5/1.8/2.0/ 2.5/2.8/3.0/ 3.3/3.5	-40 to +125	Thermal Shutdown Protection, Enable	SOT-25
	AP130	0.3	0.5	50	58 at 100Hz	5.5	1.5/1.8/2.0/2.5/2.8 /3.0/3.3/ 3.5	-40 to +125	Thermal Shutdown Protection	SOT-23 SC59-3L/R SOT-89/R
	AP131	0.3	0.5	50	60 at 100Hz	5.5	1.5/1.8/2.0/2.5/2.8 /3.0/3.3/ 3.5	-40 to +125	Thermal Shutdown Protection	SOT-25
	AP7217	0.5	0.25	35	55 at 1KHz	5.5	3.3	-40 to +85	Enable, Reset Output	SOP-8L
	AP7165	0.6	0.4	125	60 at 1KHz	5.5	ADJ 0.8V to 5V	-40 to +85	Thermal Shutdown Protection, Enable, Power-OK output	SOP-8L DFN3030-10
	AP7167	1.2	0.8	125	60 at 1KHz	5.5	ADJ 0.8V to 5V	-40 to +85	Thermal Shutdown Protection, Enable, Power OK Output	SOP-8L DFN3030-10

All data is subject to change. Please check our data sheets at www.diodes.com for updates.

Linear Regulators 3-1
