CORDI
ANSI
DIFLINE

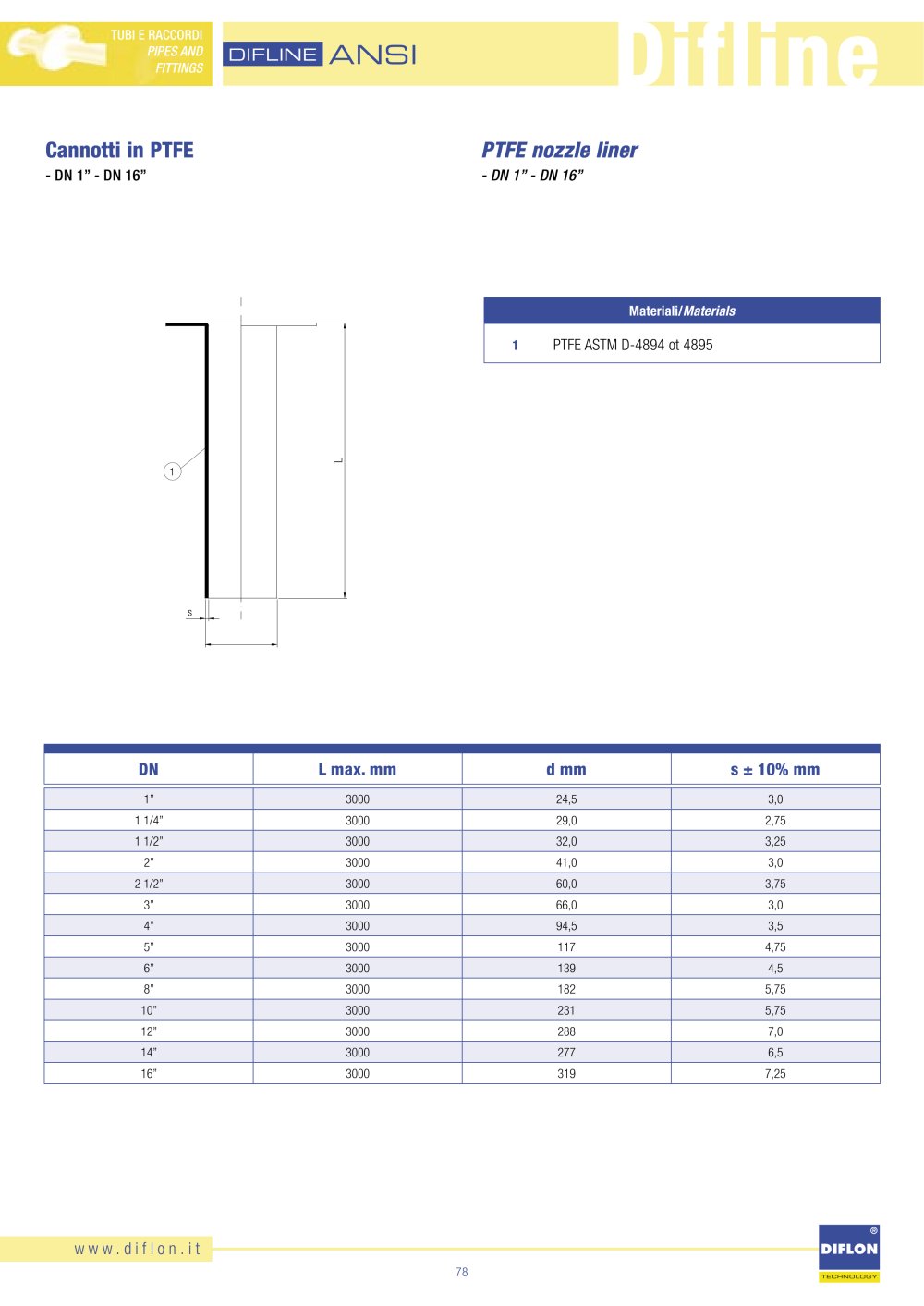

Cannotti in PTFE
- DN 1" - DN 16"
- DN 1" - DN 16"
Materiati/Materials
j 1 PTFE ASTM D-4894 ot 4895
DN
L max. mm
d mm
s ± 10% mm
1"
3000
24,5
3,0
1 1/4"
3000
29,0
2,75
1 1/2"
3000
32,0
3,25
2"
3000
41,0
3,0
2 1/2"
3000
60,0
3,75
3"
3000
66,0
3,0
4"
3000
94,5
3,5
5"
3000
117
4,75
6"
3000
139
4,5
8"
3000
182
5,75
10"
3000
231
5,75
12"
3000
288
7,0
14"
3000
277
6,5
16"
3000
319
7,25
