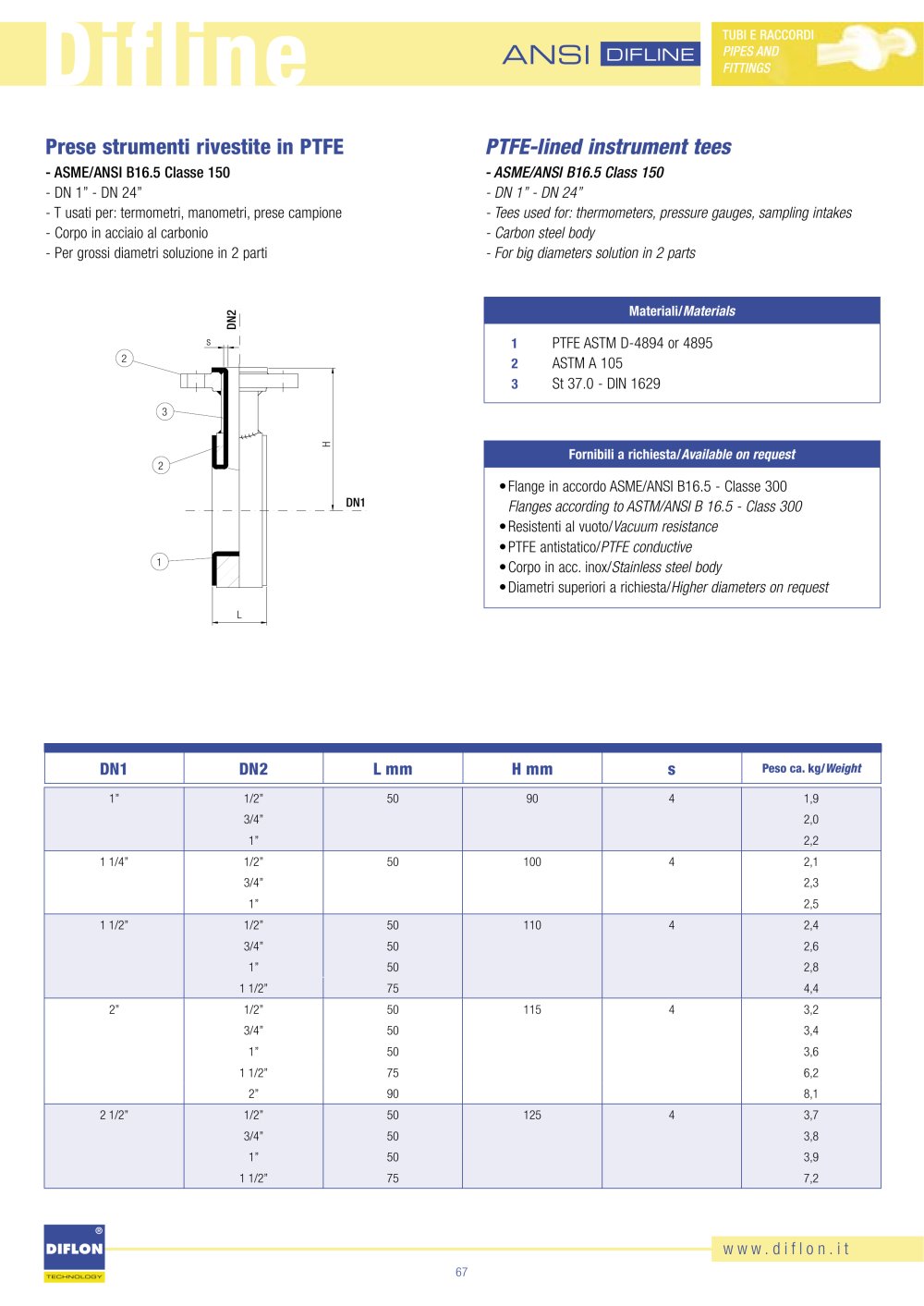

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | ANSI | | | | | | DIFLINE | | | | | | | | | | | | | | Prese strumenti rivestite in PTFE - ASME/ANSI B16.5 Classe 150 - DN 1" - DN 24" - T usati per: termometri, manometri, prese campione - Corpo in acciaio al carbonio - Per grossi diametri soluzione In 2 parti | | PTFE-lined instrument tees - ASME/ANSI B16.5 Class 150 - DN 1" - DN 24" - Carbon steel body - For big diameters solution in 2 parts | | | | | | | | | | Materiali/Materials | | | | | | | | | | 1 PTFE ASTM D-4894 or 4895 2 ASTMA 105 3 St 37.0 - DIN 1629 | | | | | | | | | | Fornibili a richiesta/j4i/a//aA/e on request | | | | | | | | | | •Industrial flange in accordo ASME/ANSI B16.5 - Classe 300 Flanges according to ASTM/ANSIB 16.5 - Class 300 • Resistenti al vuoto/ Vacuum resistance • PTFE antistatico/fTF/: conductive •Corpo in acc. Inox/'Stainless steel body • Diametri superiori a richiesta/Higher diameters on reduest | | | | | | | | | | | | | | | | | | | | | DN1 | DN2 | L mm | H mm | S | Peso ca. kg/Weight | | | | 1" | 1/2" | 50 | 90 | 4 | 1,9 | | | | | 3/4" | | | | 2,0 | | | | | 1" | | | | 2,2 | | | | 1 1/4" | 1/2" | 50 | 100 | 4 | 2,1 | | | | | 3/4" | | | | 2,3 | | | | | 1" | | | | 2,5 | | | | 1 1/2" | 1/2" | 50 | 110 | 4 | 2,4 | | | | | 3/4" | 50 | | | 2,6 | | | | | 1" | 50 | | | 2,8 | | | | | 1 1/2" | 75 | | | 4,4 | | | | 2" | 1/2" | 50 | 115 | 4 | 3,2 | | | | | 3/4" | 50 | | | 3,4 | | | | | 1" | 50 | | | 3,6 | | | | | 1 1/2" | 75 | | | 6,2 | | | | | 2" | 90 | | | 8,1 | | | | 2 1/2" | 1/2" | 50 | 125 | 4 | 3,7 | | | | | 3/4" | 50 | | | 3,8 | | | | | 1" | 50 | | | 3,9 | | | | | 1 1/2" | 75 | | | 7,2 | | | | | | | | | | | | | | | | | | | | | diflonI www.diflon.it TECHNOLOGY | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
