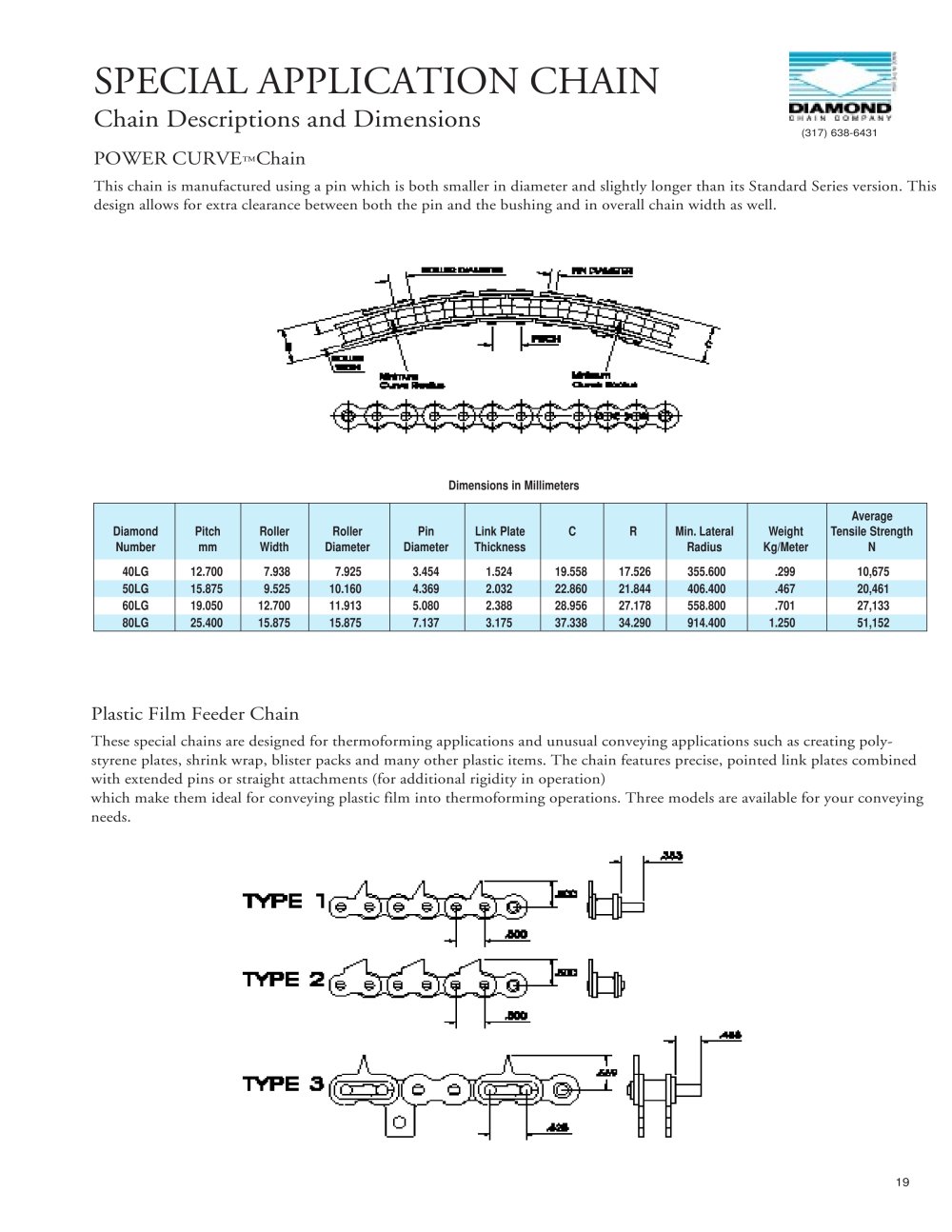

SPECIAL APPLICATION CHAIN

Chain Descriptions and Dimensions

(317) 638-6431

POWER CURVE™Chain

This chain is manufactured using a pin which is both smaller in diameter and slightly longer than its Standard Series version. This design allows for extra clearance between both the pin and the bushing and in overall chain width as well.

Dimensions in Millimeters

Diamond Number

Pitch mm

Roller Width

Roller Diameter

Pin

Diameter

Link Plate

Thickness

Min. Lateral Radius

Weight

Kg/Meter

Average Tensile Strength N

40LG

12.700

7.938

7.925

3.454

1.524

19.558

17.526

355.600

.299

10,675

50LG

15.875

9.525

10.160

4.369

2.032

22.860

21.844

406.400

.467

20,461

60LG

19.050

12.700

11.913

5.080

2.388

28.956

27.178

558.800

.701

27,133

80LG

25.400

15.875

7.137

3.175

37.338

34.290

914.400

1.250

51,152

Plastic Film Feeder Chain

These special chains are designed for thermoforming applications and unusual conveying applications such as creating polystyrene plates, shrink wrap, blister packs and many other plastic items. The chain features precise, pointed link plates combined with extended pins or straight attachments (for additional rigidity in operation)

which make them ideal for conveying plastic film into thermoforming operations. Three models are available for your conveying needs.

TYPE 1
