DIAMOND
CHAIN COMPANY

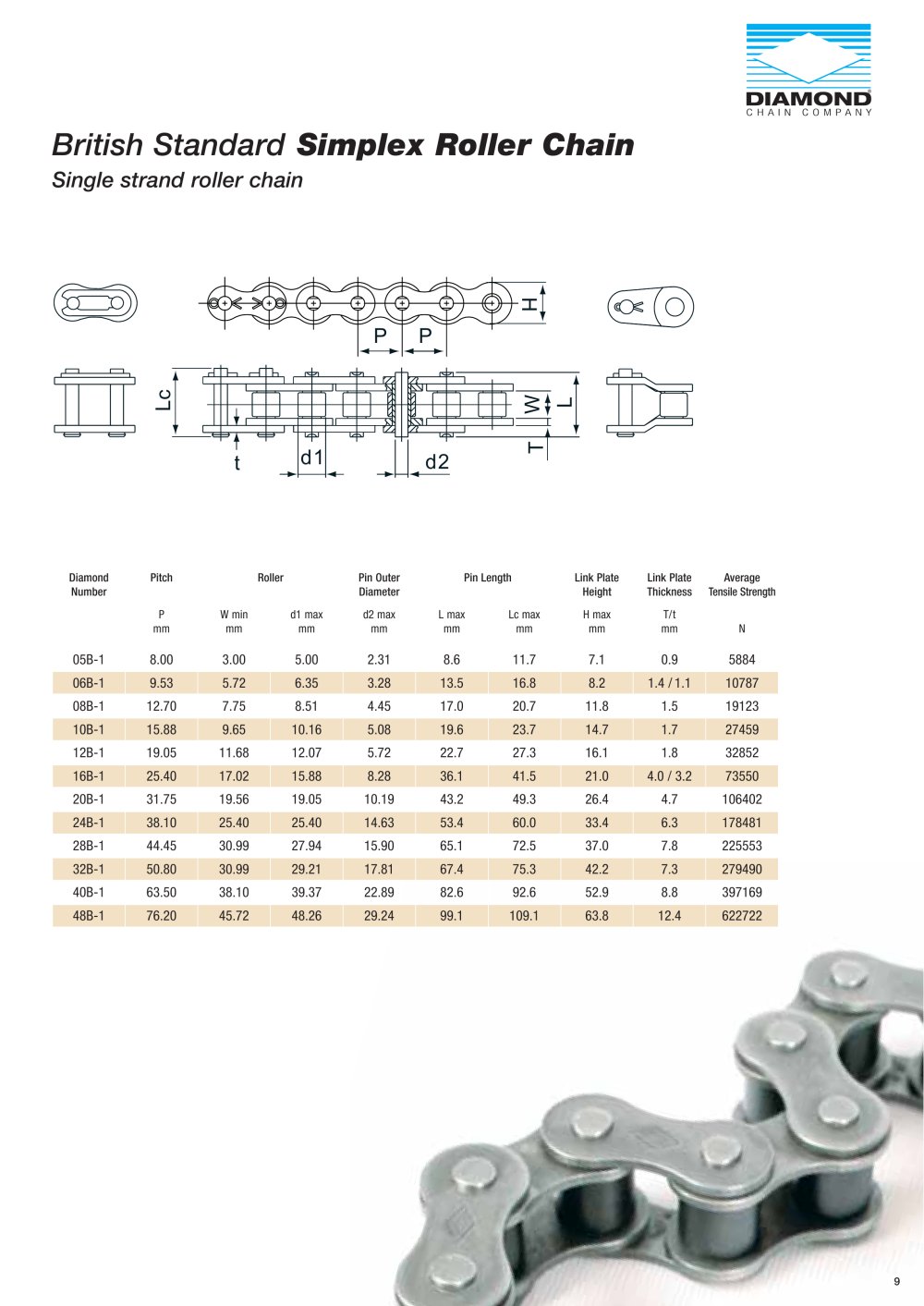

British Standard Simplex Roller Chain
Single strand roller chain
Diamond Number
Pitch
Roller
Pin Outer Diameter
Pin Length
Link Plate Height
Link Plate Thickness
Average Tensile Strength
P
mm
W min mm
d1 max mm
d2 max mm
L max mm
Lc max mm
H max mm
T/t mm
N
05B-1
8.00
3.00
5.00
2.31
8.6
11.7
7.1
0.9
5884
06B-1
9.53
5.72
6.35
3.28
13.5
16.8
8.2
1.4 /1.1
10787
08B-1
12.70
7.75
8.51
4.45
17.0
20.7
11.8
1.5
19123
10B-1
15.88
9.65
10.16
5.08
19.6
23.7
14.7
1.7
27459
12B-1
19.05
11.68
12.07
5.72
22.7
27.3
16.1
1.8
32852
16B-1
25.40
17.02
15.88
8.28
36.1
41.5
21.0
4.0 / 3.2
73550
20B-1
31.75
19.56
19.05
10.19
43.2
49.3
26.4
4.7
106402
24B-1
38.10
25.40
25.40
14.63
53.4
60.0
33.4
6.3
178481
28B-1
44.45
30.99
27.94
15.90
65.1
72.5
37.0
7.8
225553
32B-1
50.80
30.99
29.21
17.81
67.4
75.3
42.2
7.3
279490
40B-1
63.50
38.10
39.37
22.89
82.6
92.6
52.9
8.8
397169
48B-1
76.20
45.72
48.26
29.24
99.1
109.1
63.8
12.4
622722
