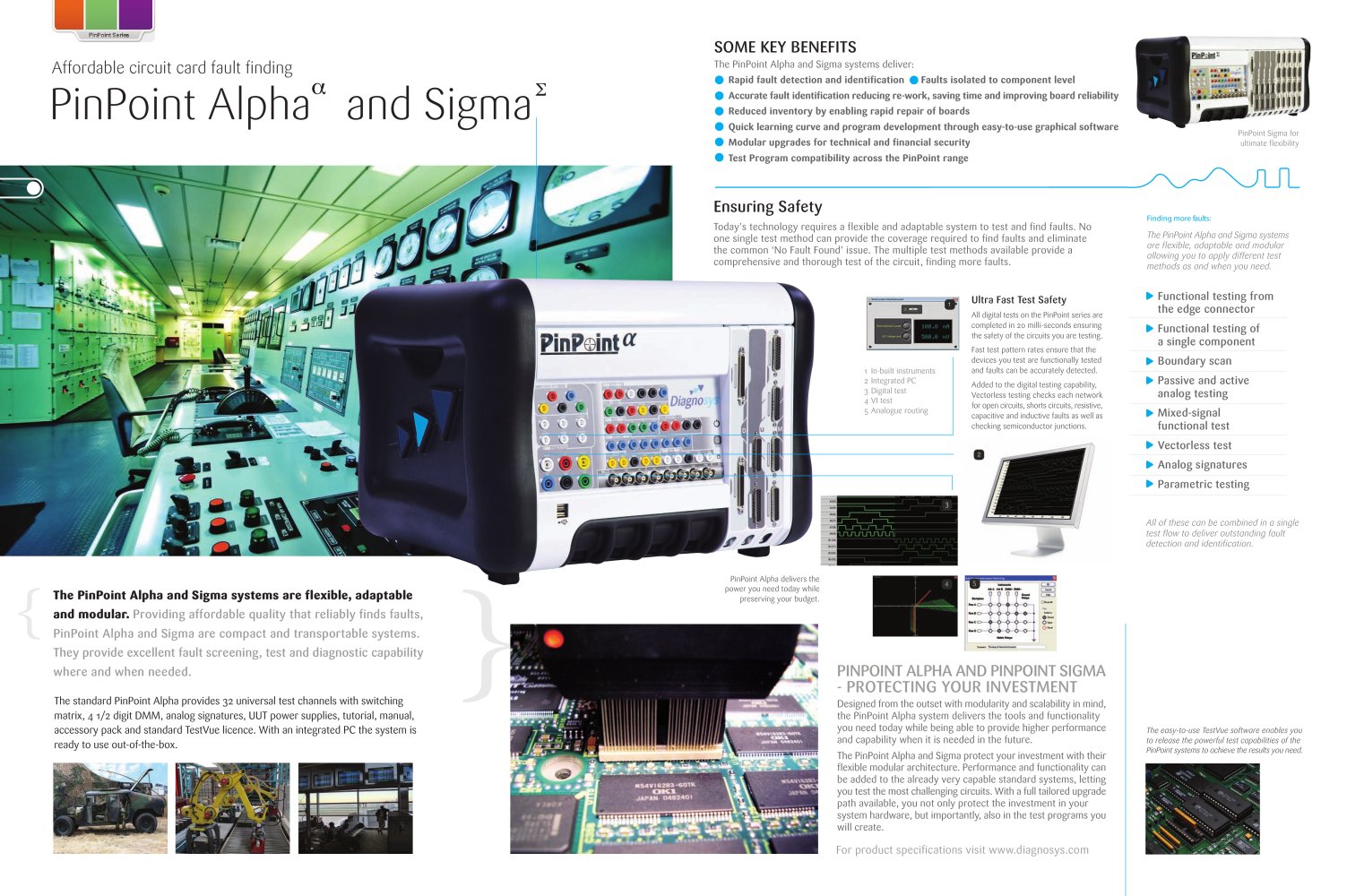

Alpha Sigma 6pp v.6 31/1/12 10:42 Page 4 C M Y CM MY CY CMY K SOME KEY BENEFITS Affordable circuit card fault finding PinPoint Alpha and Sigma The PinPoint Alpha and Sigma systems deliver: Rapid fault detection and identification Faults isolated to component level Accurate fault identification reducing re-work, saving time and improving board reliability Reduced inventory by enabling rapid repair of boards Quick learning curve and program development through easy-to-use graphical software PinPoint Sigma for ultimate flexibility Modular upgrades for technical and financial security Test Program compatibility across the PinPoint range 5 Ensuring Safety Today’s technology requires a flexible and adaptable system to test and find faults. No one single test method can provide the coverage required to find faults and eliminate the common ‘No Fault Found’ issue. The multiple test methods available provide a comprehensive and thorough test of the circuit, finding more faults. Ultra Fast Test Safety All digital tests on the PinPoint series are completed in 20 milli-seconds ensuring the safety of the circuits you are testing. 1 2 3 4 5 Fast test pattern rates ensure that the devices you test are functionally tested and faults can be accurately detected. In-built instruments Integrated PC Digital test VI test Analogue routing Added to the digital testing capability, Vectorless testing checks each network for open circuits, shorts circuits, resistive, capacitive and inductive faults as well as checking semiconductor junctions. Finding more faults: The PinPoint Alpha and Sigma systems are flexible, adaptable and modular allowing you to apply different test methods as and when you need. Functional testing from the edge connector Functional testing of a single component Boundary scan Passive and active analog testing Mixed-signal functional test Vectorless test Analog signatures Parametric testing All of these can be combined in a single test flow to deliver outstanding fault detection and identification. The PinPoint Alpha and Sigma systems are flexible, adaptable PinPoint Alpha delivers the power you need today while preserving your budget. 4 5 and modular. Providing affordable quality that reliably finds faults, PinPoint Alpha and Sigma are compact and transportable systems. They provide excellent fault screening, test and diagnostic capability where and when needed. PINPOINT ALPHA AND PINPOINT SIGMA - PROTECTING YOUR INVESTMENT The standard PinPoint Alpha provides 32 universal test channels with switching matrix, 4 1/2 digit DMM, analog signatures, UUT power supplies, tutorial, manual, accessory pack and standard TestVue licence. With an integrated PC the system is ready to use out-of-the-box. Designed from the outset with modularity and scalability in mind, the PinPoint Alpha system delivers the tools and functionality you need today while being able to provide higher performance and capability when it is needed in the future. The PinPoint Alpha and Sigma protect your investment with their flexible modular architecture. Performance and functionality can be added to the already very capable standard systems, letting you test the most challenging circuits. With a full tailored upgrade path available, you not only protect the investment in your system hardware, but importantly, also in the test programs you will create. For product specifications visit www.diagnosys.com Composite The easy-to-use TestVue software enables you to release the powerful test capabilities of the PinPoint systems to achieve the results you need.
