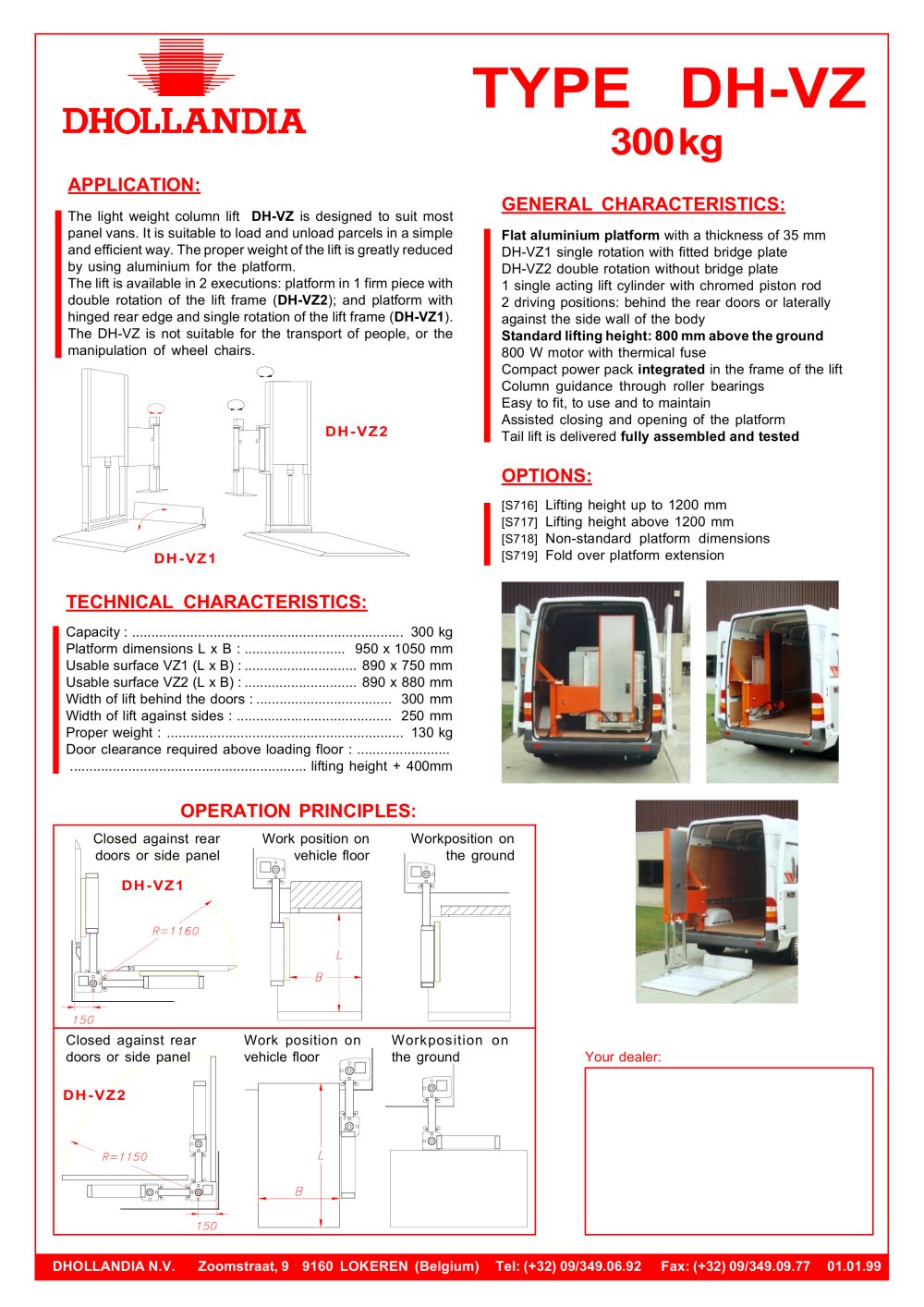

Tail lifts for vans > DH-VZ - Dhollandia - #1

Text version of the page

300 kg DH-VZ1 DH-VZ1 DH-VZ2 DH-VZ2 Flat aluminium platform with a thickness of 35 mm DH-VZ1 single rotation with fitted bridge plate DH-VZ2 double rotation without bridge plate 1 single acting lift cylinder with chromed piston rod 2 driving positions: behind the rear doors or laterally against the side wall of the body Standard lifting height: 800 mm above the ground 800 W motor with thermical fuse Compact power pack integrated in the frame of the lift Column guidance through roller bearings Easy to fit, to use and to maintain Assisted closing and opening of the platform Tail lift is delivered fully assembled and tested GENERAL CHARACTERISTICS: TYPE DH-VZ OPERATION PRINCIPLES: Capacity : ...................................................................... 300 kg Platform dimensions L x B : .......................... 950 x 1050 mm Usable surface VZ1 (L x B) : ............................. 890 x 750 mm Usable surface VZ2 (L x B) : ............................. 890 x 880 mm Width of lift behind the doors : ................................... 300 mm Width of lift against sides : ........................................ 250 mm Proper weight : ............................................................. 130 kg Door clearance required above loading floor : ........................ ............................................................. lifting height + 400mm TECHNICAL CHARACTERISTICS: APPLICATION: The light weight column lift DH-VZ is designed to suit most panel vans. It is suitable to load and unload parcels in a simple and efficient way. The proper weight of the lift is greatly reduced by using aluminium for the platform. The lift is available in 2 executions: platform in 1 firm piece with double rotation of the lift frame (DH-VZ2); and platform with hinged rear edge and single rotation of the lift frame (DH-VZ1). The DH-VZ is not suitable for the transport of people, or the manipulation of wheel chairs. [S716] Lifting height up to 1200 mm [S717] Lifting height above 1200 mm [S718] Non-standard platform dimensions [S719] Fold over platform extension OPTIONS: Your dealer: Closed against rear doors or side panel Work position on vehicle floor Closed against rear doors or side panel Work position on vehicle floor Workposition on the ground DHOLLANDIA N.V. Zoomstraat, 9 9160 LOKEREN (Belgium) Tel: (+32) 09/349.06.92 Fax: (+32) 09/349.09.77 01.01.99 Workposition on the ground
