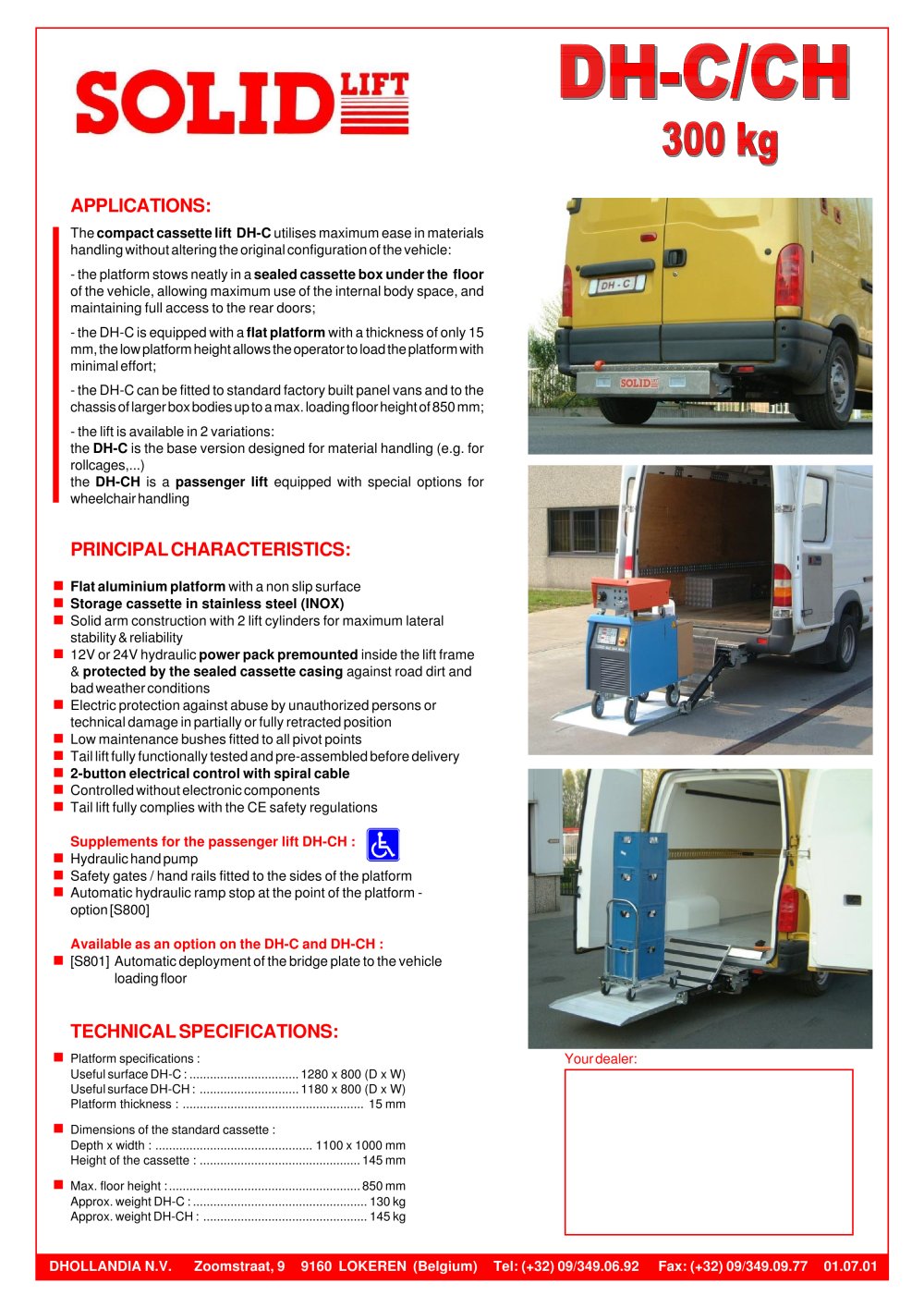

The compact cassette lift DH-C utilises maximum ease in materials
handling without altering the original configuration of the vehicle:
- the platform stows neatly in a sealed cassette box under the floor
of the vehicle, allowing maximum use of the internal body space, and
maintaining full access to the rear doors;
- the DH-C is equipped with a flat platform with a thickness of only 15
mm, the low platform height allows the operator to load the platform with
minimal effort;
- the DH-C can be fitted to standard factory built panel vans and to the
chassis of larger box bodies up to a max. loading floor height of 850 mm;
- the lift is available in 2 variations:
the DH-C is the base version designed for material handling (e.g. for
rollcages,...)
the DH-CH is a passenger lift equipped with special options for
wheelchair handling
.. Flat aluminium platform with a non slip surface
.. Storage cassette in stainless steel (INOX)
.. Solid arm construction with 2 lift cylinders for maximum lateral
stability & reliability
.. 12V or 24V hydraulic power pack premounted inside the lift frame
& protected by the sealed cassette casing against road dirt and
bad weather conditions
.. Electric protection against abuse by unauthorized persons or
technical damage in partially or fully retracted position
.. Low maintenance bushes fitted to all pivot points
.. Tail lift fully functionally tested and pre-assembled before delivery
.. 2-button electrical control with spiral cable
.. Controlled without electronic components
.. Tail lift fully complies with the CE safety regulations
Supplements for the passenger lift DH-CH :
.. Hydraulic hand pump
.. Safety gates / hand rails fitted to the sides of the platform
.. Automatic hydraulic ramp stop at the point of the platform -
option [S800]
Available as an option on the DH-C and DH-CH :
.. [S801] Automatic deployment of the bridge plate to the vehicle
loading floor
Your dealer:
PRINCIPAL CHARACTERISTICS:
APPLICATIONS:
TECHNICAL SPECIFICATIONS:
.. Platform specifications :
Useful surface DH-C : ................................ 1280 x 800 (D x W)
Useful surface DH-CH : ............................. 1180 x 800 (D x W)
Platform thickness : ..................................................... 15 mm
.. Dimensions of the standard cassette :
Depth x width : .............................................. 1100 x 1000 mm
Height of the cassette : ............................................... 145 mm
.. Max. floor height : ........................................................ 850 mm
Approx. weight DH-C : ................................................... 130 kg
Approx. weight DH-CH : ................................................ 145 kg
DHOLLANDIA N.V. Zoomstraat, 9 9160 LOKEREN (Belgium) Tel: (+32) 09/349.06.92 Fax: (+32) 09/349.09.77 01.07.01
